BIOSTAR Motherboard

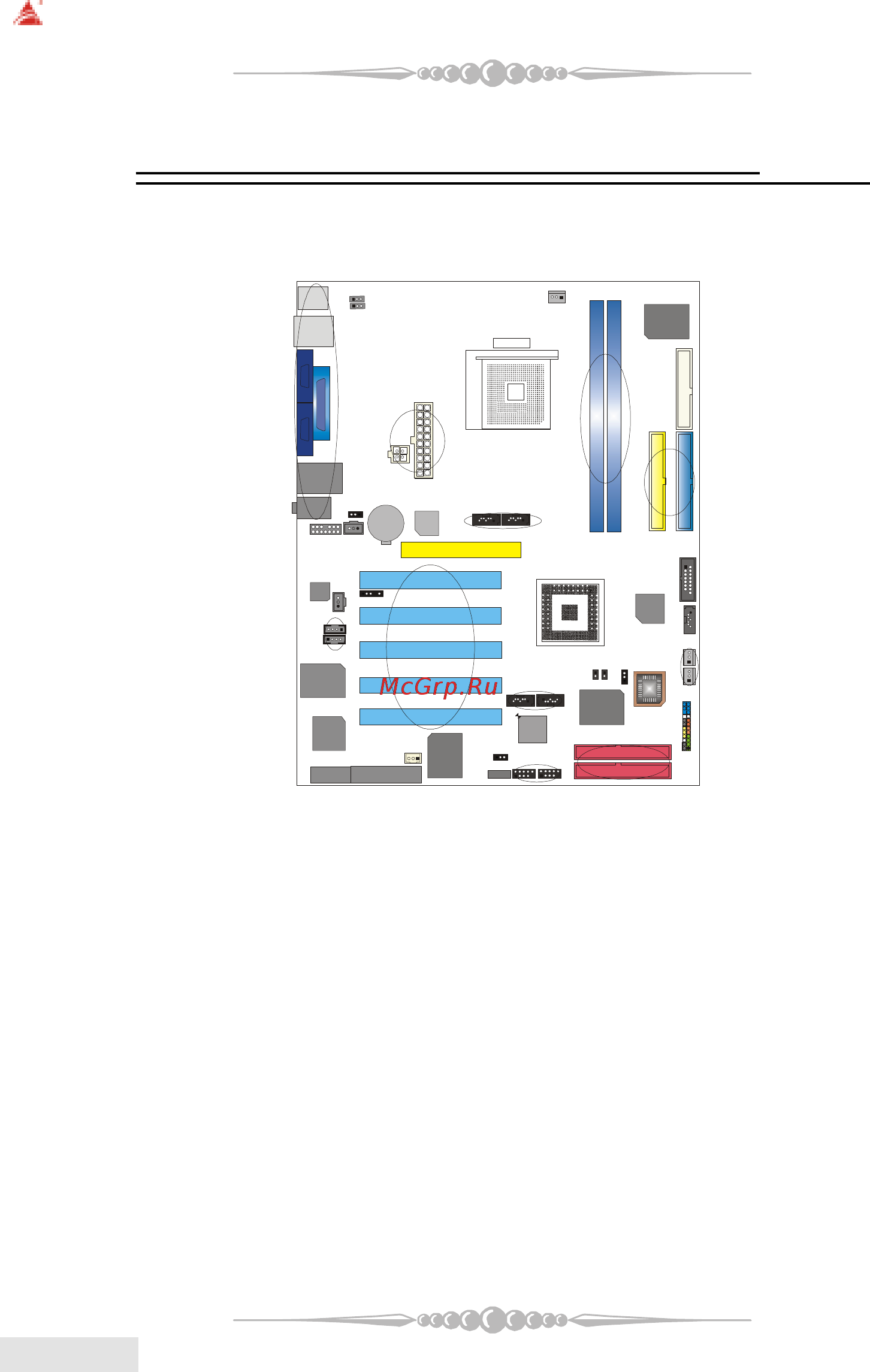

Section 2. Component Index

This section helps you to locate the components in the motherboard and to find

the details about them easily according to the mentioned pages.

A Back Panel Connectors (p. 19) B JKBMSV1: 5V/5VSB Selection for Keyboard/Mouse (p. 17)

C JUSBV1: 5V/5VSB Selection for J1394_USB1 (p. 16) D JATXPWR1-2: ATX Power Connector (p. 18)

E JUSBV2: 5V/5VSB Selection for JUSBLAN1 (p. 16) F JAUDIO1: Front Audio Header (p. 19)

G JSPDIF_IN: Digital Audio Connector (p. 18) H JSATA4-5: Serial ATA Connectors (p. 15)

I AGP1: Accelerated Graphics Port Slot (p. 14) J JSPDIF_OUT: Digital Audio Connector (p. 18)

K JDJ1: Audio DJ Connector (p. 19) L PCI1-5: Peripheral Component Interconnect Slots (p. 14)

M JCDIN1-2: CD-Rom Audio-In Header s (p. 17) N JWIRELESS1: Wireless LAN Slot (p. 13)

O CNR1: Communication Network Riser Slot (p. 14) P JWOL1: Wake On LAN Header (p. 16)

Q JUSBV3: 5V/5VSB Selection for JUSB1/2 (p. 16) R J1394A1: Front 1394A Header (p. 18)

S JUSB1-2: Front USB Headers (p. 15) T JSATA1-2: Serial ATA Connectors (p. 15)

U RAID1-2: IDE-RAID Connectors (p. 15) V JCI1: Case Open Connector (p. 16)

W J3: Flash Rom Read/Write Enable (optional) (p. 19) X JCMOS1: Clear CMOS Jumper (p. 15)

Y JPANEL1: Front Panel Connector (p. 17) Z JSFAN1-2: System Fan Header (p. 13)

A1 JSATA3: Serial ATA Connectors (p. 15) B1 JGAME1: Game Header (p. 16)

C1 IDE1-2: Hard Disk Connectors (p. 14) D1 DDR1-2: DDR DIMM Modules (p. 8)

E1 FDD1: Floppy Disk Connector (p. 14) F1 JCFAN1: CPU Fan Connector (p. 12)

BIOS

BAT1

VIA

VT6410

Socket 754

CPU1

N V ID IA

CODEC

R ealtek

RTL8180

6307

6420

SATA

B rid ge

Super

I/O

IT8712F

R T L

8201BL
