BIOSTAR Motherboard

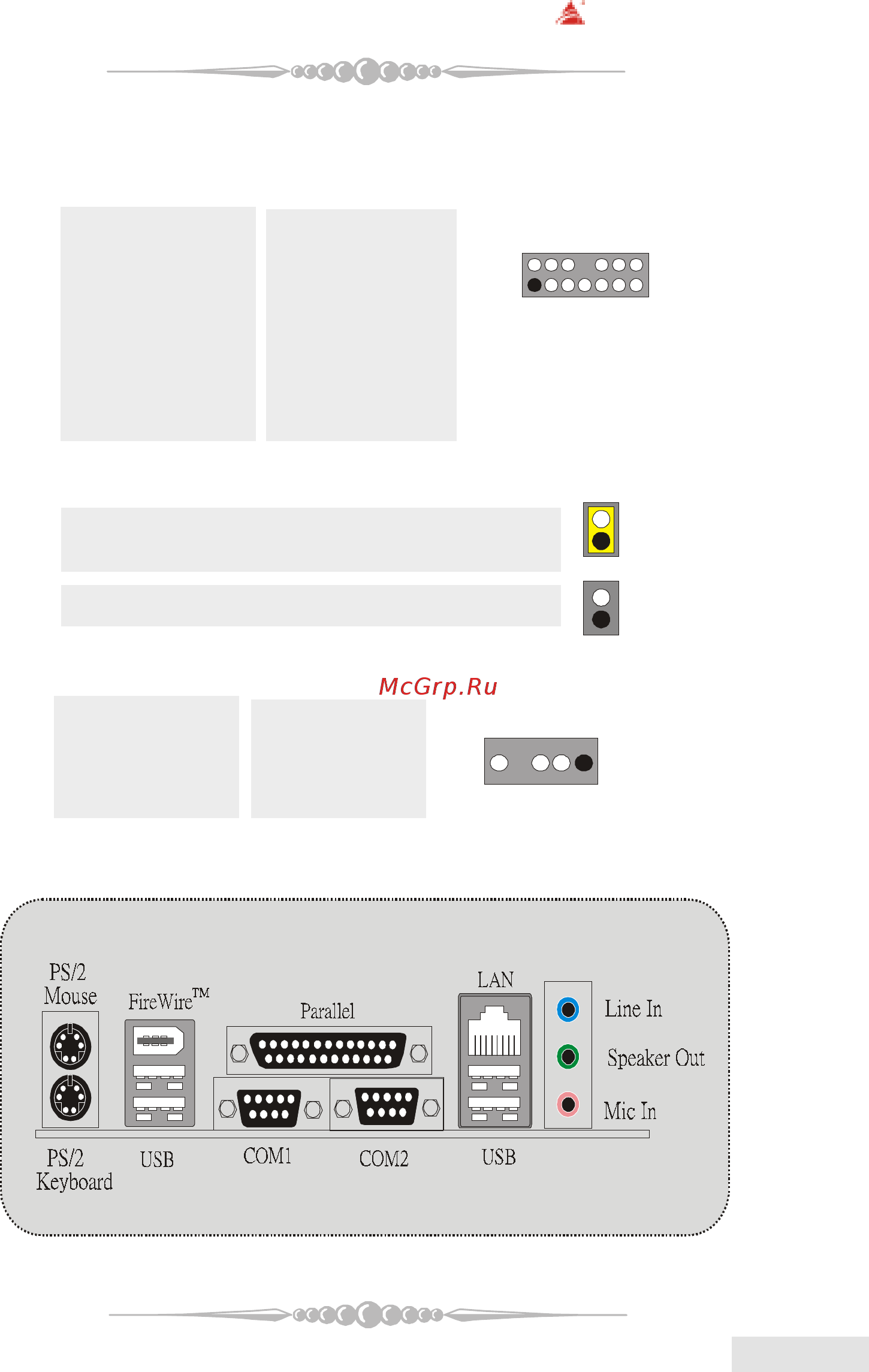

(20) Front Panel Audio Header: JAUDIO1
The connector allows you to connect to the front panel audio.
Pin Assignment Pin Assignment
1 Mic In 2 Ground
3 Mic Power 4 Audio Power
5 RT Line Out 6 RT Line Out
7 Reserved 8 Key
9 LFT Line Out 10 LFT Line Out
11 RT Line In 12 RT Line In
13 LFT Line In 14 LFT Line In
(21) Flash ROM READ/WRITE Enable : J3 (optional)
J3 Assignment
Pin1-2 open Enable the flash Rom to read and write.
Pin 1-2 close Disable the flash Rom to read and write.
(22) AUDIO DJ Connector: JDJ1 (optional)
Pin Assignment Pin Assignment
1 SMBDATA 2 SMBCLK
3 INT_B 4 KEY
5 ATX_PWROK
(23) Back Panel Connectors
1
2
14
13
1
5
1
