7. How to set up Jumpers?7. How to set up Jumpers?

7. How to set up Jumpers?

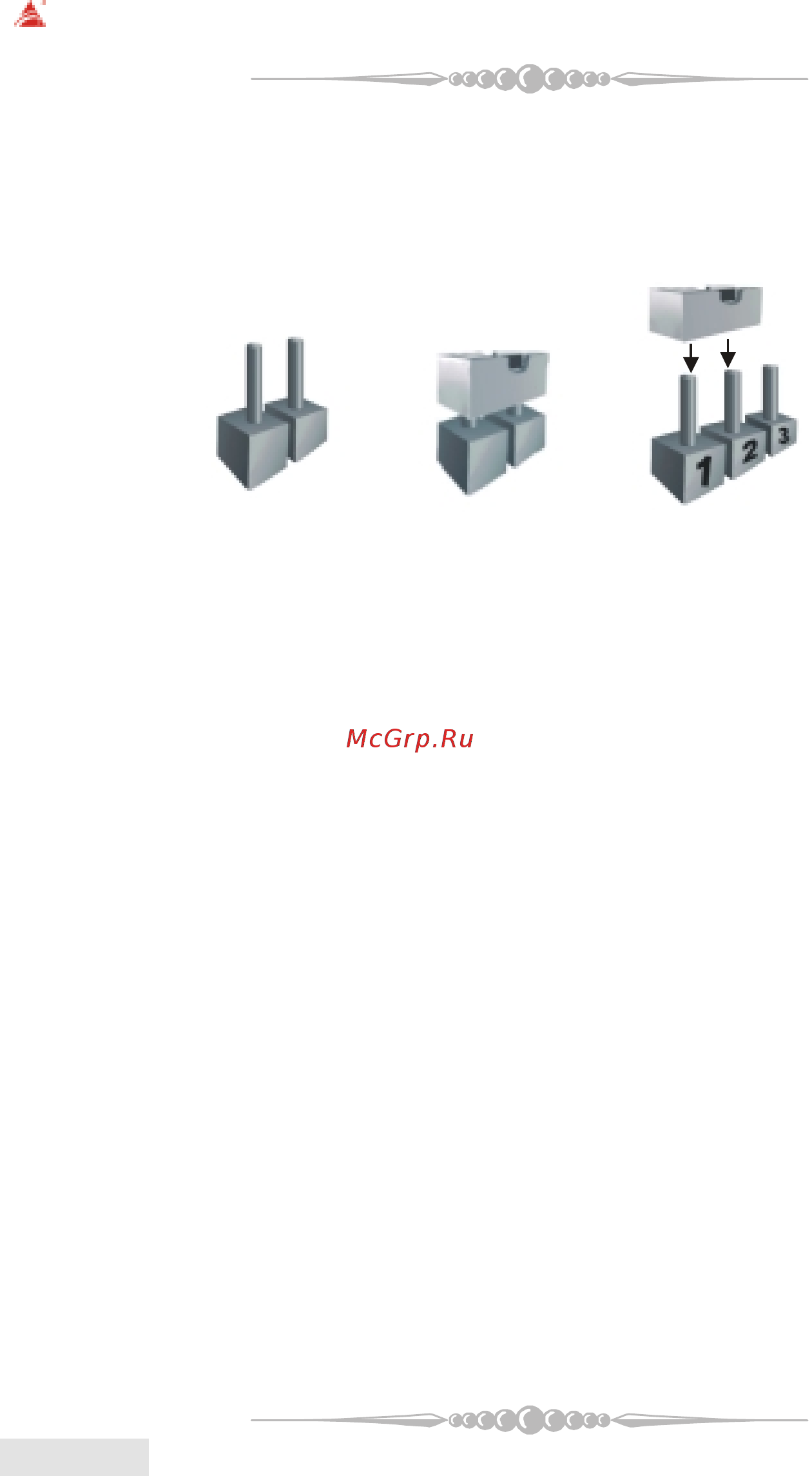

The illustration shows how to set up jumpers. When the Jumper cap is placed

on pins, the jumper is “close”. IF no jumper cap is placed on the pins, the jumper is

”open”. The illustration shows a 3-pin jumper whose pin1and 2 are “close” when

jumper cap is placed on these 2 pins.

Jumper open Jumper close Pin1-2 close

8. Jumpers, Headers, Connectors & Slots:8. Jumpers, Headers, Connectors & Slots:

8. Jumpers, Headers, Connectors & Slots:

(1) Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that supports

360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector

supports the provided floppy drive ribbon cables.

(2) Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO

Mode 0~4, Bus Master, and Ultra DMA 33/ 66/ 100/ 133 functionality. It has

two HDD connectors IDE1 (primary) and IDE2 (secondary).

The IDE connectors can connect a master and a slave drive, so you can connect

up to four hard disk drives. The first hard drive should always be connected to

IDE1.

(3) Peripheral Component Interconnect Slots: PCI1-5

This motherboard is equipped with 5 standard PCI slots. PCI stands for Pe-

ripheral Component Interconnect, and it is a bus standard for expansion cards.

This PCI slot is designed as 32 bits.

(4) Accelerated Graphics Port Slot: AGP1

Your monitor will attach directly to that video card. This motherboard sup-

ports video cards for PCI slots, but it is also equipped with an Accelerated

Graphics Port (AGP). An AGP card will take advantage of AGP technology to

improve video efficiency and performance, especially with 3D graphics.

(5) Communication Network Riser Slot: CNR1

The CNR specification is an open Industry Standard Architecture, and it de-

fines a hardware scalable riser card interface, which supports modem only.
