PLANET Mesh Network Manager Guide
2) Port
• The port number to be used by the SSH service
• Data Type: Integer, in the range of 1 and 65535
• Default value: 22
5.3.1.29 Services > WME

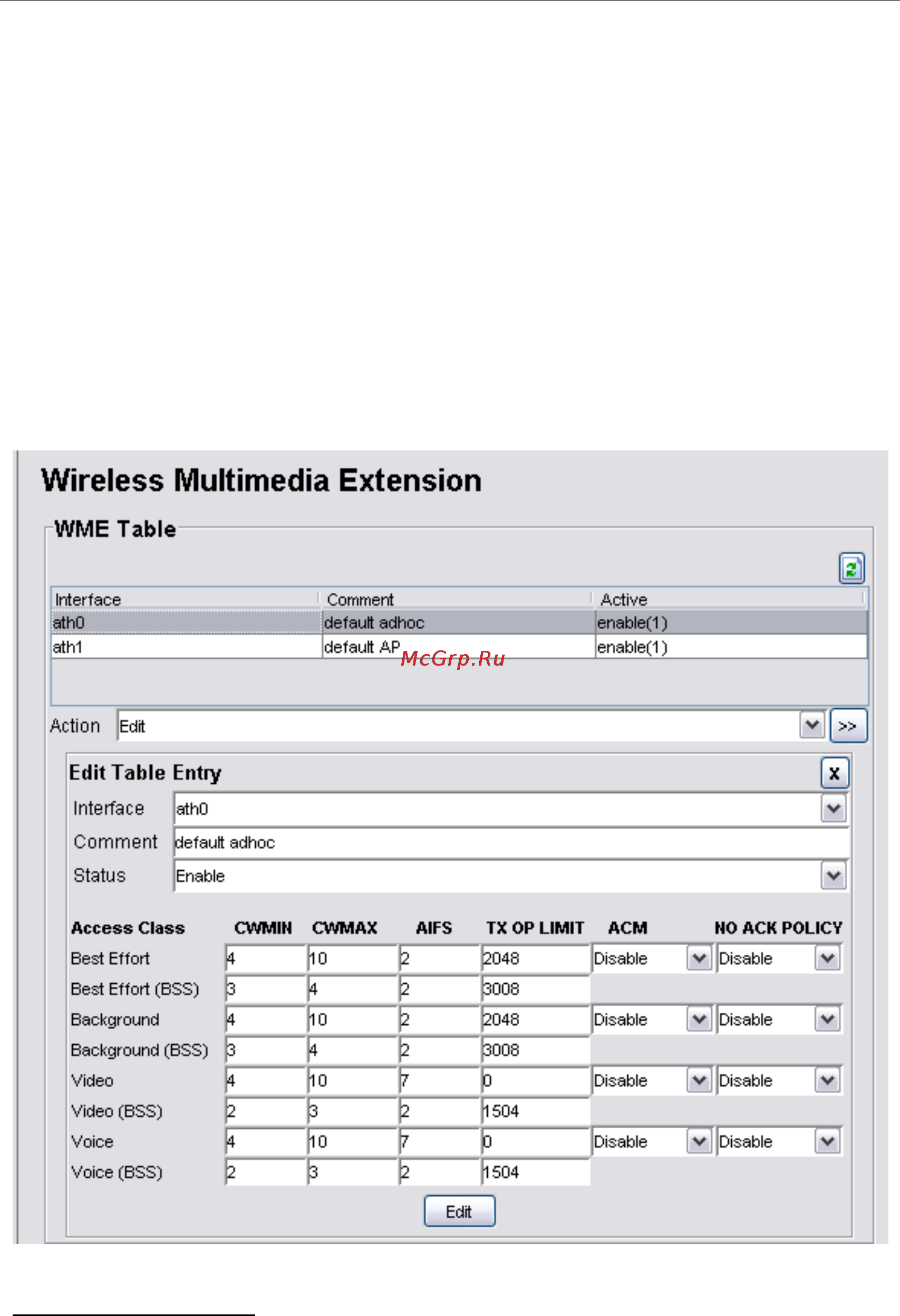

This page allows administrator to define the wifi multimedia QoS settings for each wireless
interface. WME defines eight categories: best effort, background, video and voice, with and
without BSS (Basic Service Set) mode.
Parameters (WMM Table)
1) Interface
• The available wireless interfaces in the system
PLANET Mesh Network Manager Guide
Page111 of 124
