PLANET Mesh Network Manager Guide

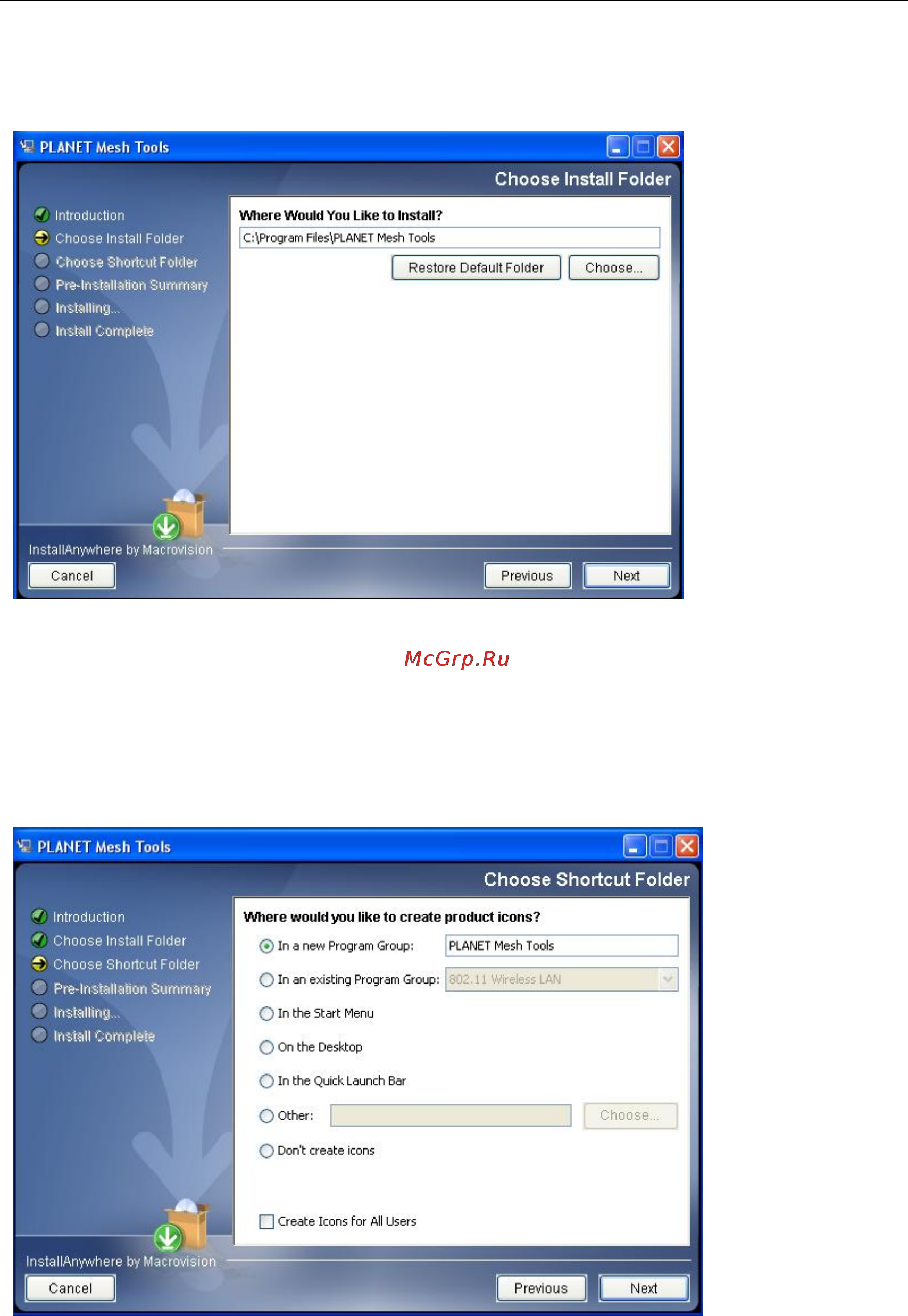

3.1.2 Choose Install Folder
Prompt user to choose the install path (directory) and name the install folder. Press Next to
proceed.
3.1.3 Choose Shortcut Folder
Specify where the software shortcut will be created at. Press Next to proceed.
PLANET Mesh Network Manager Guide
Page9 of 124
