PLANET Mesh Network Manager Guide
The automatic refresh feature of the client properties panel enable the admin uses the live
information regarding the clients associated to the Mesh AP unit discovered by the NMS. The
panel will be refreshed once per minute. On the other hand, if user wishes to refresh the
panel manually, simply click the Refresh button at the bottom of the panel. While the
downloading is in progress, the buttons will be replaced by a progress bar, showing the status
of the process. The NMS will download the information from every single node in the target
map discovered. To stop the scan, simply hit on the Stop button. The Target Map column
displays the name of the map where the client panel is scanning.

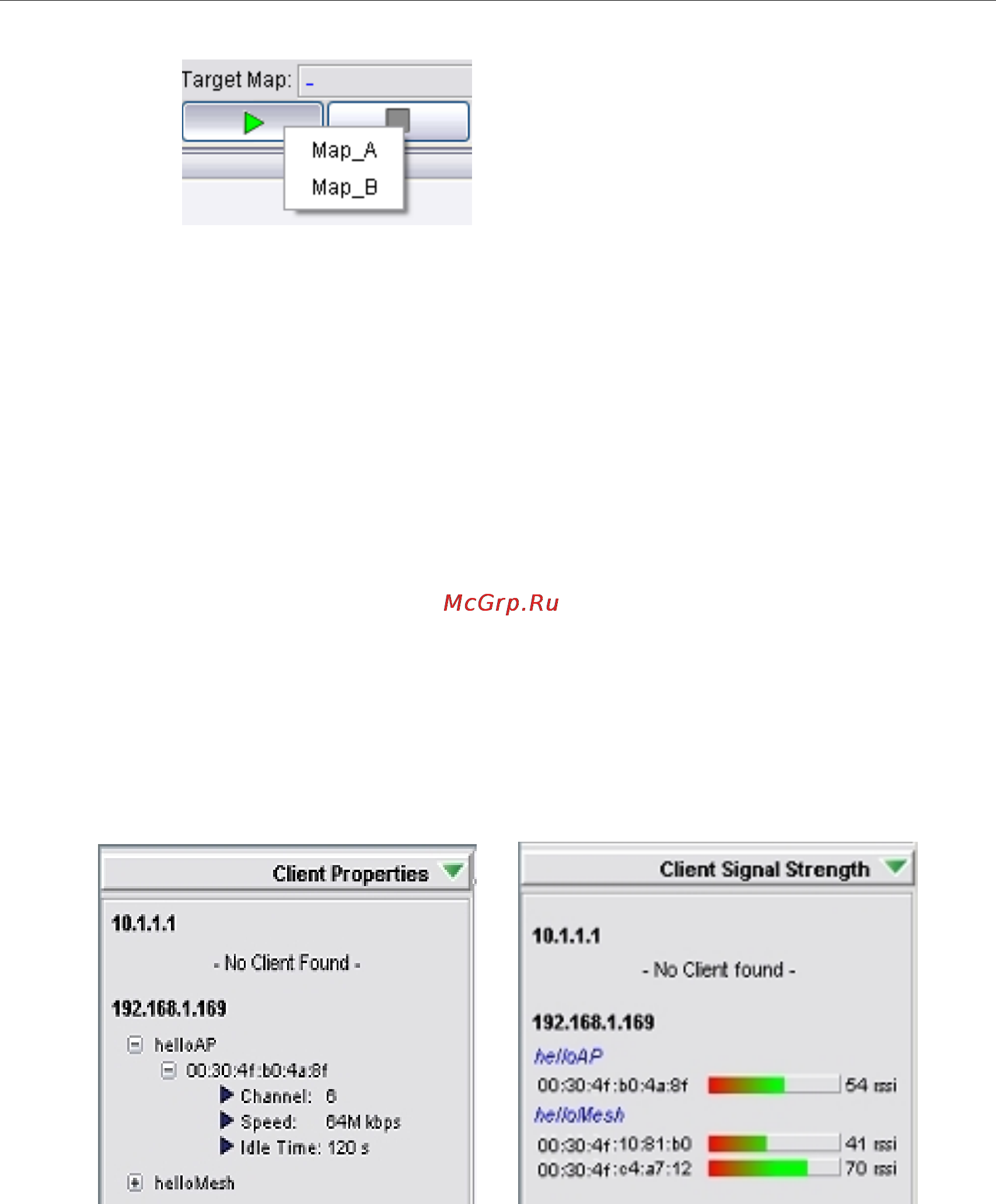

The panel is divided into two portions, the Client Properties and Client Signal Strength. The
Client Properties portion display the details regarding the client, for instance the MAC Address,
channel number, link speed and the idle time. In the case if there is no client associated to
the AP, a message “No Client Found” will be displayed instead.
On the other hand, the Client Signal Strength panel displays the signal strength of the clients
associated to the AP, in the unit of rssi. Similarly, if there is no client associated to the AP, a
message “No Client Found” will be shown.
4.2.3.22 Get/Set using MIB Reader
This section describes briefly about the usage of the MIB Reader of the PLANET Mesh
Network Management Tools.
