PLANET Mesh Network Manager Guide

Note

Please make sure your Layer 2 Mesh Nodes are pre-configured for this MnM

installed PC. Otherwise, MnM can not display your Mesh nodes in the map also

cannot show the correct information at the mean time. Please also refer to Web

guide section 3.5.10 for more.

4.2.3.2 Open Map

In stead of create a brand new topology map, user can re-open the map profile that has been

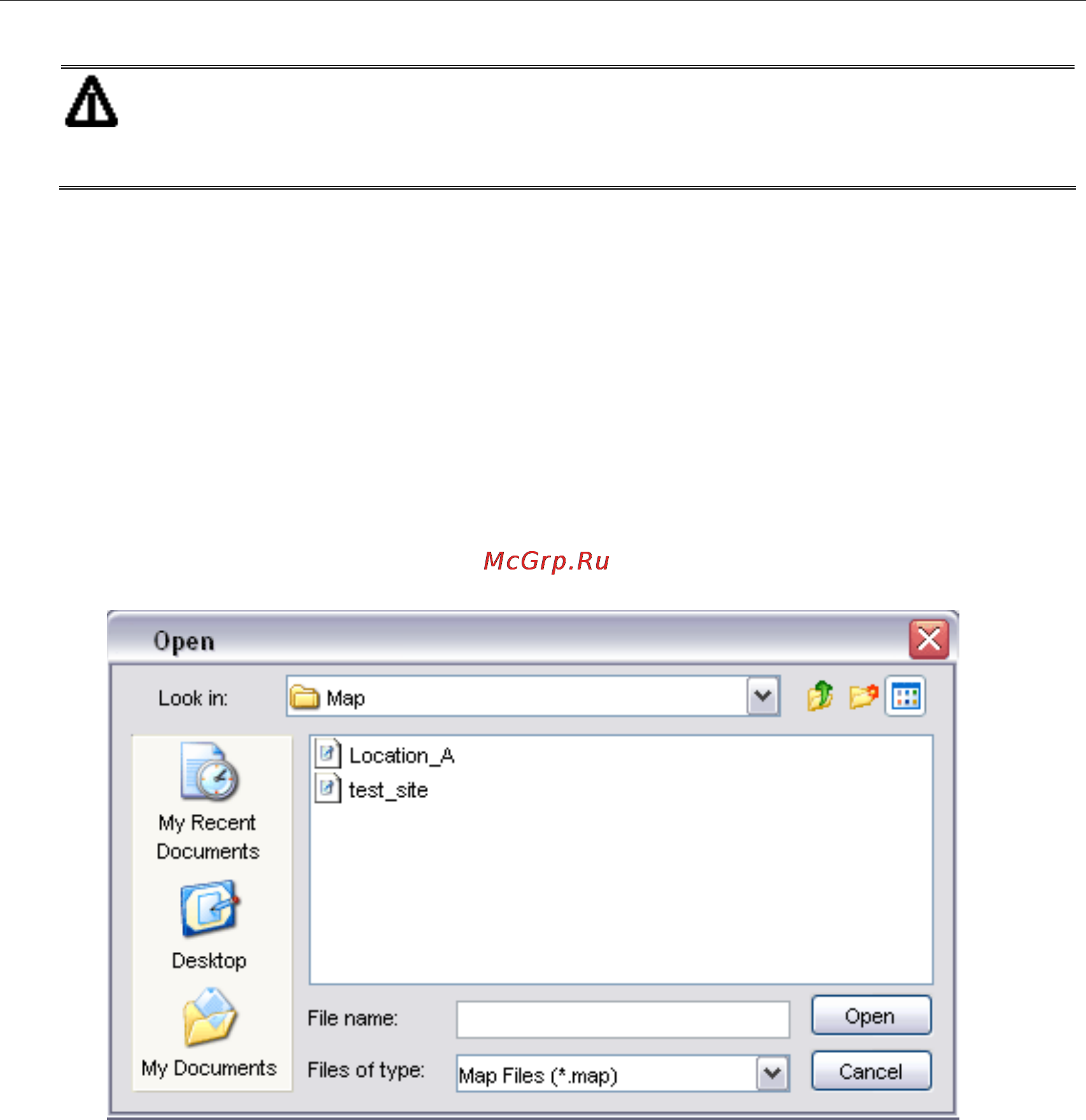

saved previously. Click the Open Map button, or select File > Open Map from menu bar, a

file chooser window would appear on the screen, to prompt user to choose a map. Select the

desired one, and hit the Open button. The profile will be loaded to the NMS with all its

settings.

4.2.3.3 Save Map

As mentioned previously, the settings of the map profile can be saved to be loaded in the

future. Details of the map, for instance, the coordinate and SNMP passwords of the Mesh AP

units on the map, background image and block list, will be saved as a setting file.

In order to save a profile, select the Save Map button or File > Save Map from the map

container toolbar of that particular map profile you wish to save. Note that if user is trying to

save a map profile that has a same name as one of the existing profile, a warning message

would appear to get confirmation from the user to overwrite the file. To proceed with the action,

click the OK button.
