PLANET Mesh Network Manager Guide

As you can see from the figures, the customization can be divided to two parts, the Node and

the Link. At the Node part, user may select the icon that need to be updated, and then fill in

the path of the new image (or click the “…” button to choose from the file chooser window).

Hit the Update button to update the new image icon. Besides, user can also decide whether

to show the indication of the AP-unit, which is the IP Address, by using the available

checkbox; and alter the foreground color of the IP Address using the “…” button to select a

desired color from the popup window. Hit the Save & Apply Changes button to commit the

changes. The Use Default button enables the user to restore the default settings of the AP

unit look and feel.

Meanwhile, in order to change the style of the link, switch the Map Customization Tool to the

Link page. User can change the color by hitting the “…” button to select a desired color from

the popup window. Then key in the thickness of the link and its dashing pattern. The dashing

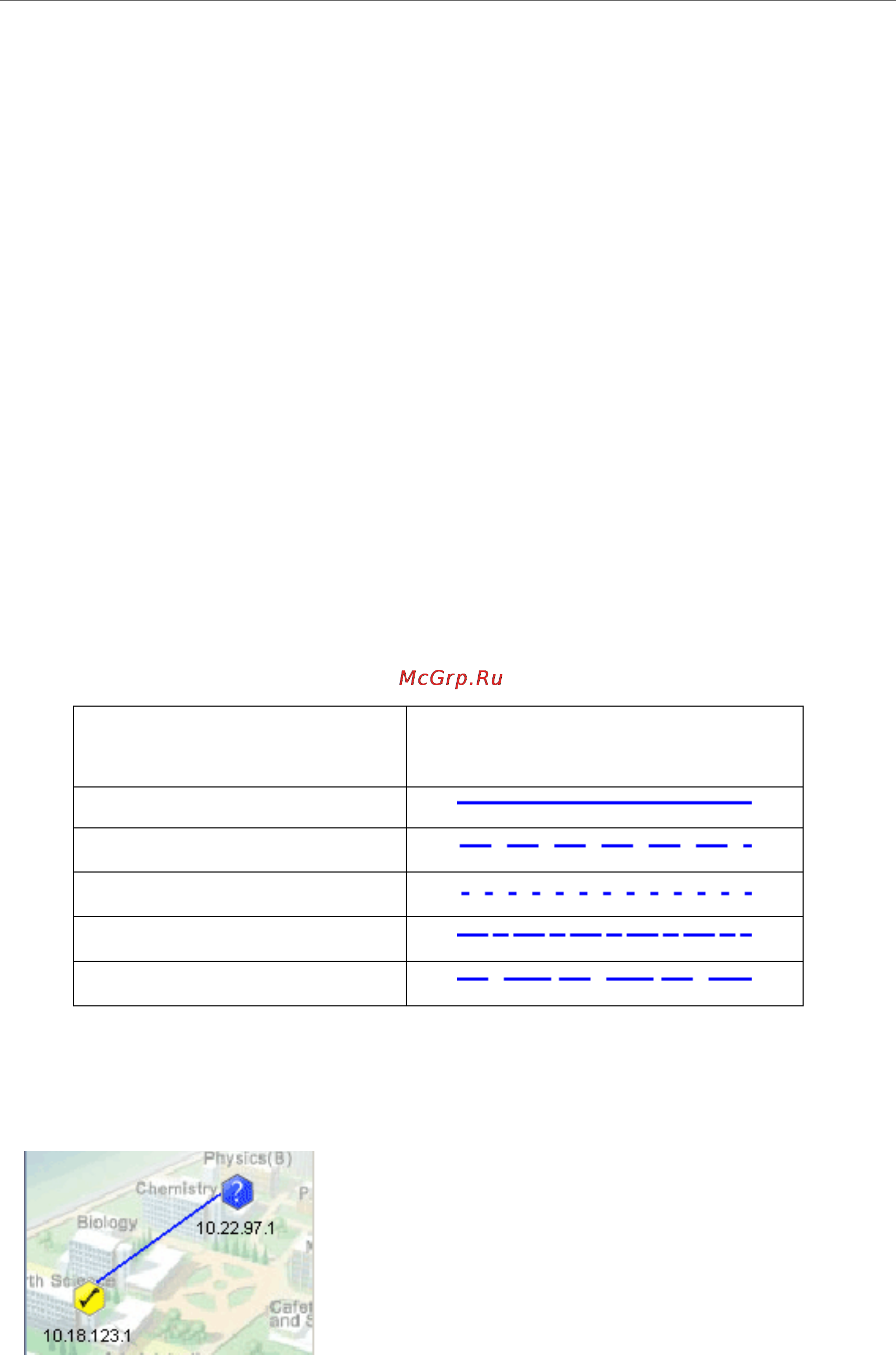

pattern defines the way the dashed link look like. The following table explains how to use the

dashing pattern. After fill in the data, user may click the Update button to update the image at

the preview. Once confirm the changes, select the Save & Apply Changes button to commit

the change.

Pattern

(line1, space1, line2,

space2)

Preview

20, 0, 0, 0

20, 10, 20, 10

5, 10, 5, 10

20, 3, 10, 3

20, 10, 30, 5

Here is an example to show the effect of the map customization.

a) The original map
