PLANET Mesh Network Manager Guide
4) Comment
• An optional comment regarding the selected table entry
• Data type: Display String
5) Active
• The status of the selected table entry, either active or inactive

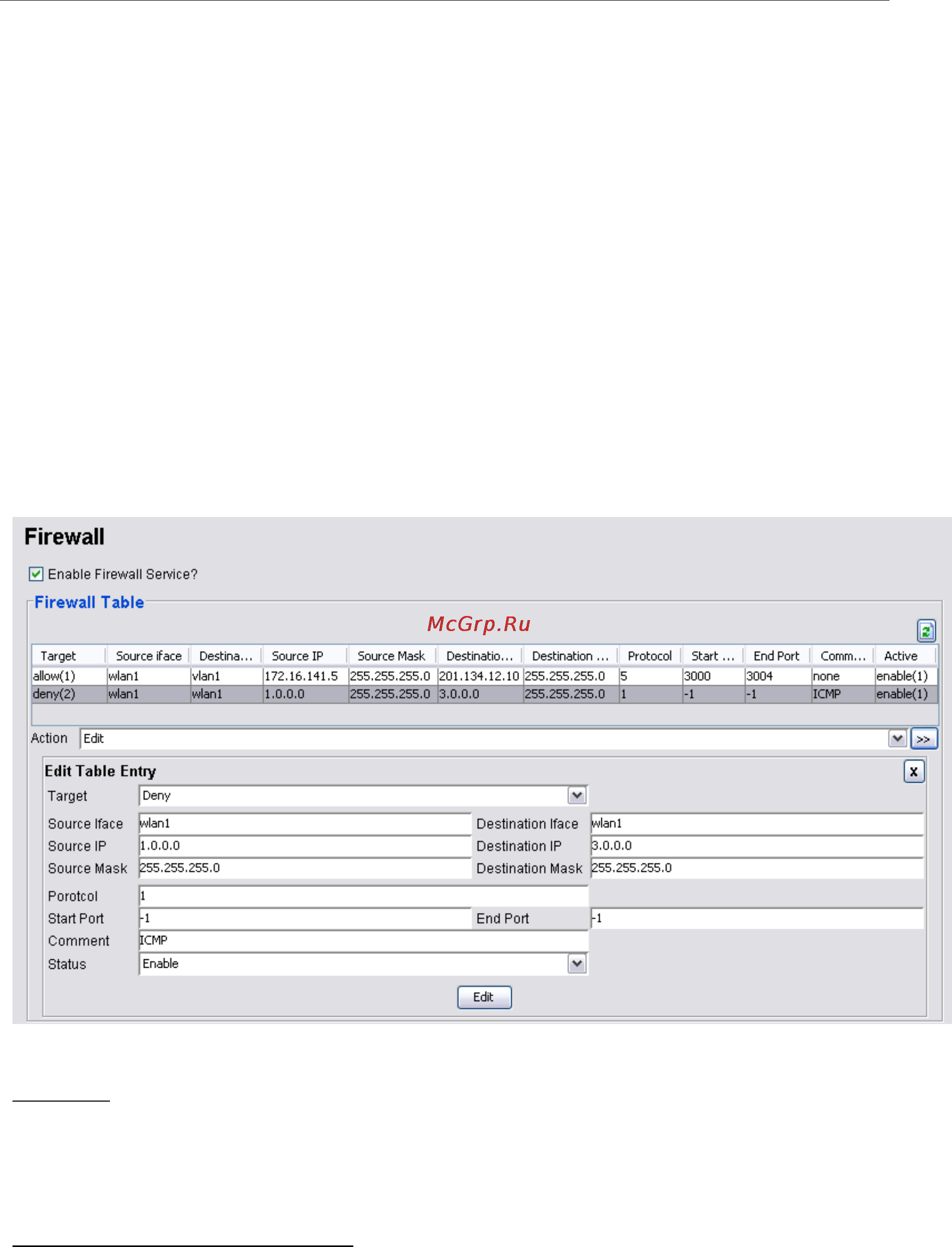

5.3.1.17 Services > Firewall
The Firewall service is the security feature that included in the Mesh AP to limit certain type of
traffic. User can define and add a firewall rule through this configuration page.
Parameter
1) Enable Firewall Service
• A checkbox to enable or disable the firewall service
Parameters (Firewall Table columns)
1) Target
• Define the type of the firewall rule, allow or deny the traffic
2) Source Iface
• The source interface of the firewall rule.
• Data type: Octet String
PLANET Mesh Network Manager Guide
Page96 of 124
