PLANET Mesh Network Manager Guide

5) Direct

• Select the type of routing, either direct or indirect.

• Direct type using device, whereas indirect is using the two hope gateway

6) Comment

• An optional comment regarding the route table entry

• Data type: Display String

7) Status

• Specify the status of the route entry, enable or disable.

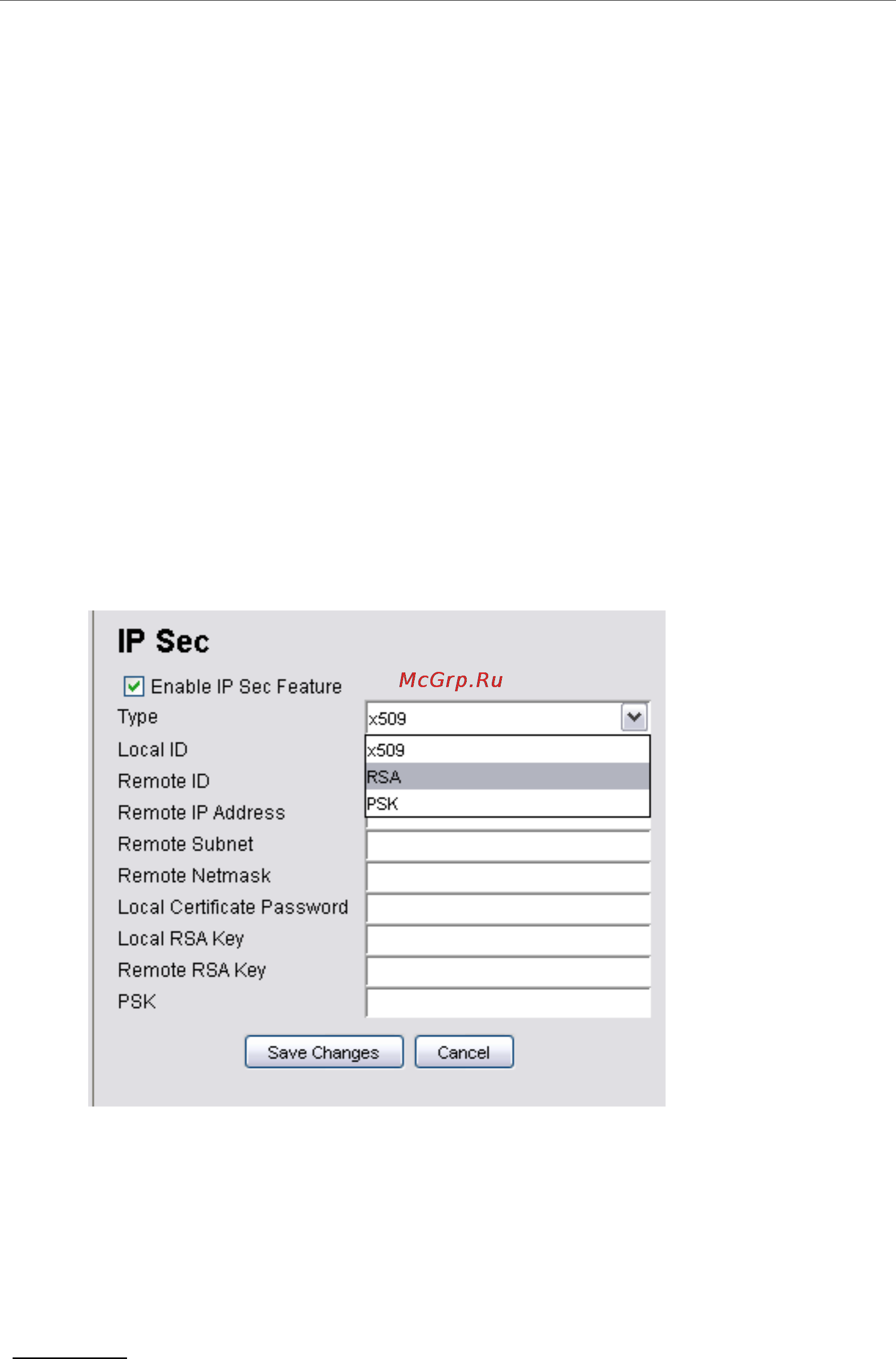

5.3.1.10 Network > IP Sec

The IP Sec configuration page enable user to alter the setting of the IP Security Protocol. With

IPSec, a security “tunnel” is created between the source and destination point, allow the

packet to be sent through the “tunnel”. In this page, user can define the characteristics,

including the certificate key and RSA key, of the tunnel.

Parameters:

1) Enable IP Sec

• A checkbox to enable or disable the IPSec service.

PLANET Mesh Network Manager Guide
