PLANET Mesh Network Manager Guide

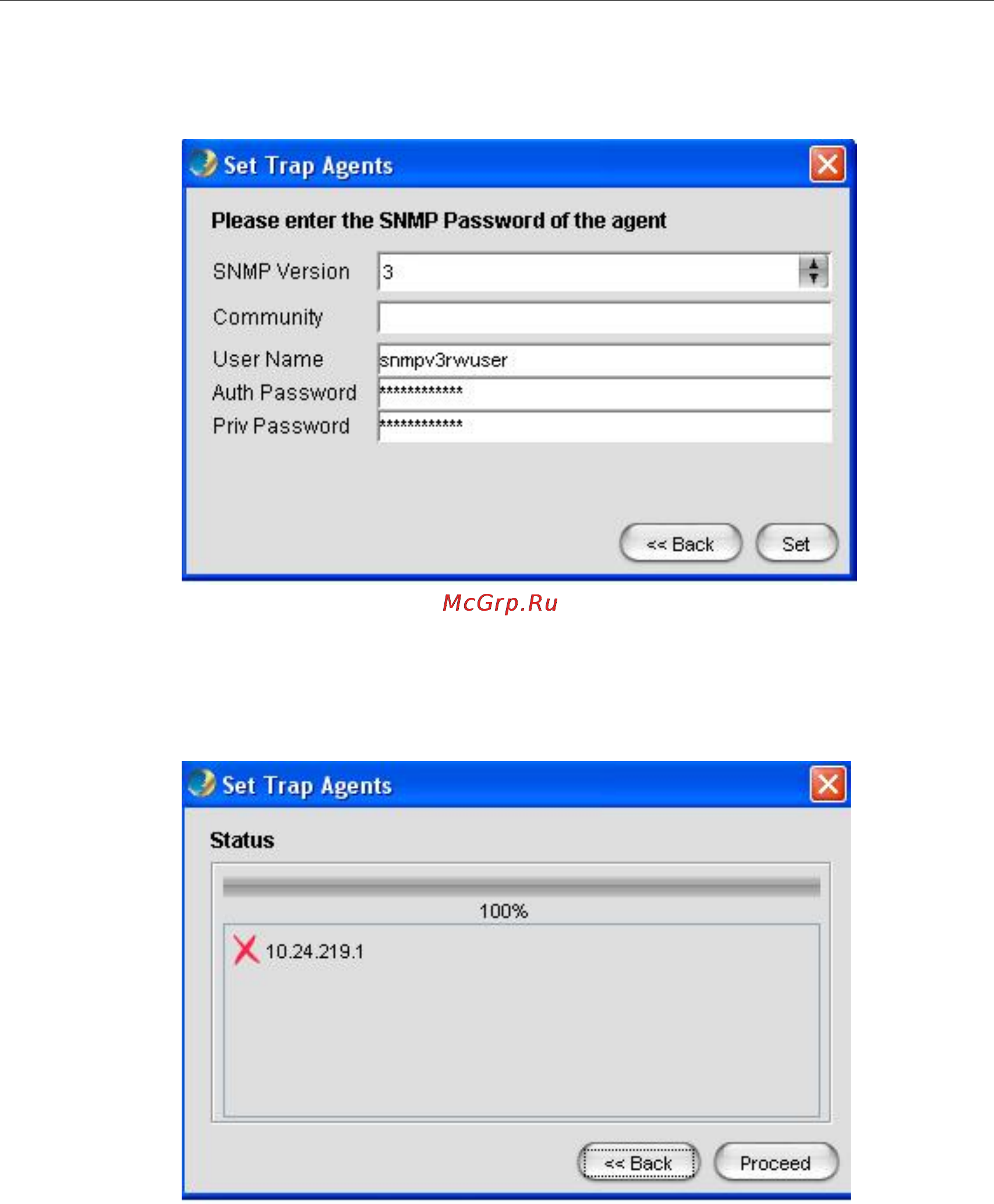

Then, enter the required SNMP keywords, such as version and community. Click Set to
proceed or Back to back to the first step.
Once the configuration is done, click Proceed button to proceed to reboot page, or Back to
the previous page.
If Proceed is pressed, the following page will be displayed. User may select the IP Address of
the node configured just now to be rebooted. In case if user is wished to reboot the device
manually afterwards, click Reboot Later. On the other hand, hit the Reboot now & Close
button to start reboot the devices.
PLANET Mesh Network Manager Guide
Page47 of 124
