PLANET Mesh Network Manager Guide

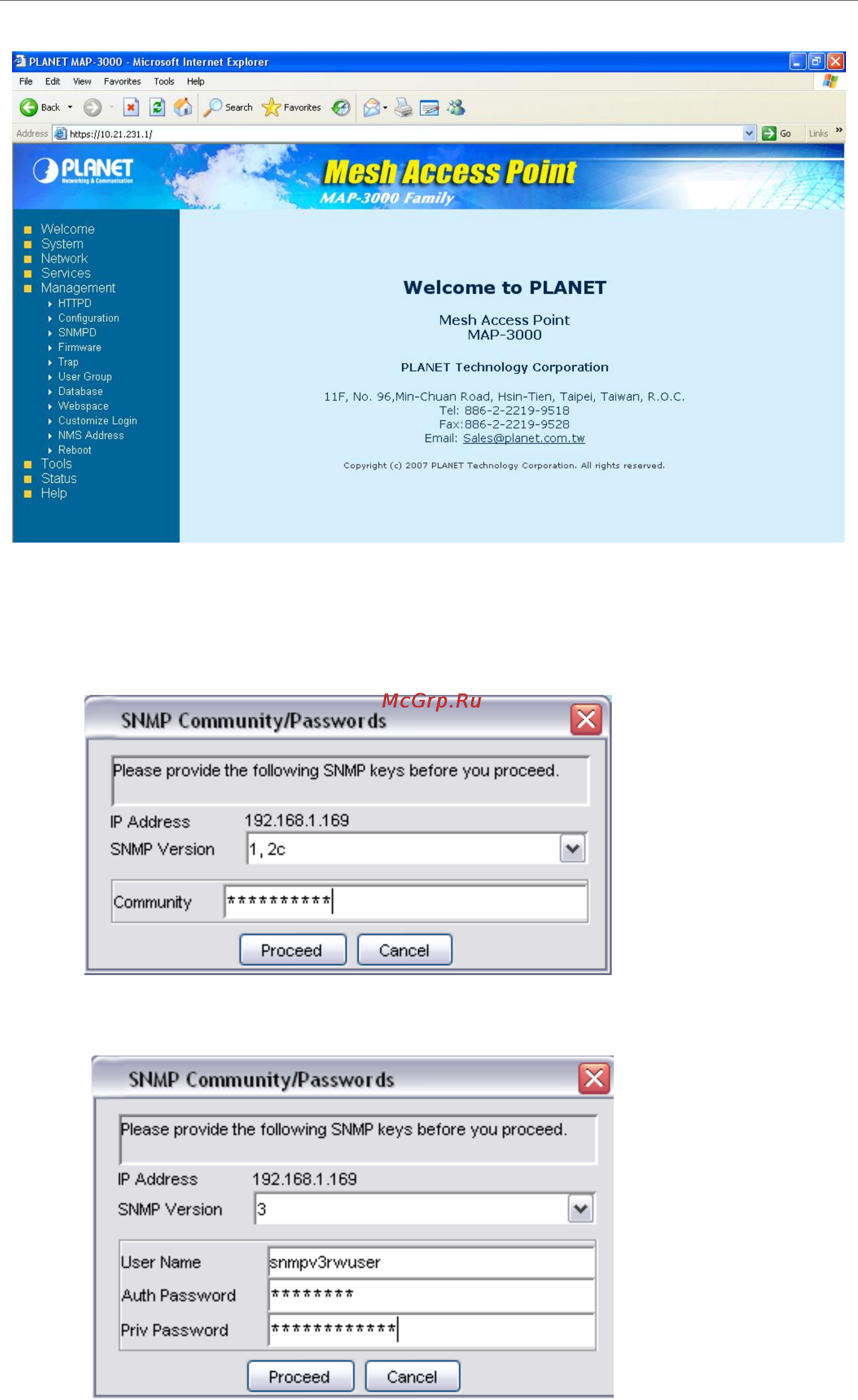

If the AP Configurator is selected instead, a window would appear to prompt user for the
SNMP password and community, as shown:
(Version 1 and 2C)
(Version 3)
PLANET Mesh Network Manager Guide
Page57 of 124
