PLANET Mesh Network Manager Guide

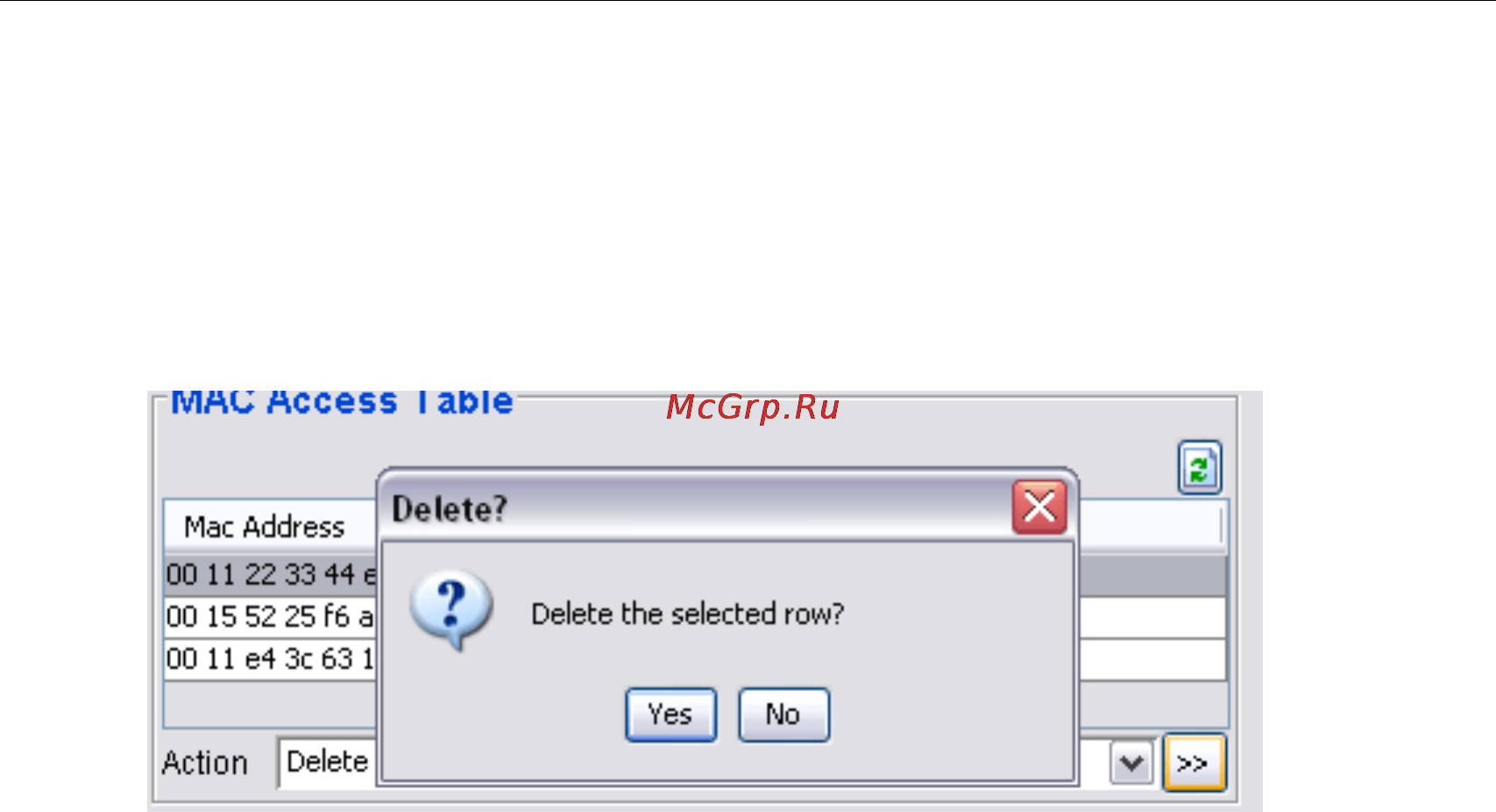

For delete action instead, select the table entry that wanted to be removed, click the “>>”
button next to the drop-down list. A warning message would appear to prompt user for their
confirmation to proceed with the operation. Hit Yes to proceed.
The Refresh button at the top of every table is used to reload the table.
