PLANET Mesh Network Manager Guide
5.3.1.7 Network > Mesh

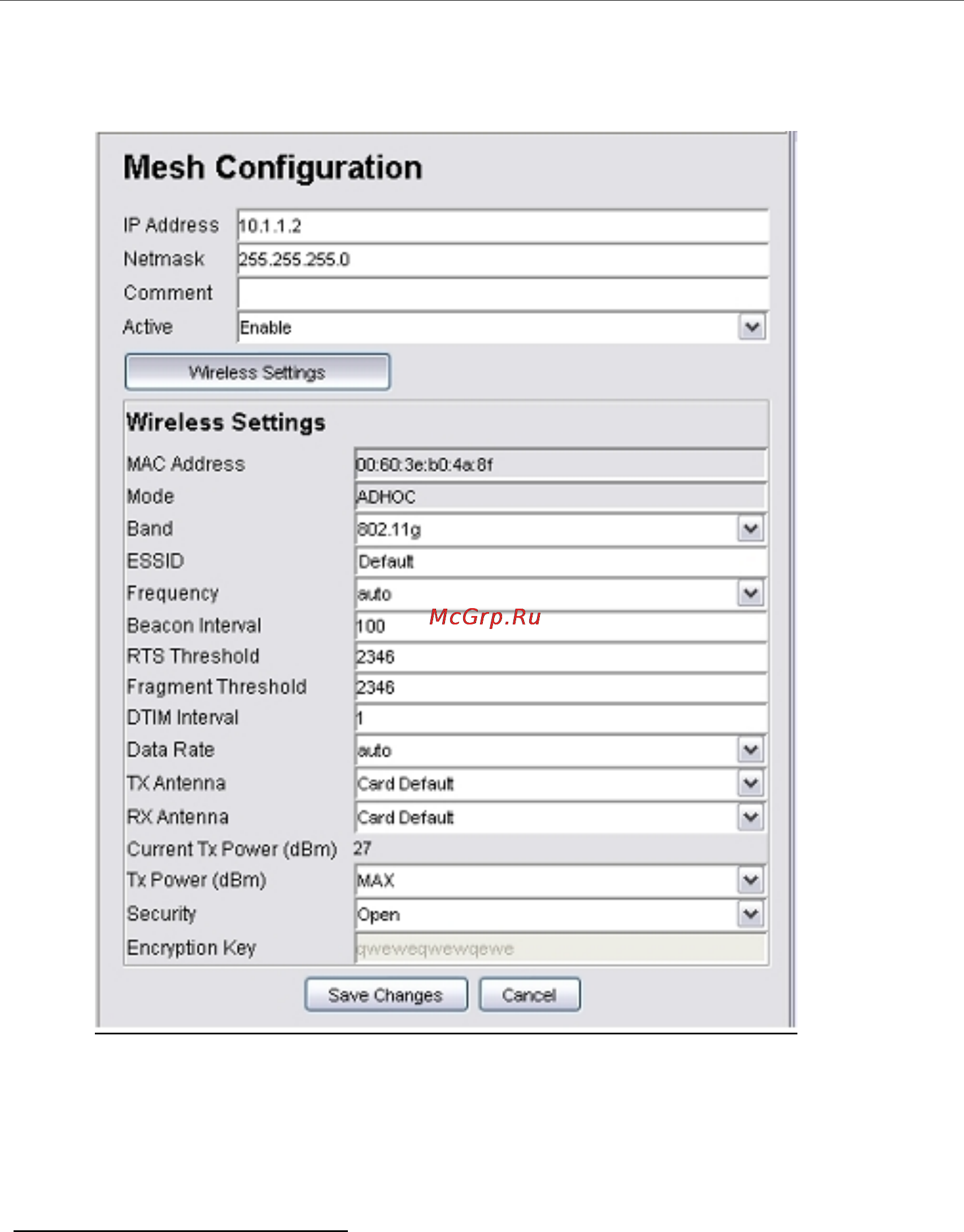

The Mesh configuration page read the data from the wireless interface, ath0. Select the
Wireless Settings button to view or edit the corresponding data.
Parameters (Mesh Configuration)
1) IP Address
• IP Address for the Mesh interface
• Data type: IP Address
2) Netmask
• Netmask for the IP Address of the Mesh interface
• Data type: IP Address
PLANET Mesh Network Manager Guide
Page77 of 124
