The following instructions are provided for qualified

installers so that they may accomplish installation,

adjustment and technical maintenance operations

correctly and in compliance with national current

regulations and standards.

Important: the appliance should beImportant: the appliance should be

Important: the appliance should be

disconnected from the mains electricitydisconnected from the mains electricity

disconnected from the mains electricity

supply before any adjustment, maintenance,supply before any adjustment, maintenance,

supply before any adjustment, maintenance,

etc. is carried out.etc. is carried out.

etc. is carried out. Maximum caution should be

exercised should it be necessary to keep the

appliance connected to the electricity supply.

The cookers have the following technical

specifications:

Cat. II2H3+

Class 1 Class 2 sub-class 1

The maximum dimensions of the appliance are given

in the figure. For trouble-free operation of appliances

installed in housing units, the minimum distances

shown in fig.8 should be observed. Adjacent

surfaces and the wall at the rear should also be able

to withstand a temperature of 65 °C

Prior to installing the cooker, 99 ÷ 155 mm high

supporting feet (provided) should be fitted into the

holes to be found in the bottom of the cooker (fig.9).

These feet are screw-adjustable and whenever

necessary should be used to make sure the cooker

stands level.

Positioning (only for UK)

Important: this unit may be installed and used only

in permanently ventilated rooms according to the

British Standards Codes Of Practice: B.S. 6172/B.S.

5440, Par. 2 and B.S. 6891 Current Editions. The

following requirements must be observed:

a) The cooker should not be installed in a bed sitting

room with a volume of less than 20m³. If it is

installed in a room of volume less than 5m³ an air

vent of effective area of 110cm² is required, if it is

installed in a room of

volume between 5m³ and 10m³ a supplementary

airvent area of 50cm² is required, if the volume

exceeds 11m3 no airvent is required. However, if the

room has a door or a window which opens directly to

the outside

no air vent is required even when the volume is

between 5m³ and 11m³.

b) During prolonged use of the appliance you may

consider it necessary to open a window to the

outside to improve ventilation.

c) If there are other fuel burning appliances in the

same room, B.S.5440 Part 2 Current Edition, should,

be consulted to determine the requisite air vent

requirements.

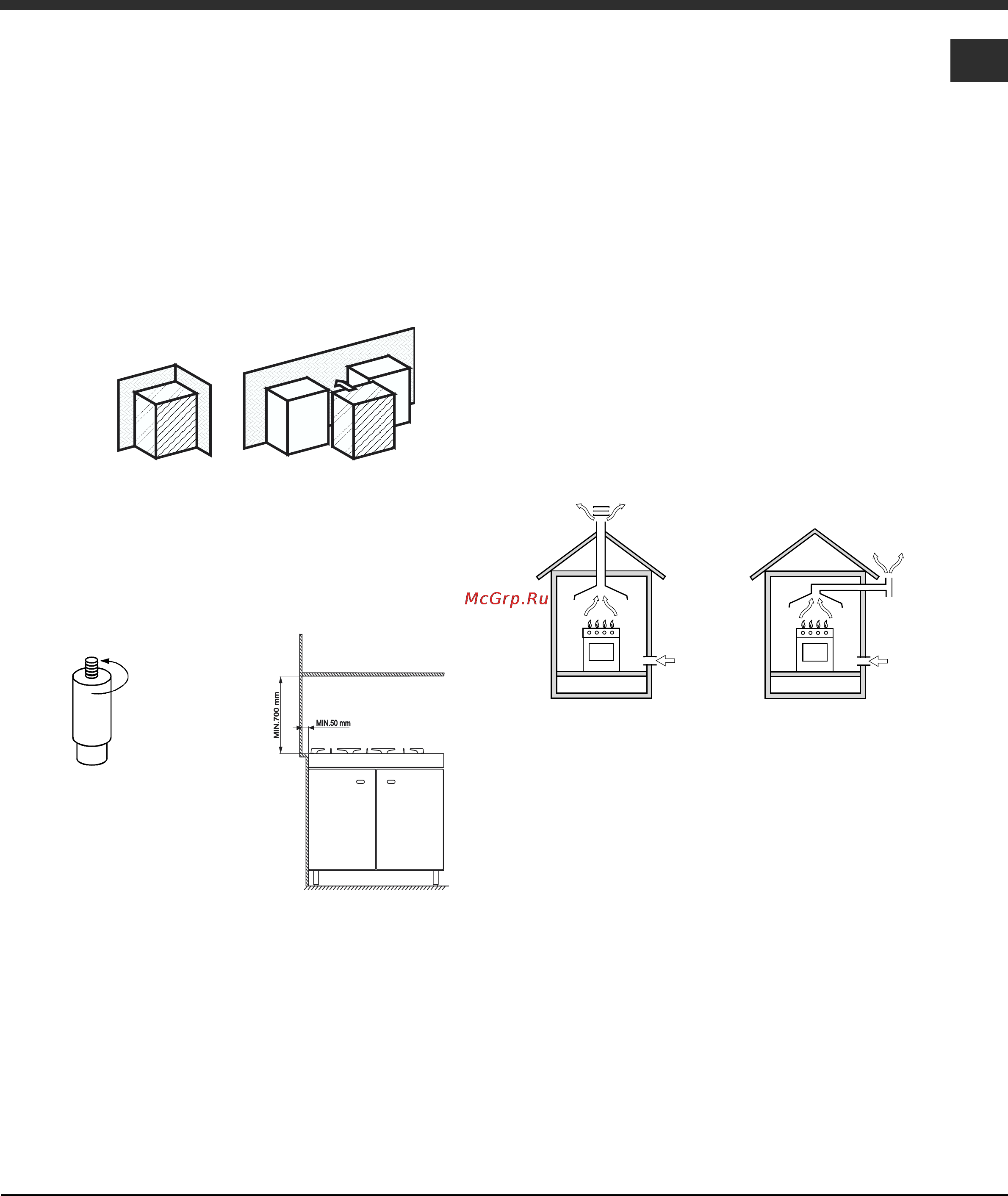

fig. 10

In a chimney stack or branched flue Directly to the outside

(exclusively for cooking appliances)

Positioning

This appliance may only be installed and operated

in permanently ventilated rooms in compliance with

provisions laid down by current regulations and

standards. The following requirements must be

observed:

• The appliance must discharge combustion

products into a special hood, which must be

connected to a chimney, flue pipe or directly to

the outside (fig.10).

• If it is impossible to fit a hood, the use of an

electric fan is permitted, either installed on a

window or on an external wall, which must be

switched on at the same time as the appliance.

Kitchen ventilation

The air flow into the room where the appliance is

installed must be equal to the quantity of air that is

Installation

fig.9

fig.8
