Ariston STYLE 7OFH 1039 P IX [3/28] Electrical connection

Electrical connection

! Ovens equipped with a three-pole power supply

cable are designed to operate with alternating

current at the voltage and frequency indicated on

the data plate located on the appliance (

see below

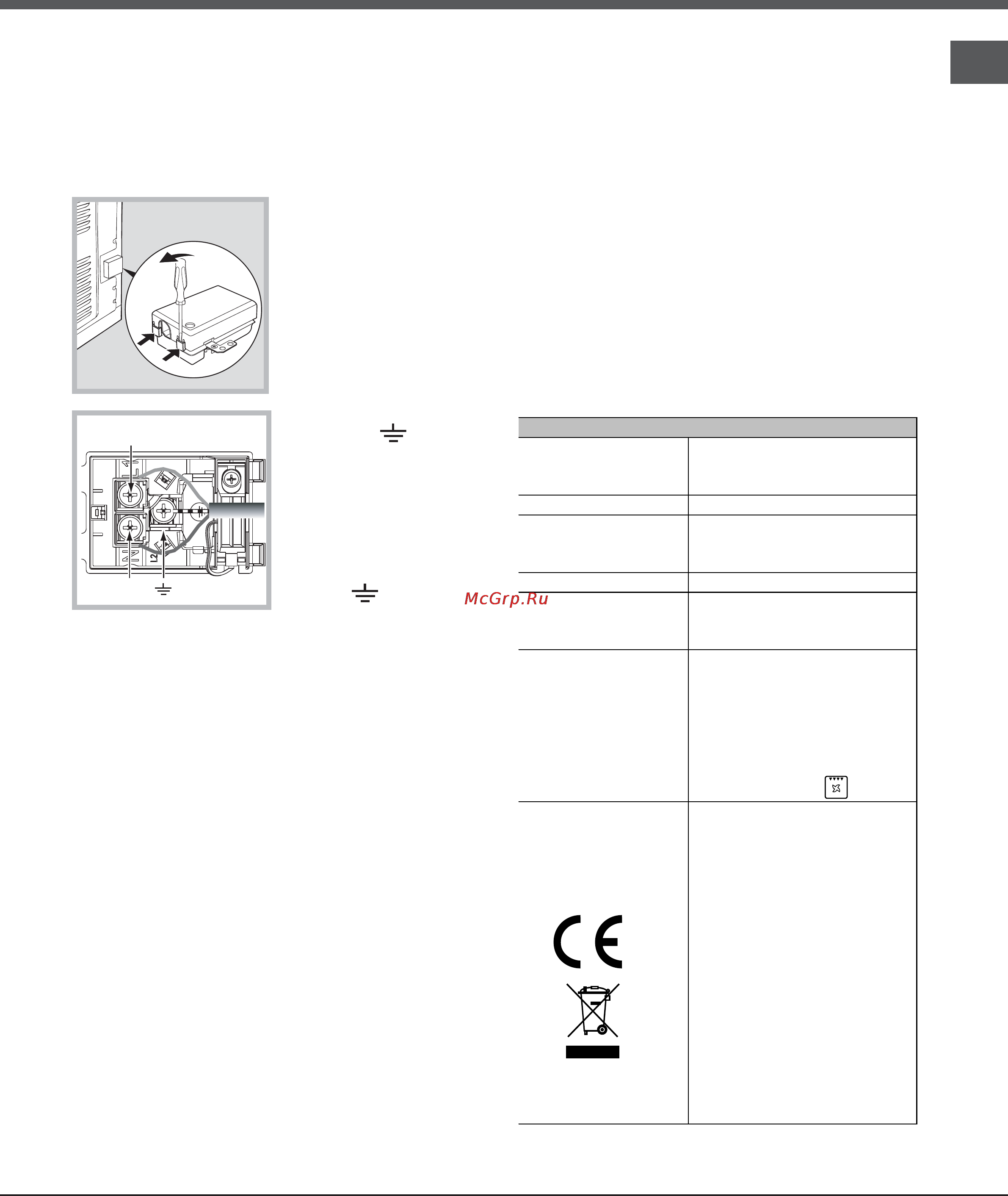

Fitting the power supply cable

1. Open the terminal

board by inserting a

screwdriver into the

side tabs of the cover.

Use the screwdriver as

a lever by pushing it

down to open the cover

(

see diagram

2. Install the power

supply cable by

loosening the cable

clamp screw and the

three wire contact

screws L-N-

Connect the wires to

the corresponding

terminals: the Blue wire

to the terminal marked

(N), the Brown wire to

the terminal marked (L)

and the Yellow/Green

wire to the terminal

marked

(

see

diagram

3. Secure the cable by

fastening the clamp screw.

4. Close the cover of the terminal board.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the

load indicated on the data plate (

see table

The appliance must be directly connected to the

mains using an omnipolar circuit-breaker with a

minimum contact opening of 3 mm installed between

the appliance and the mains. The circuit-breaker

must be suitable for the charge indicated and must

comply with current electrical regulations (the

earthing wire must not be interrupted by the circuit-

breaker). The supply cable must be positioned so

that it does not come into contact with temperatures

higher than 50°C at any point.

! The installer must ensure that the correct electrical

connection has been made and that it is fully

compliant with safety regulations.

Before connecting the appliance to the power

supply, make sure that:

• The appliance is earthed and the plug is

compliant with the law.

• The socket can withstand the maximum power of

the appliance, which is indicated on the data

plate (

see below

• The voltage is in the range between the values

indicated on the data plate (

see below

• The socket is compatible with the plug of the

appliance. If the socket is incompatible with the

plug, ask an authorised technician to replace it.

Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power

supply cable and the electrical socket must be

easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced

by authorised technicians only (

see Assistance

! The manufacturer declines any liability should

these safety measures not be observed.

TABLE OF CHARACTERISTICS

Dimensions

width 43.5 cm

height 32 cm

depth 40 cm

Volume

56 l

Dimensions *

width 43.5 cm

height 32 cm

depth 41.5 cm

Volume *

58 l

Electrical

connections

voltage: 220-240V ~ 50Hz

maximum power absorbed

2800 W

ENERGY LABEL **

Directive 2002/40/EC on the

label of electric ovens.

Regulation EN 50304

Declared energy

consumption for Forced

convection Class

– heating mode: Gratin

This appliance conforms to

the following European

Economic Community

directives: 2006/95/EEC

dated 12/12/06 (Low

Voltage) and subsequent

amendments –

2004/108/EEC dated

15/12/04 (Electromagnetic

Compatibility) and

subsequent amendments -

93/68/EEC dated 22/07/93

and subsequent

amendments.

2002/96/EEC and

subsequent amendments.

1275/2008 standby/off mode

* With glass panel fitted to the inside of the door

** Without removable

uide rails
