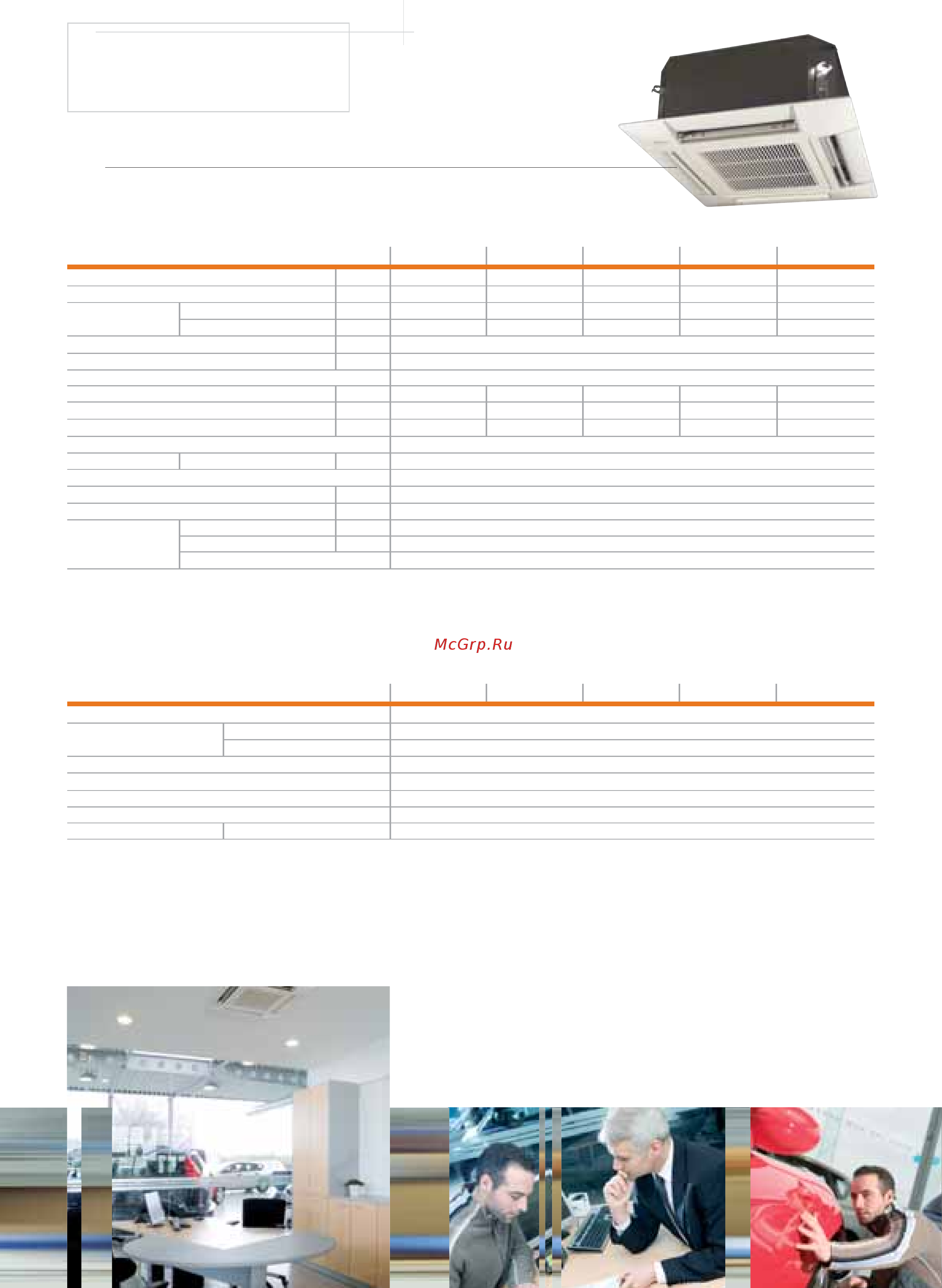

FXZQ-M8
p. 50
20 25 32 40 50
BRC1D52
BRC7E531
BRC7E530
BYFQ60B
KDBH44B60
KDBQ44B60
KAFQ441B60
KDDQ44X60
FXZQ-M8
Wired remote control
Infrared remote control cooling only
heat pump
Decoration panel
Sealing member of air discharge outlet
Panel spacer
Replacement long life filter
Fresh air intake kit direct installation type
4-way blow ceiling mounted cassette (600mm x 600mm)
ACCESSORIES
20 25 32 40 50
2.2 2.8 3.6 4.5 5.6
2.5 3.2 4.0 5.0 6.3
73 73 76 89 115
64 64 68 80 107
286x575x575
18
galvanised steel plate
9.0/7.0 9.0/7.0 9.5/7.5 11.0/8.0 14.0/10.0
30/25 30/25 32/26 36/28 41/33
47 47 49 53 58
R-410A
ø6.4/ø12.7
resin net with mold resistant
500
1~, 50Hz, 220-240V
55x700x700
2.7
white (RAL 9010)
FXZQ-M8
Cooling capacity kW
Heating capacity kW
Nominal input cooling W
heating W
Dimensions (HxWxD) mm
Weight kg
Casing
Air flow rate (H/L) m
3
/min
Sound pressure level (H/L)(220V) dB(A)
Sound power level dB(A)
Refrigerant type
Piping connections liquid/gas mm
Air filter
Drain-up height mm
Power supply V1
Decoration panel dimensions (HxWxD) mm
weight kg
colour
Notes: • Nominal cooling capacities are based on: indoor temperature: 27°CDB, 19°CWB • outdoor temperature: 35°CDB • equivalent piping length: 7.5m (horizontal)
• Nominal heating capacities are based on: indoor temperature: 20°CDB • outdoor temperature: 7°CDB, 6°CWB • equivalent piping length: 7.5m (horizontal)
• Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat
