Planet HDVR-1600 [22/74] Network time protocol setup
![Planet HDVR-1600 [22/74] Network time protocol setup](/views2/1071453/page22/bg16.png)
NOTE: If this function is enabled, the date/time information will be shown on the screen
with a DST icon when playing back recorded video or searching video in the event list. “S”
indicates summer time and “W” indicates wintertime.
DST Start / End
The items are used to program the daylight saving duration. Use LEFT / RIGHT keys to
move the cursor to the next or previous field, UP / DOWN to change the settings in the selected
field.
DST Bias
The item allows user to set the amount of time to move forward from the standard time for
daylight saving time. The available options are in minutes.
3.4.3 Network Time Protocol Setup
Time Zone
Select <Time Zone> to enter the time zone. To find out the correct local time zone, please
visit www.greenwichmeantime.com

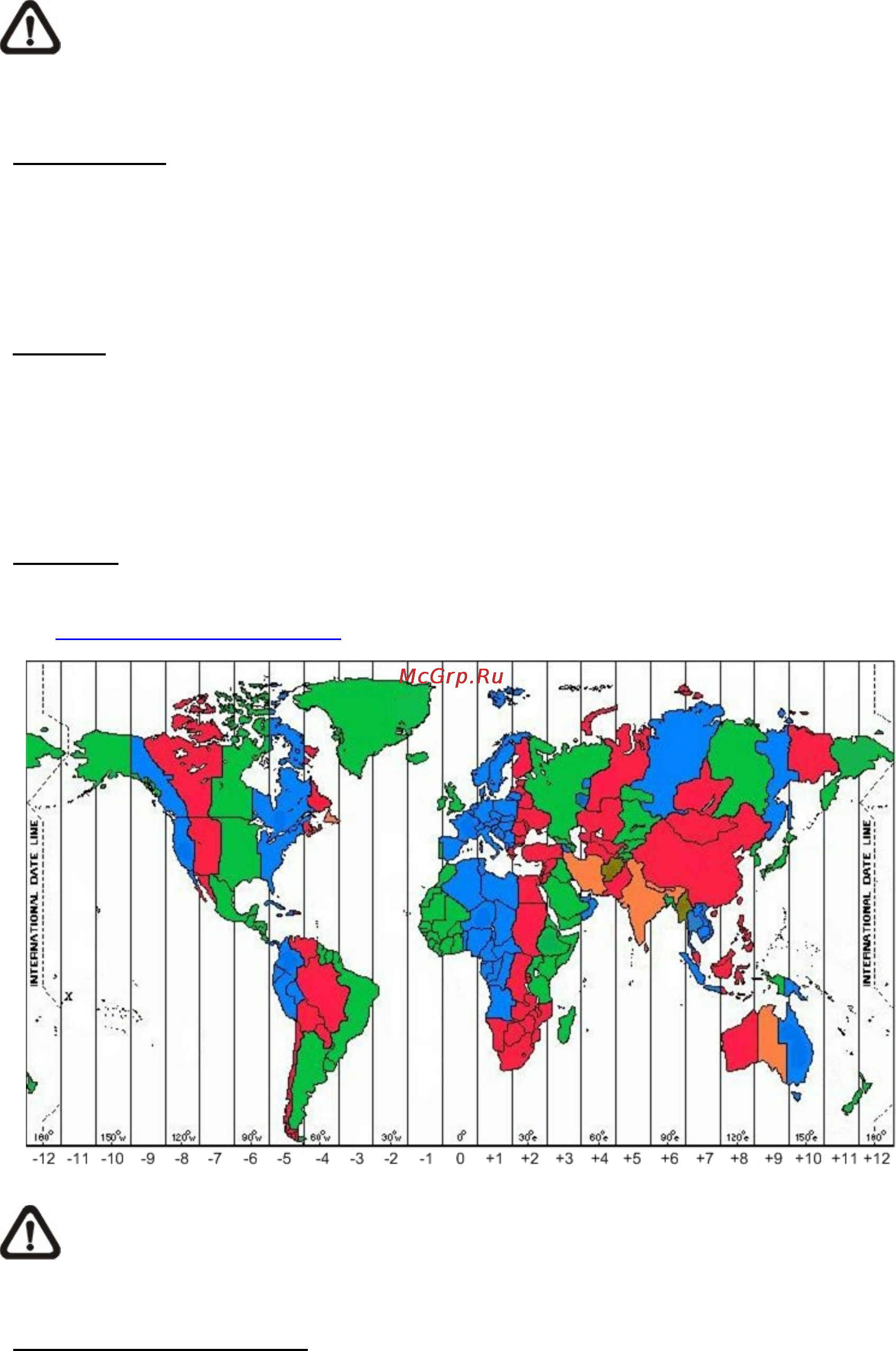

or refer to the following figure.
NOTE: The <Time Zone> must be set to the correct local time zone or the <Network
Time Protocol Setup> will not be accessible.
Network Time Protocol Setup
After entering the time zone, the <Network Time Protocol Setup> option will appear.
Select the <Network Time Protocol Setup> to set the time server. The default time server is
time.nist.gov, but the user can change it to other time servers when desired. A list of IP addresses
of the time servers is listed below.
- 22 -
