Appendix C: USB Mouse Operation

Users can use an USB mouse to operate the DVR. To use the USB mouse, please read through

the following descriptions.

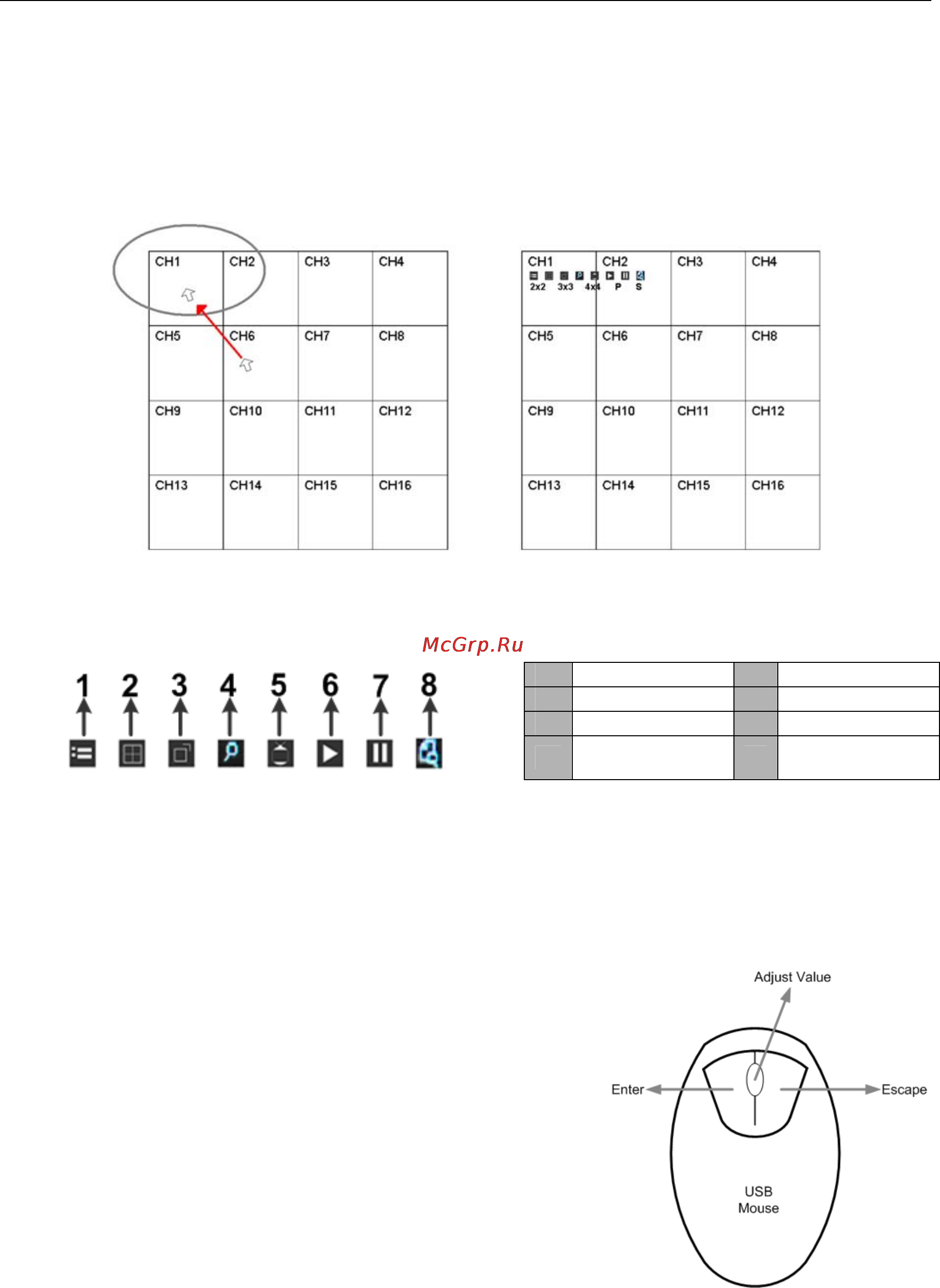

Plug in an USB mouse to any USB port of the DVR. Move the USB mouse, and the cursor should

appear. Move the cursor to the top-left of the screen, and the functional icons will be displayed, as

shown below.

The description of the 8 functional icons on the upper row are listed as the below. They are similar

to the function keys on the front panel.

- 64 -

1 Menu 5 Call

2 Mode

6 Play

3 SEQ 7 Pause

4 Zoom 8 Search

Click on the first 3 icons on the lower row to display viewing modes 2x2, 3x3, and 4x4. Click on “P”

to display the previous viewing mode. Click on “S” to switch monitor control to the second main VGA

monitor.

Clicking the left button of the USB mouse functions the same as

pressing the “ENTER” key on the front panel of the DVR. Clicking

the right button of the USB mouse functions the same as

pressing the “ESC” key on the front panel of the DVR. The scroll

wheel is used to change values. For example, if users want to

change dome camera ID, enter the OSD setup menu and go to

the following path:

Left click on <Dome ID> and scroll the wheel up or down, the ID number will change as the scroll

wheel moves. Stop moving the scroll wheel when the preferred ID number appears, then left click on

the <Dome ID> and the ID number will be changed.
