menu; 2 is for hiding or displaying the dome setting parameters;
11~16 is for quick access of preset points 1~6.
3 Power LED
It lights up when power source is connected.
4 Network LED
It lights up when network is connected. In addition, it blinks when data is
being transmitted via the network.
5 Alarm LED
It lights up when an alarm is triggered.
6 Record LED
It blinks when videos are being recorded.
7 HDD LED
It lights up when data is processed to or from the connected HDD(s).
8 MODE
Press this key to view in full-screen or multiple window modes.
9 PLAY/STOP
Press once to start the playback of recorded video. Press again to exit.
10 FREEZE
Press this key to freeze the current viewing screen.
11 SEQ
Press this key to start automatic sequence display of cameras.
12 ESC
Press this key to cancel or exit from certain control mode.
13 Direction Keys
1. In Zoom mode, these keys function as normal direction keys.
2. In the OSD setup menu, the direction keys are used to move the
cursor to previous or next fields. To change the value in the selected
field, press UP / DOWN keys.
14 ENTER
1. In OSD menu or selection interface, press these key to make the
selection or save settings.
2. In live full-screen viewing mode, press this key to view a 2× zoom
image; press it again to return.
15 Shuttle/ Jog
This is used to control playback operations.
16 DOME
Press this key to enter Dome Camera Control mode.
17 CALL
Press this key to control call monitor or 2nd main monitor.
18 COPY
This key is used for marking time in quick video export function.
19 SEARCH
Press this key to search recorded video by date/time or event.
20 MENU
Press this key to enter the OSD setup menu.

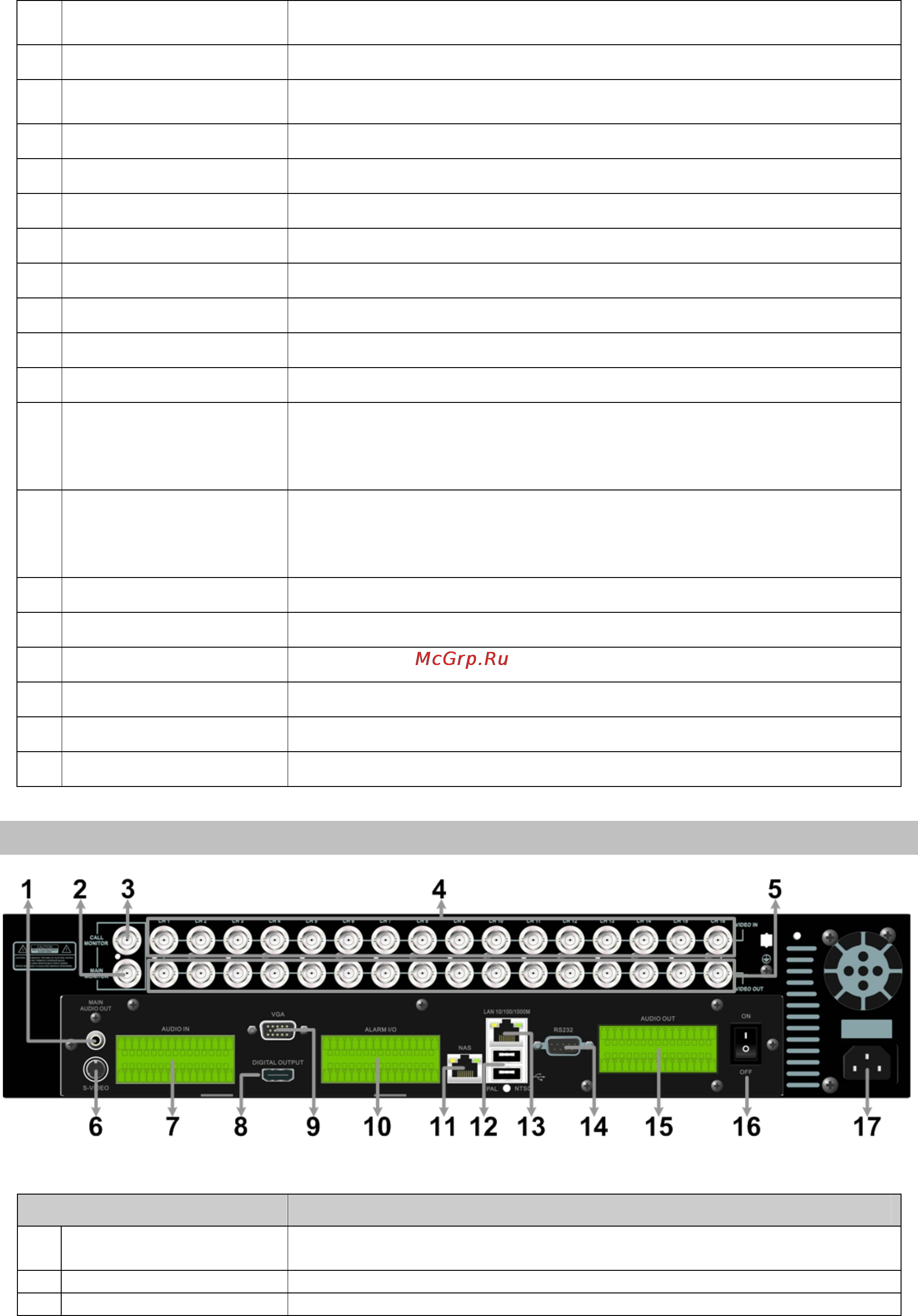

Rear Panel
Rear Panel of HDVR-1600
Item Description
1
Main Monitor
Audio Out
A RCA connector is provided to output audio associated with the main
monitor.
2 Main Monitor (BNC)
A BNC connector is provided for connecting to a main monitor.
3 Call Monitor (BNC)
A BNC connector is provided for connecting to a call monitor.
- 9 -
