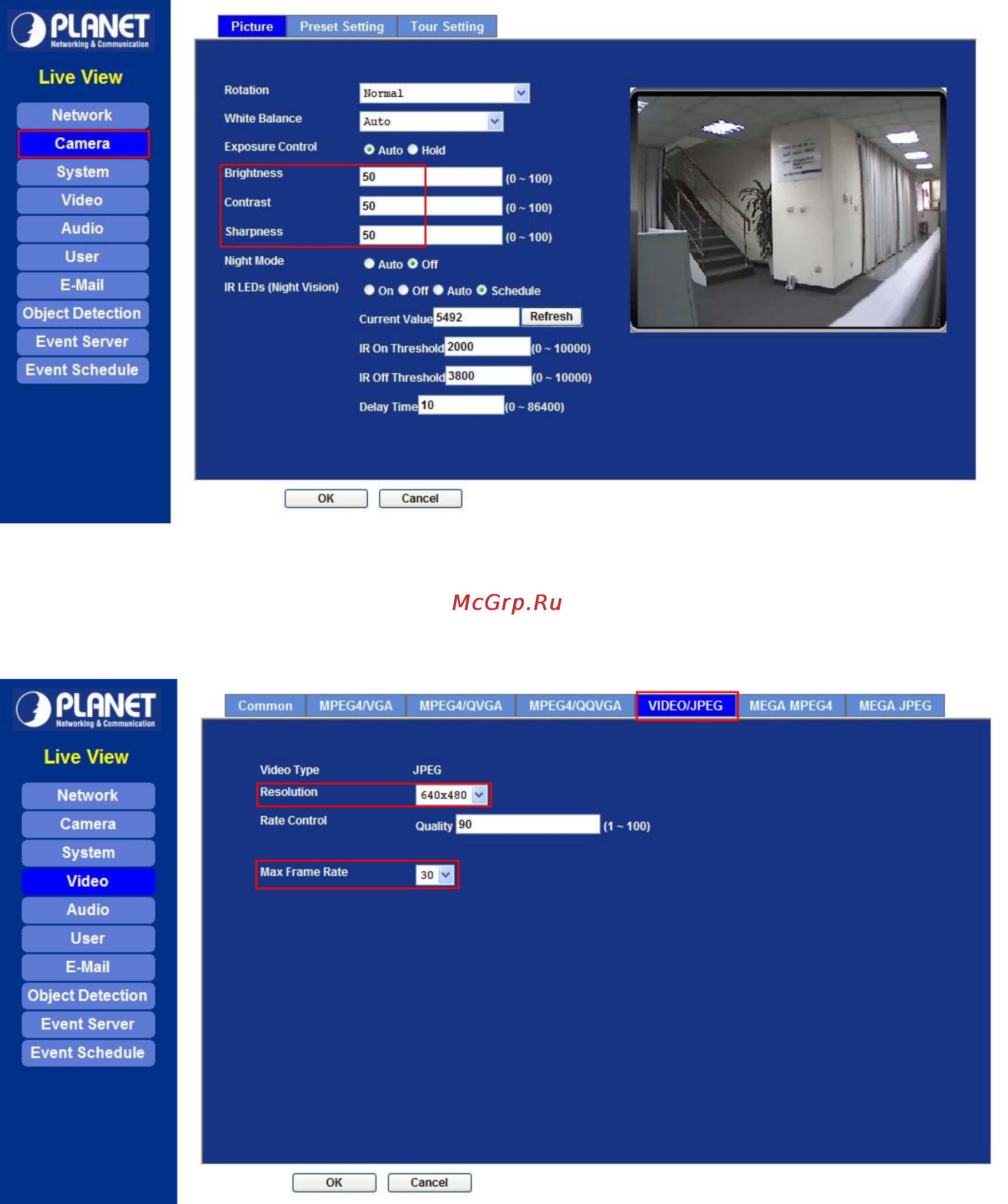

Step 3. Next click on the Camera menu to look for current camera image settings: Brightness=50,

Sharpness=50, and Contrast=50.

Step 4. Access the Video -> VIDEO/JPEG menu to look resolution setting: JPEG=640x480, and the

maximum frame rate is 30 fps.

Step 5. Access the OSD setup menu of the DVR to select the number of IP cameras to be

connected: <System Setup> Æ <IP Camera Support>. The DVR will reboot in order to

apply the change.

Step 6. Access the <Camera Setup> menu of the DVR to setup the IP camera. Select the channel

that is reserved for IP camera. The menu should look like the following:

- 69 -
