VIP-2100 User’s manual - 20 -

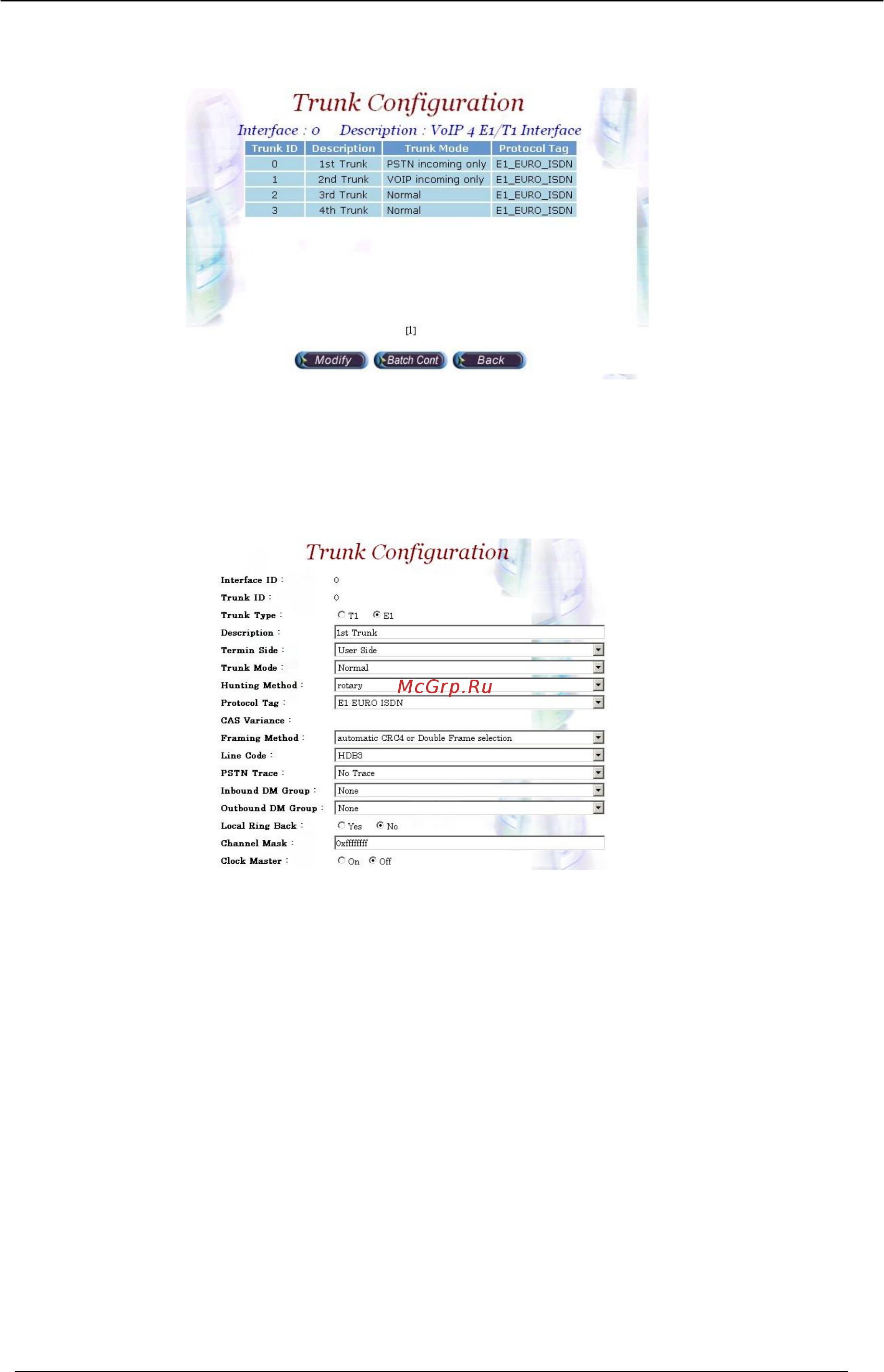

Step 2: Select the trunk to be modified, and click Modify button as figure 3.2-

Figure 3.2-2

Step 3: Modify the trunk parameters (i.e. Trunk Type, Termin Side, Trunk

Mode, Protocol Tag, Line Code) and apply the change by clicking

Apply as figure 3.2-3.

Figure 3.2-3

Frequency Changed Parameters:

• Trunk Type: E1 or T1

• Termin Type: User Side or Network Side

• Trunk Mode: Normal

• Protocol Tag: ISDN protocol used

• Line Code: T1 or E1 line code used
