Planet VIP-2400 [50/140] Address book

VIP-2100 User’s manual - 45 -

Address Book

For making a Peer-to-Peer call, the IP device must has an address

record in the phone book for routing.

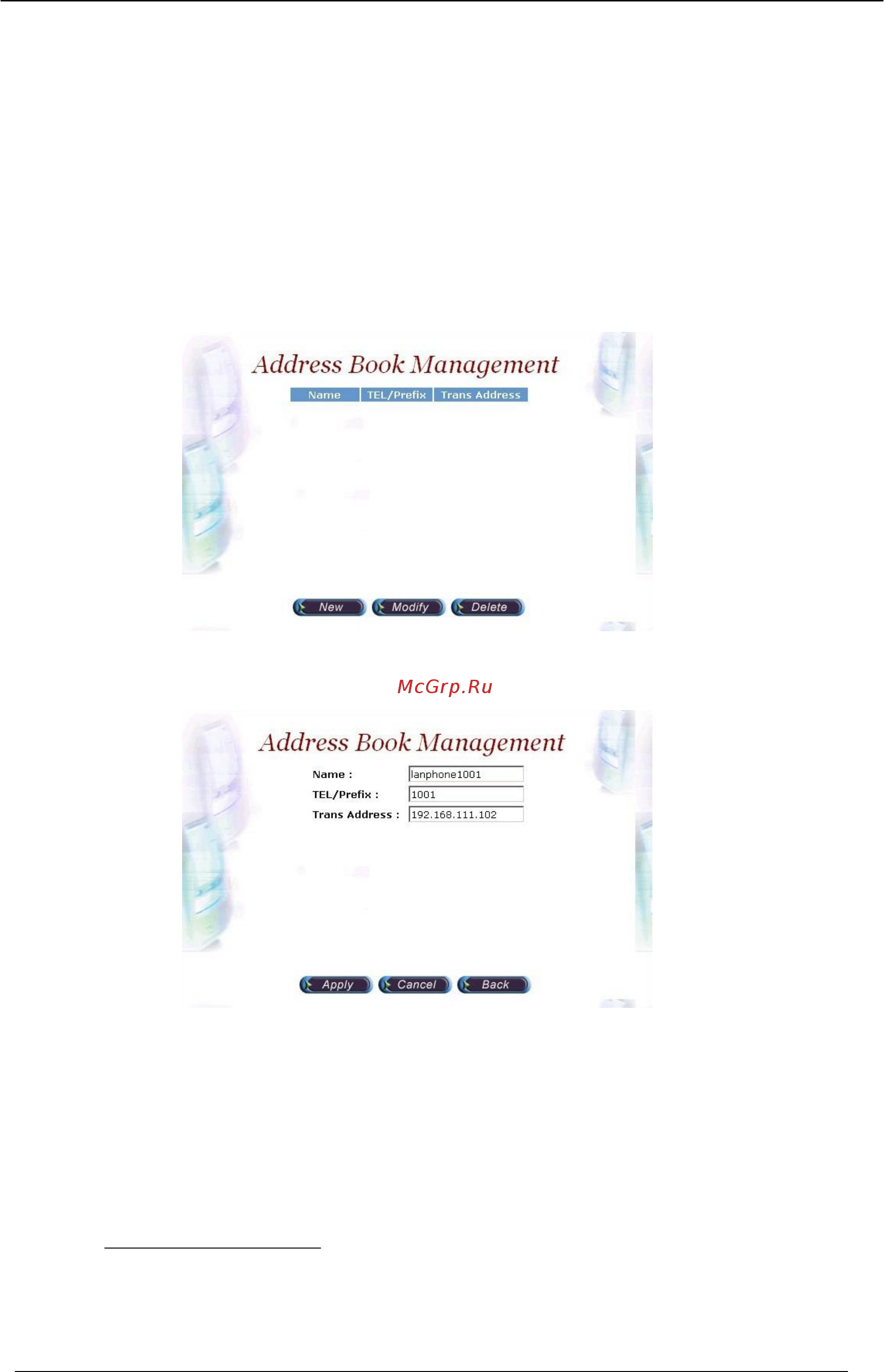

Step 1: Click Address Book adds a new address book for the peer to peer

calls, New to add as figure 5.3-1.

Figure 5.3-1

Step 2: Enter the related parameters and click Apply button as figure 5.3-2.

Figure 5.3-2

Field Description:

• Name: H.323 IP Phone or SIP-Cisco

• Tel/Prefix: 1002

• Trans Address:

- H.323 Call: 192.168.5.102 or 192.168.5.102:1720

- SIP Call: sip:8001@192.168.5.61 or sip:8001@192.168.5.61:5060 or

sip:8001@ctivnet.net
