Planet VIP-2400 [27/140] Sip configuration

VIP-2100 User’s manual - 22 -

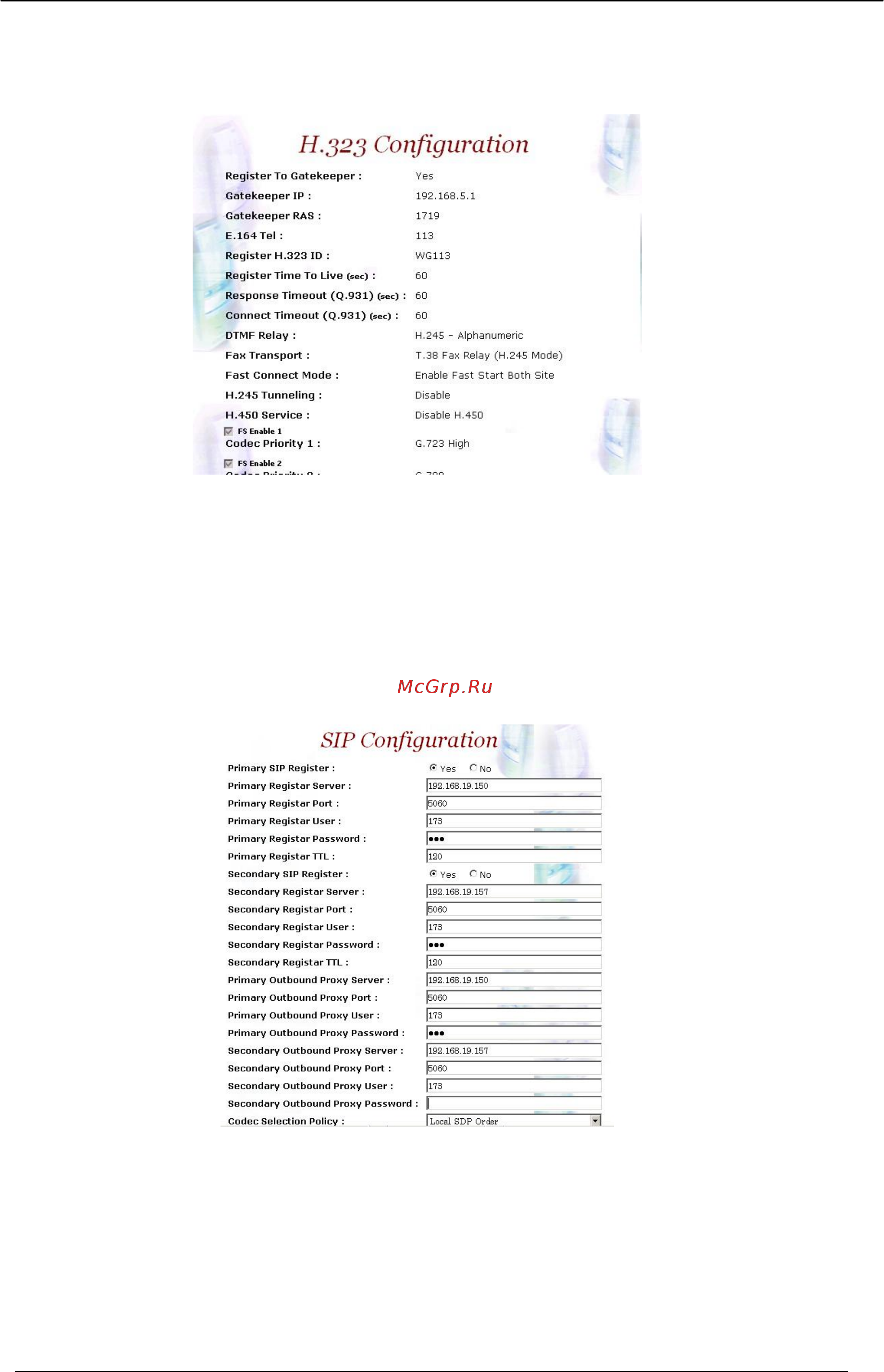

Step 3: You can see the screen display the new configuration of the H.323

Configuration as figure 3.3-3.

Figure 3.3-3

SIP Configuration

This section is going setup the SIP parameter. If you only need H.323

calls, you can skip it.

Step 1: Click Configuration→SIP to setup the SIP parameters for SIP Proxy

Server related information as figure.3.4-1.

Figure 3.4-1

Frequency used parameters:

• SIP Register: Yes

• Primary Registar Server: 192.168.19.150

• Primary Registar Port: 5060

• Primary Registar User: 173

• Primary Registar Password: 173
