Planet VIP-2400 [24/140] T1 e1 trunk configuration

VIP-2100 User’s manual - 19 -

Frequency changed parameters: (Refer to section “Interface

Configuration” for more detail)

• IP Address: 192.168.19.174

• Subnet Mask: 255.255.255.0

• Default Gateway: 192.168.19.254

• PCM Type: A-law or Mulaw

☻Caution: Subnet Mask does not support Supernet.

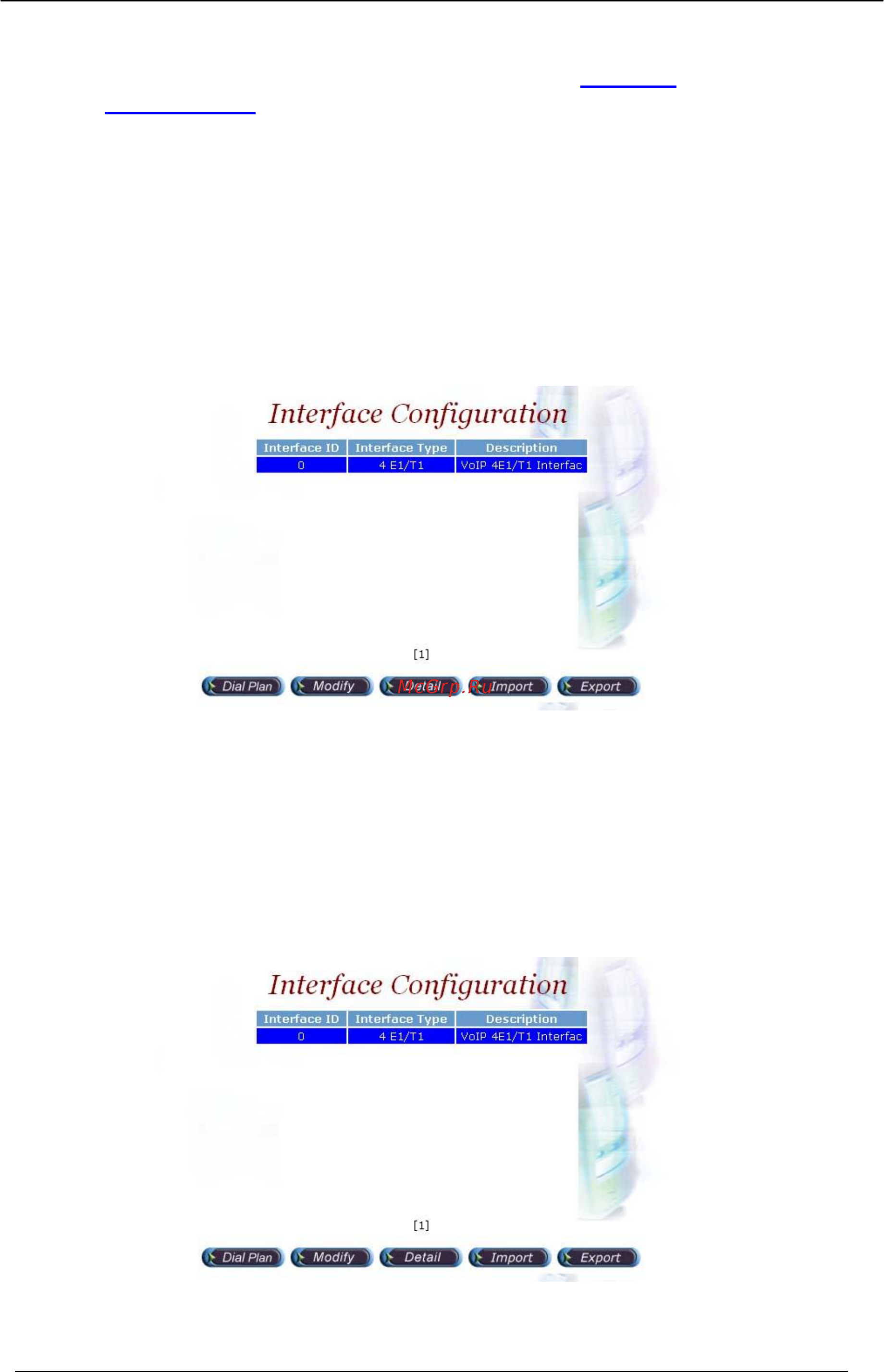

Step 4: After successfully to change the Interface configuration, the screen

come back the page of Interface Configuration as figure 3.1-4.

Figure 3.1-4

T1/E1 Trunk Configuration

This section is going to setup the PSTN trunk parameters.

Step 1: Select the installed interface to modify the trunk parameter by click

Detail button as figure 3.2-1.

Figure 3.2-1
