Multi-Homing Security Gateway User’s Manual

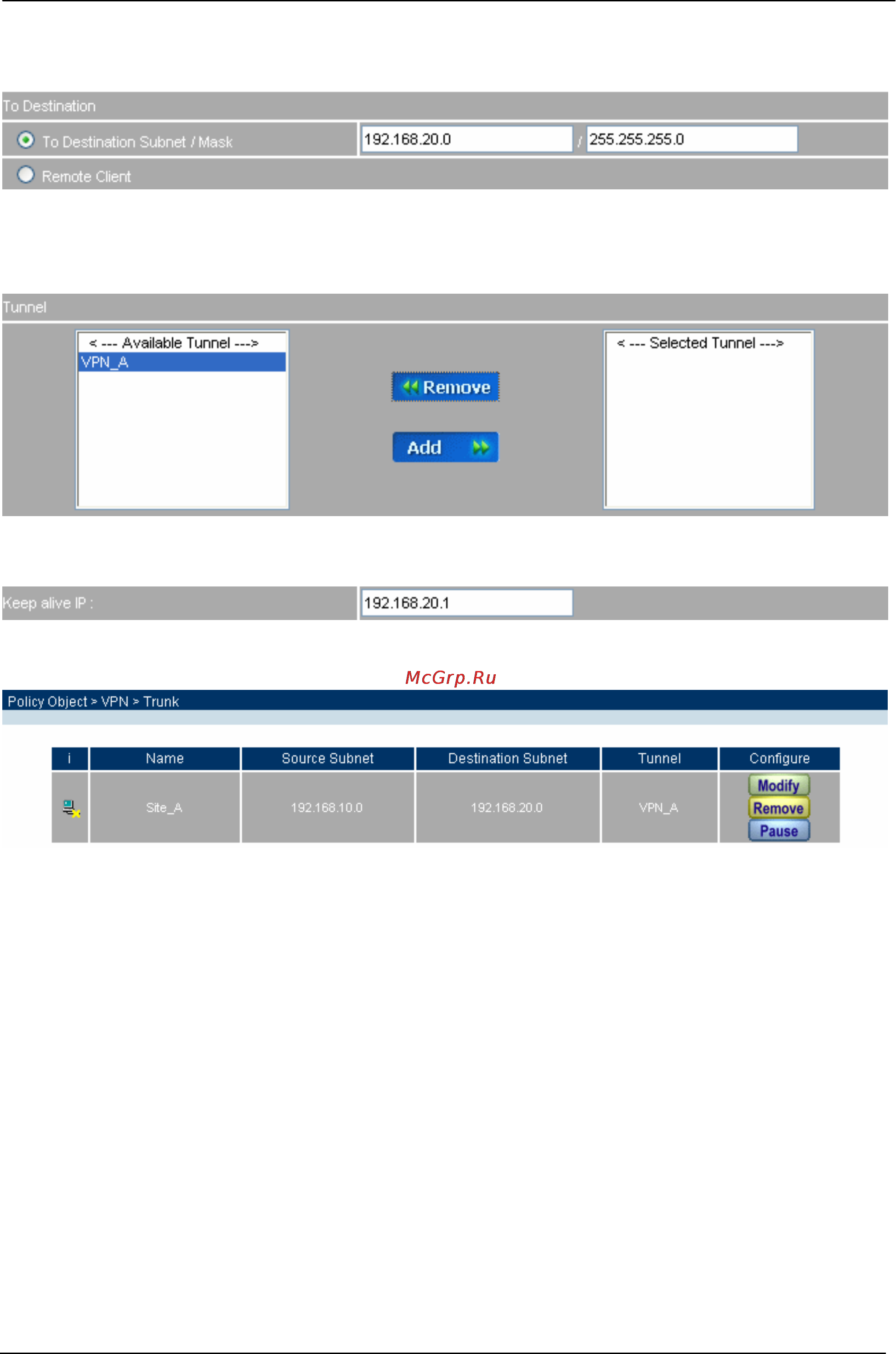

Step 12. In To Destination table, fill company B’s subnet IP and mask, 192.168.20.0 and 255.255.255.0
respectively.
Step 13. In Tunnel, select VPN_A tunnel Available Tunnel, and click the Add>> button to add it to the Select
Tunnel.
Step 14. Fill company B’s gateway IP 192.168.20.1 in Keep alive IP to keep VPN tunnel connecting.
Step 15. Click OK to finish the Trunk setting of Company A.
Step 16. If you want to configure bi-direction VPN connection, you should enable Trunk setting in Outgoing
and Incoming Policy.
- 103 -
