Multi-Homing Security Gateway User’s Manual

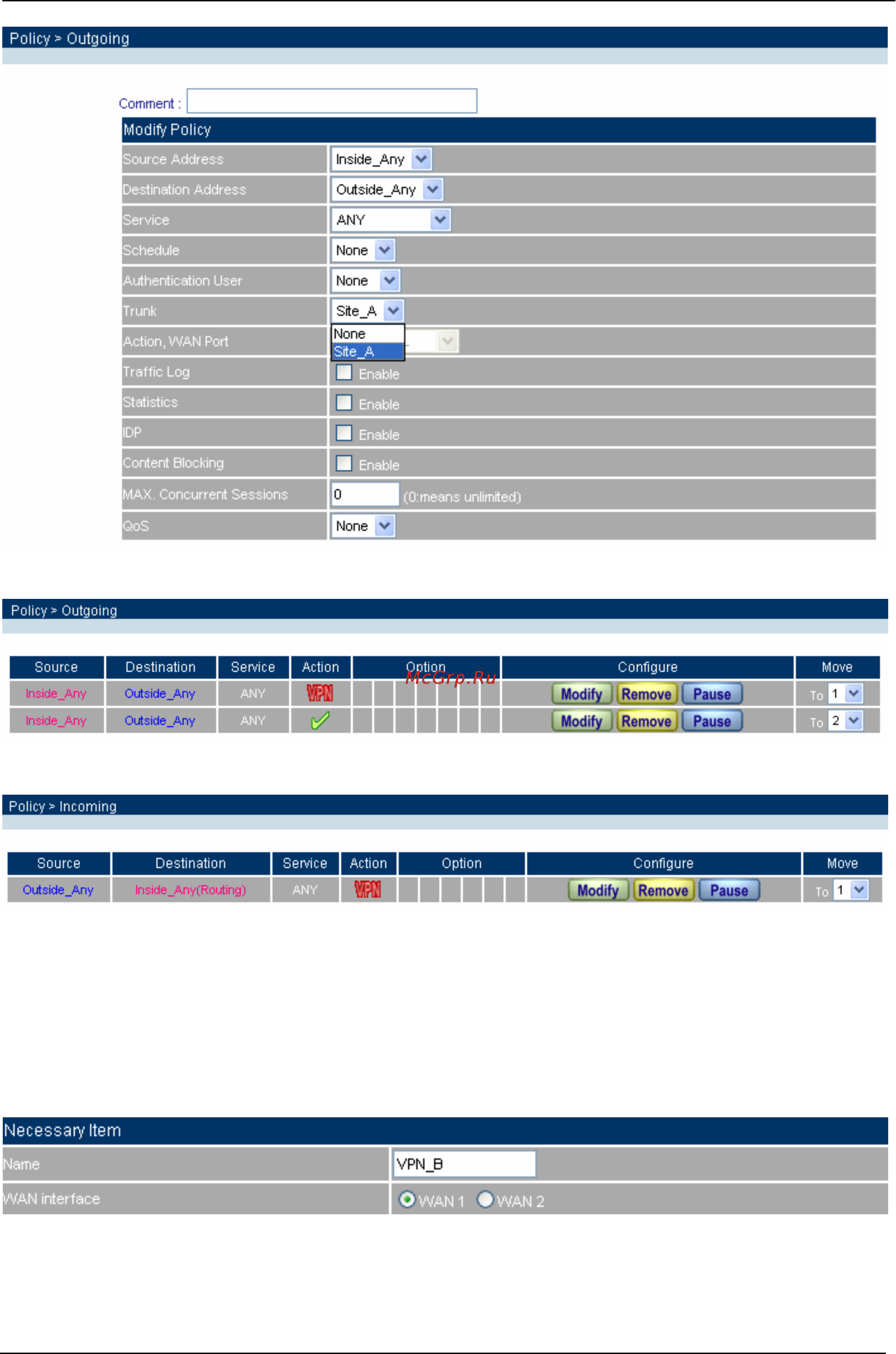

Outgoing Policy:
Incoming Policy:
The Gateway of Company B is 192.168.20.1. The settings of company B are as the following.
Step 1. Enter the default IP of Company B’s Multi-Homing Security Gateway, 192.168.20.1. Click VPN in the
menu bar on the left hand side, and then select the sub-select IPSec Autokey. Click Add.
Step 2. Enter the VPN name, VPN_B in IPSec Autokey window, and select the WAN interface you want to
create the VPN tunnel.
Step 3. In To Destination table, choose Remote Gateway-Fixed IP or Domain Name, enter the IP address
desired to be connected.
- 104 -
