Multi-Homing Security Gateway User’s Manual

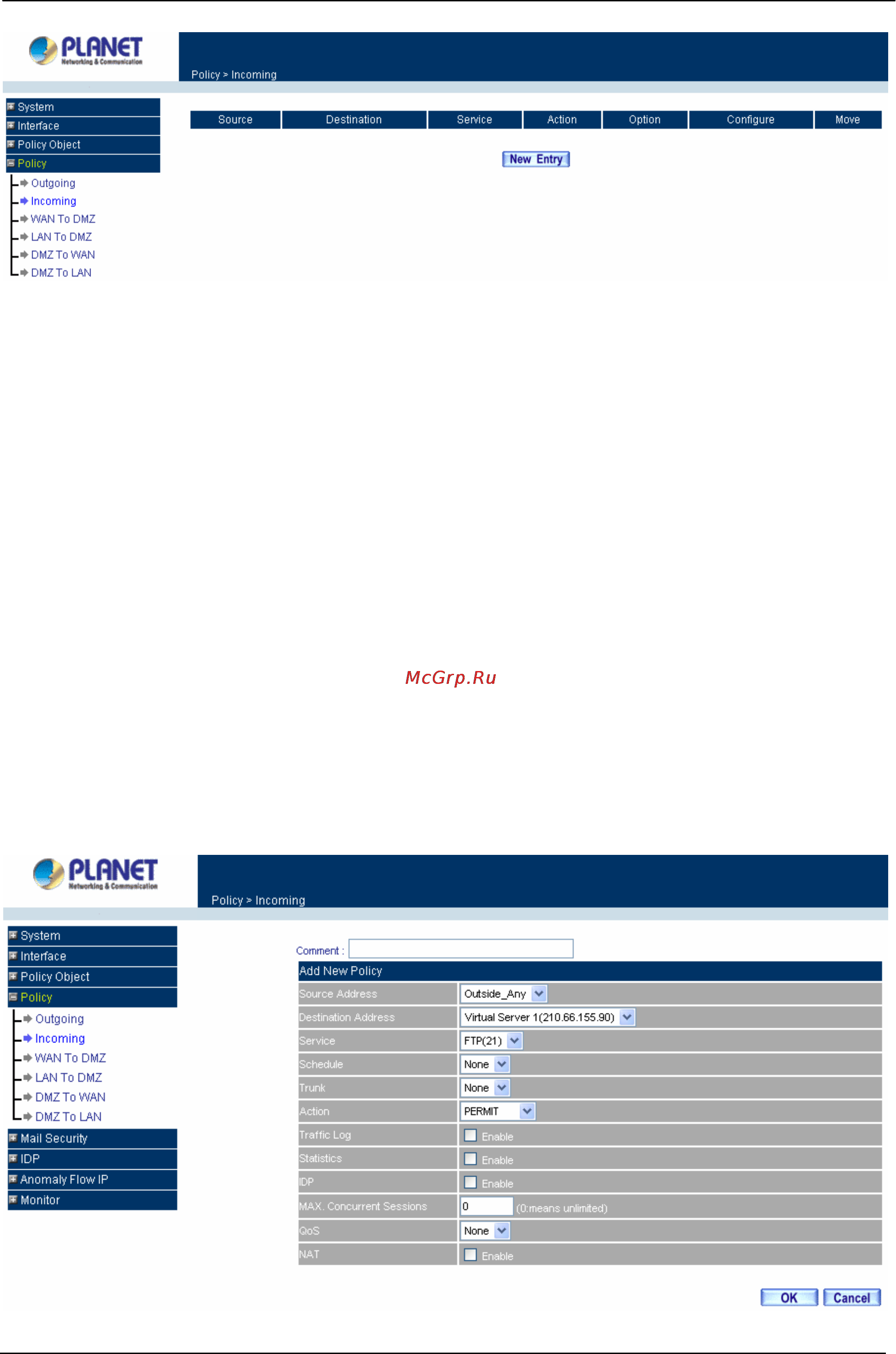

Step 2: The fields of the Incoming window are:
Source: Source networks which are specified in the WAN section of the Address menu, or
all the WAN network addresses.
Destination: Destination networks, which are IP Mapping addresses or Virtual server
network addresses created in Virtual Server menu.
Service: Services supported by Virtual Servers (or Mapped IP).
Action: Control actions to permit or deny packets from WAN networks to Virtual
Server/Mapped IP travelling through the device.
Option: Specify the monitoring functions on packets from WAN networks to Virtual
Server/Mapped IP travelling through the Multi-Homing Security Gateway.
Configure: Modify settings or remove incoming policy.
Move: This sets the sequence of the policies, number 1 being the first policy to proceed.
Adding an Incoming Policy
Step 1: Under Incoming of the Policy menu, click the New Entry button.
- 163 -
