Multi-Homing Security Gateway User’s Manual
Configuring the Interface Settings
Using the LAN Interface, the Administrator sets up the LAN network. The LAN network will use a private IP
scheme. The private IP network will not be routable on the Internet.
IP Address: The private IP address of the Multi-Homing Security Gateway’s LAN network is the IP address of
the LAN port of the device. The default IP address is 192.168.1.1. If the new LAN IP Address is not
192.168.1.1, the Administrator needs to set the IP Address on the computer to be the same subnet as the
Multi-Homing Security Gateway and restart the System to make the new IP address effective. For example, if
the Multi-Homing Security Gateway’s new LAN IP Address is 172.16.0.1, then enter the new LAN IP Address
172.16.0.1 in the URL field of browser to connect to Multi-Homing Security Gateway.
NetMask: This is the subnet mask of the LAN network. The default netmask of the device is 255.255.255.0.
Ping: Select this to allow the LAN network to ping the IP Address of the Multi-Homing Security Gateway. If set
to enable, the device will respond to ping packets from the LAN network.
HTTP: Select this to allow the device WEBUI to be accessed from the LAN network.
3.2.2 WAN
Entering the Interface menu

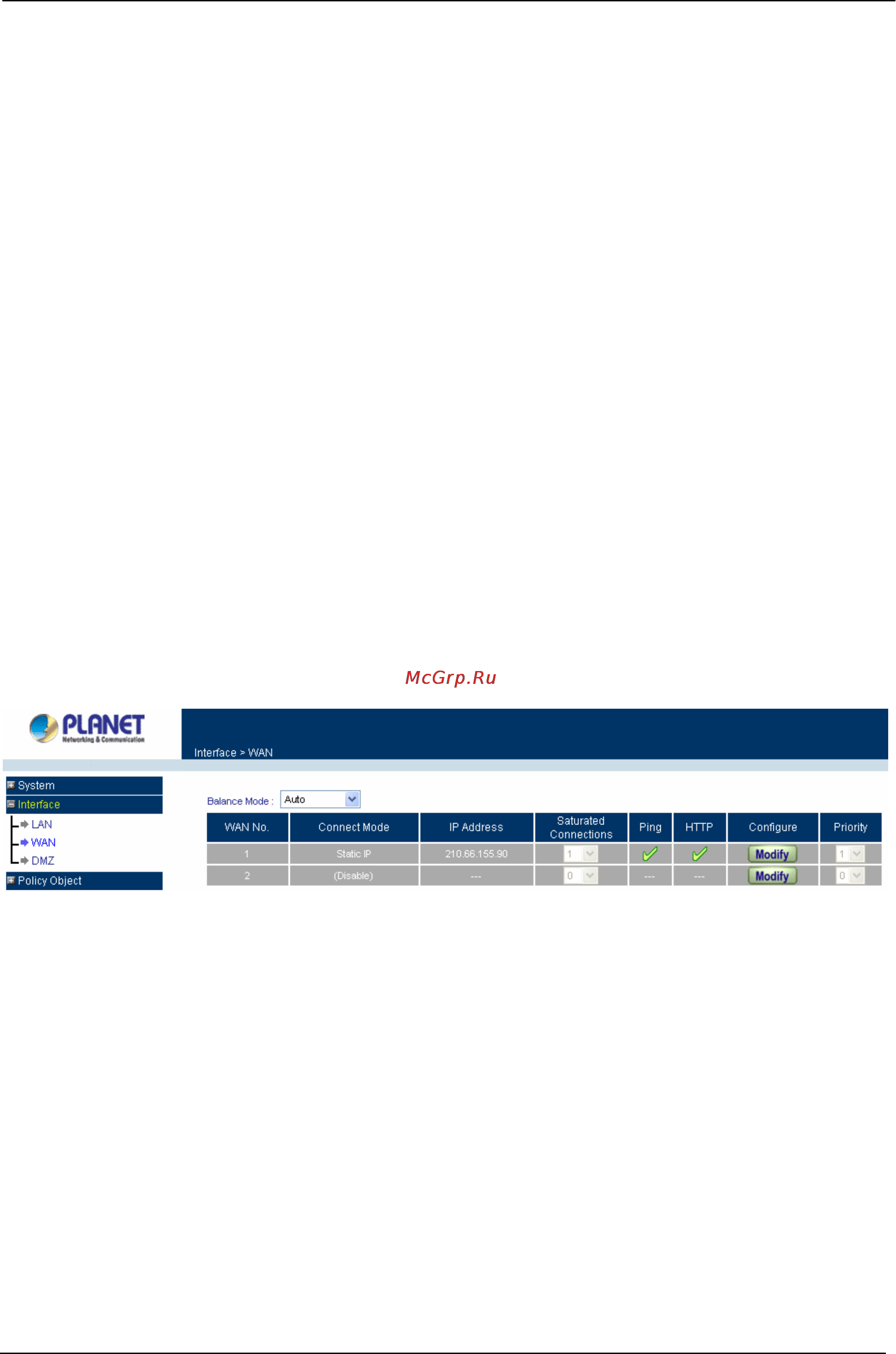

Click on Interface in the left menu bar. Then click on WAN below it. The current settings of the interface
addresses will appear on the screen.
Balance Mode:
Auto: CS-1000 distributes the WAN 1/2 download by proportion automatically according to the WAN
download bandwidth. (For users who are using various download bandwidth)
Round-Robin: CS-1000 distributes the WAN 1/2 download bandwidth 1:1, in other words, it selects the
agent by order. (For users who are using same download bandwidths)
By Traffic: CS-1000 distributes the WAN 1/2 download bandwidth by traffic. (For users who are
connected to the Internet via a fixed WAN IP address)
By Session: CS-1000 distributes the WAN 1/2 download bandwidth by session. (For users who are
connected to the Internet via a fixed WAN IP address)
By Packet: CS-1000 distributes the WAN 1/2 download bandwidth by packet and saturated connection.
(For users who are connected to the Internet via a fixed WAN IP address)
- 35 -
