- 8 -

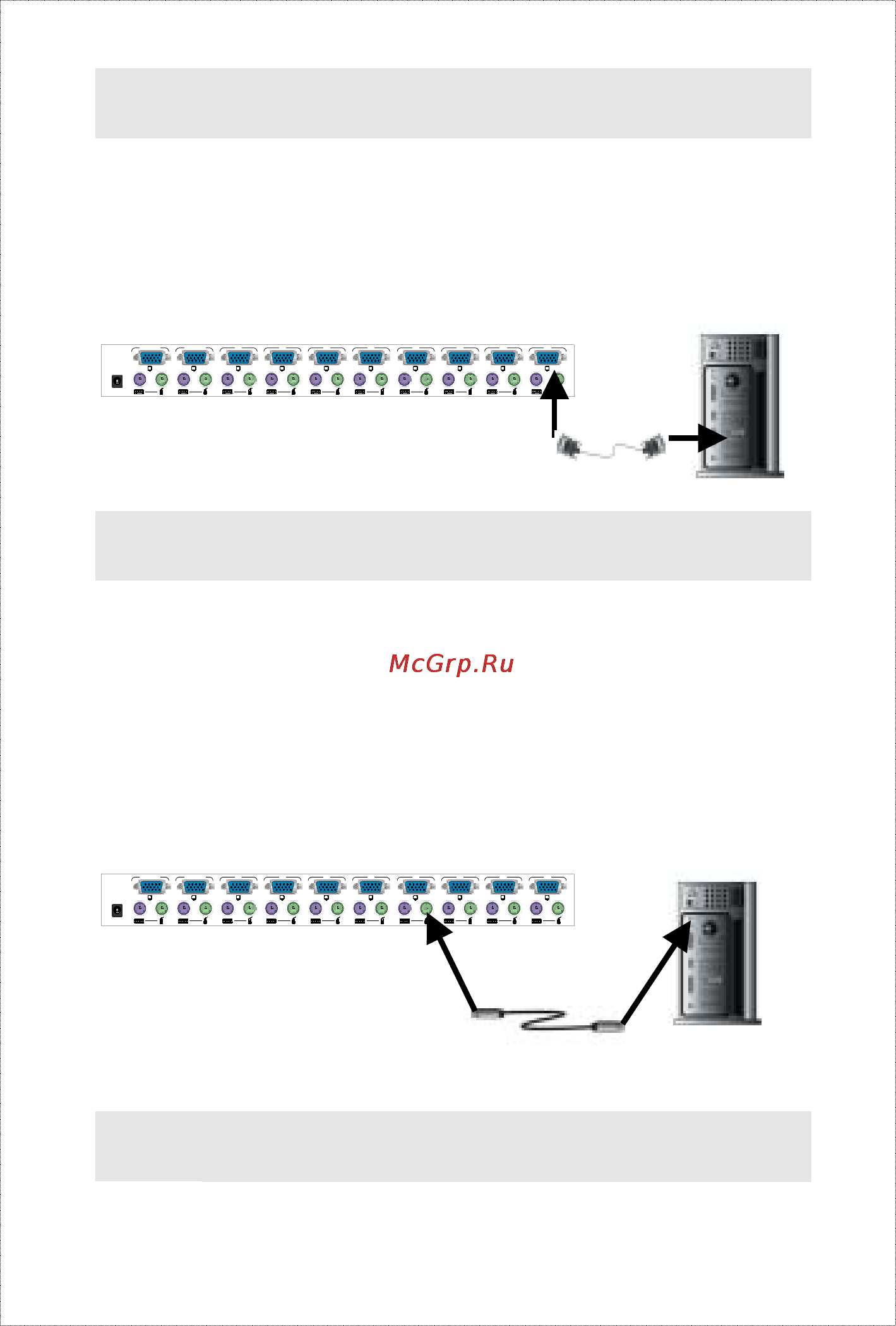

Step 5 Connecting VGA port of PC(s) to the KVM

Switch

Now the PC connections will be made with the monitor (VGA)

connections first. Connect a VGA cable (15-pin HDDB Male /

Male) with the Male side to both of the PC and the rear panel

of the KVM switch to the connector labeled VGA. Repeat this

for all PCs.

DC 12V

6 5

3 2 1Console port

Daisy-chain in

Step 6 Connecting Mouse port of PC(s) to the

KVM Switch

Connect the first computer’s mouse cable to the KVM Switch.

If using a PS/2 cable, connect one end to the PS/2 mouse port

on the computer, and the other end to the PS/2 mouse port on

the back of KVM Switch. If using a serial mouse cable (op-

tional), connect one end to a DB-9 serial port on the computer,

and the other end to the DB-9 serial mouse port on the back of

the KVM Switch. If you need Serial DB-9 to PS2 Mini Din 6 pin

adapter, please contact your supplier.

DC 12V

6 5

3 2 1Console port

Daisy-chain in

Step 7 Connecting Keyboard port of PC(s) to the

KVM Switch

Connect the first computer’s keyboard cable to the KVM

Switch. Using another PS/2 cable connect one end to PS/2

The rear side of PC
