SiBE041213E Main Functions
Function and Control 26

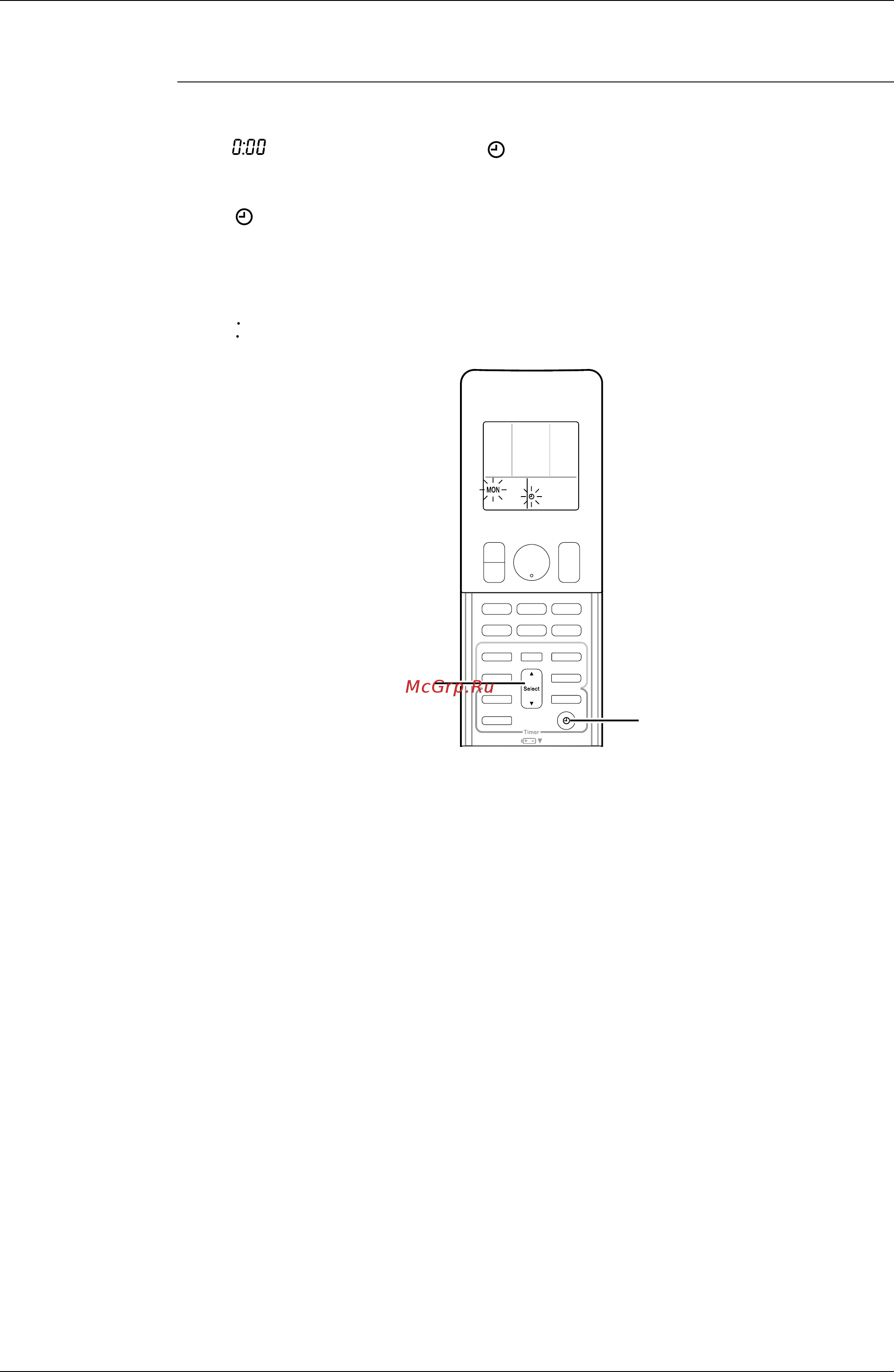

1.12 Clock Setting
ARC466 Series The clock can be set by taking the following steps:
1. Press the [CLOCK] button.
→ is displayed and MON and blink.
2. Press the [SELECT]
or
button to set the clock to the current day of the week.
3. Press the [CLOCK] button.
→ blinks.
4. Press the [SELECT]
or
button to set the clock to the present time.
Holding down the [SELECT]
or
button increases or decreases the time display rapidly.
5. Press the [CLOCK] button. (Point the remote controller at the indoor unit when pressing the
button.)
→ blinks and clock setting is completed.
(R18250)
0:00
SELECT
button
CLOCK
button
