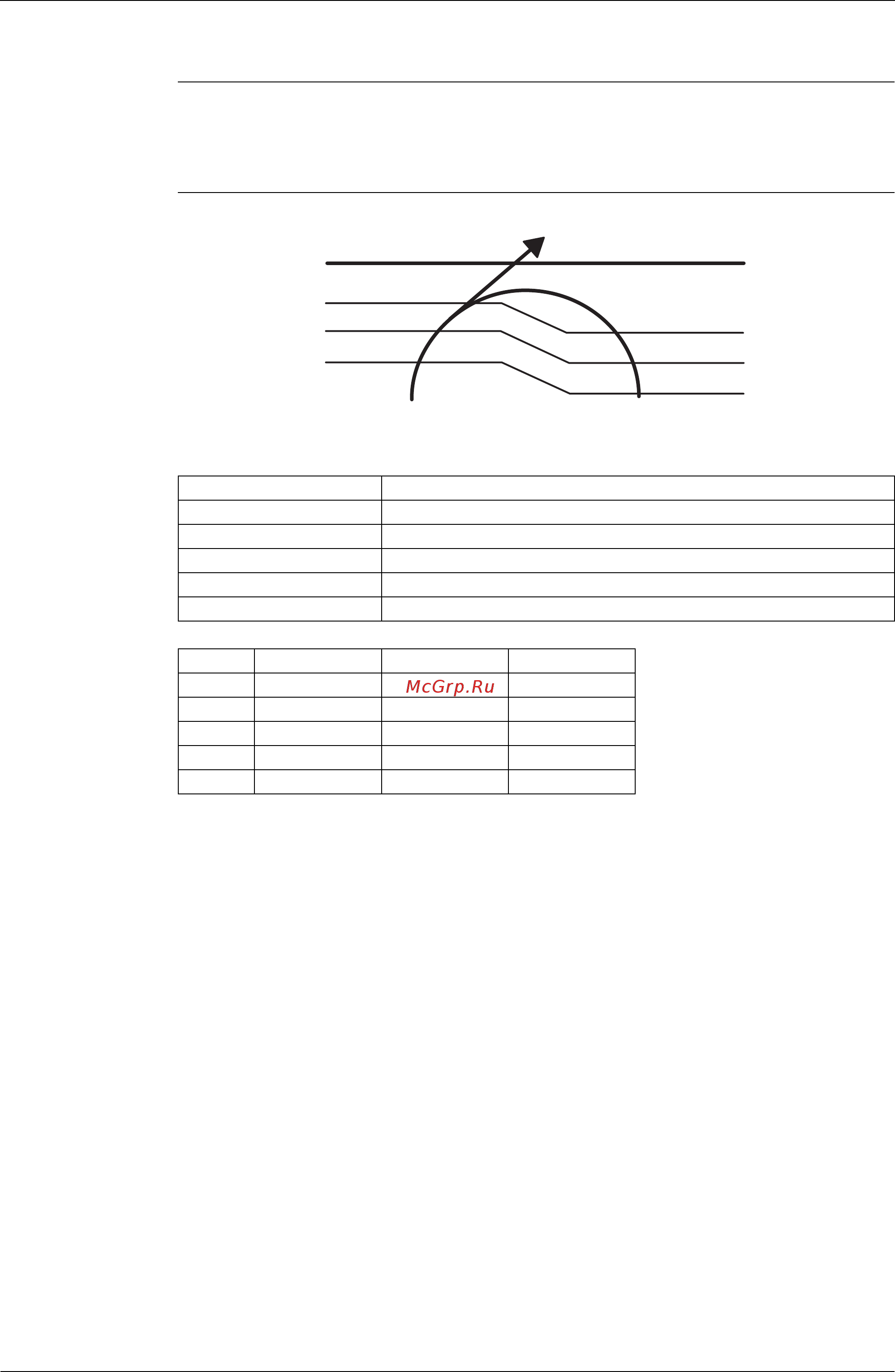

Control Specification SiBE041213E
39 Function and Control
3.4 Discharge Pipe Temperature Control
Outline The discharge pipe temperature is used as the internal temperature of the compressor. If the
discharge pipe temperature rises above a certain level, the upper limit of frequency is set to
keep the discharge pipe temperature from rising further.
Detail
Zone Control
Stop zone When the temperature reaches the stop zone, the compressor stops.
Dropping zone The upper limit of frequency decreases.
Keep zone The upper limit of frequency is kept.
Up zone The upper limit of frequency increases.
Reset zone The upper limit of frequency is canceled.
35 class 42 class 50 class
A (ºC) 110 110 110
B (ºC) 105 103 103
C (ºC) 101 102 101.5
D (ºC) 99 100 100
E (ºC) 97 95 95
(R14642)
Discharge pipe
temperature
Stop zone
Dropping zone
Keep zone
Up zone
Reset zone
E˚C
A˚C
B˚C
C˚C
D˚C
