SiBE041213E Main Functions
Function and Control 30

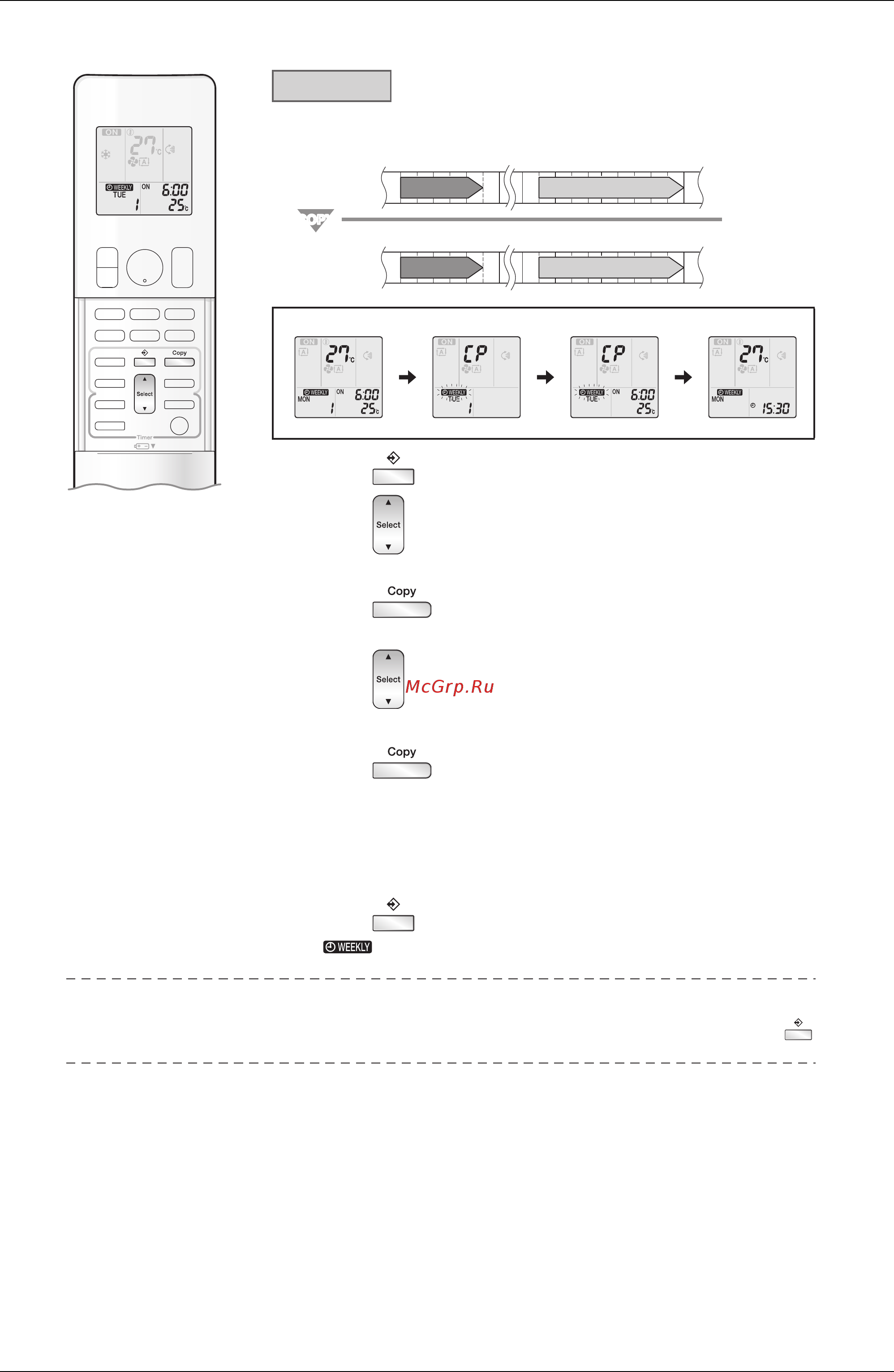

Copy mode
6:00 8:30 17:30 22:00
25˚C 27˚C
6:00 8:30 17:30 22:00
25˚C 27˚C
COPY
Program 1 Program 2 Program 3 Program 4
ON OFF ON OFF
[Monday]
Program 1 Program 2 Program 3 Program 4
ON OFF ON OFF
Setting Displays
Confirmation Copy Paste Normal
1.
Press .
3.
Press .
5.
Press .
• The whole reservation of the selected day of the week will be copied.
6.
Press to complete the setting.
• “ ” is displayed on the LCD and WEEKLY TIMER operation is activated.
NOTE
Note on copy mode
• The entire reservation of the source day of the week is copied in the copy mode.
• A reservation made once can be copied to another day of the week. The whole reservation
of the selected day of the week will be copied.
[Tuesday]
to
[Friday]
2.
Press to confirm the day of the week to
be copied.
4.
Press to select the destination day of the
week.
• Be sure to direct the remote controller toward the indoor unit and check for a receiving
tone and flashing the OPERATION lamp.
• The reservation will be copied to the selected day of the week. The whole reservation
of the selected day of the week will be copied.
• To continue copying the settings to other days of the week, repeat step
4
and step
5
.
• The TIMER lamp lights yellow.
In the case of making a reservation change for any day of the week individually after copying the content of weekly reservations, press
and change the settings in the steps of setting mode.
COPY
