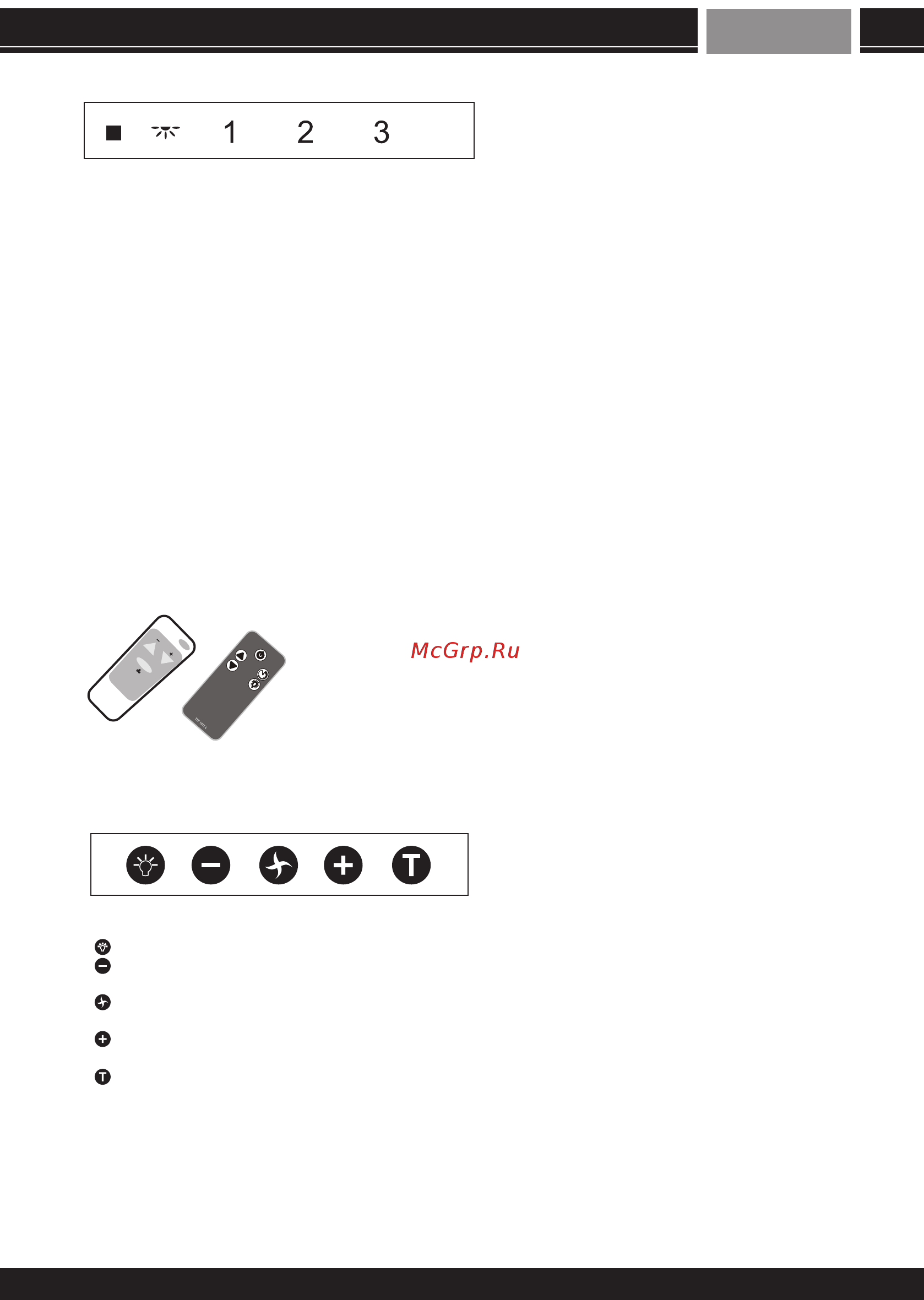

2 - TYPE - SEQUENTIAL TOUCH SCREEN REMOTE CONTROL

Programmed in 3 cycles - Used for T2004-1 and T2004 engines

1-2-3:Turns on and off the engine. The engine initially starts from the 2nd cycle. Push the button of the cycle that you want to operate.

Engine Button:

1- After the engine is started with On/Off, it operates the engine in the 1st cycle.

2- After the engine is started with On/Off, it operates the engine in the 2nd cycle.

3- After the engine is started with On/Off, it operates the engine in the 3rd cycle.

Timer: When the button of the cycle in operation is pushed for approximately 2 seconds, 5-minute countdown timer starts. When the timer

is set, the LED of the cycle in which the timer was activated ashes. After 5 minutes expire, the engine and the lamp, if on, will switch off.

Timer is cancelled when the engine is switched off or the cycle is changed.

You can control devices with this controller by

using the its remote controller (Figure 4)

3- TYPE HM - MULTICOLOR CONTROLLER

It is programmed with 9 rotation speeds. It is used for T2004-1 and T2004 engines.

Lamp Button: The lamp button controls the ventilation hood’s lighting. The led will be on when the lighting is on.

Rotation Speed Button: It reduces rotation speed while the engine is operating. When the lowest value is reached by pressing the

-- button, the -- led will ash.

On / Off Button: It stops the engine while it is operating and starts it when it is off.

The engine will start its operation at the last rotation

speed set prior to shutdown.

Rotation + Button: It increases rotation speed while the engine is operating. When the lowest value is reached by pressing the +

button, the + led will ash.

Turbo Timer Button: When you press the Turbo Timer button, the engine will operate at the highest rotation speed and it will be

programmed for automatic shutdown after 5 minutes. The motor operation will revert to normal if you press ROTATION- or ROTATION+ when

the timer is on but the timer will continue. When the times is on, the timer led will be on and automatic shutdown will initiate after 5 minutes.

The state of the led light will not change though.

If you press the timer button when the timer is on, the engine will shut down.

Filter Warning:

After the engine reaches 60 hours of operation period: The M.on/off led light will ash for 5 seconds when the warning period is expired after

starting the engine by pressing either the M.on/off or the turbo timer button.

After cleaning the lter, you can reset the lter time by keeping the M.on/off button pressed (for about 5 seconds).

When the lter time is reset, the M.on/off led light will ash once.
