EdgeRouter
™
PoE Quick Start Guide
Configuring PoE Settings
The PoE setting for ports eth0-eth4 is set to Off by default.
WARNING: Before activating PoE, ensure that the connected
device supports passive PoE and the supplied voltage.

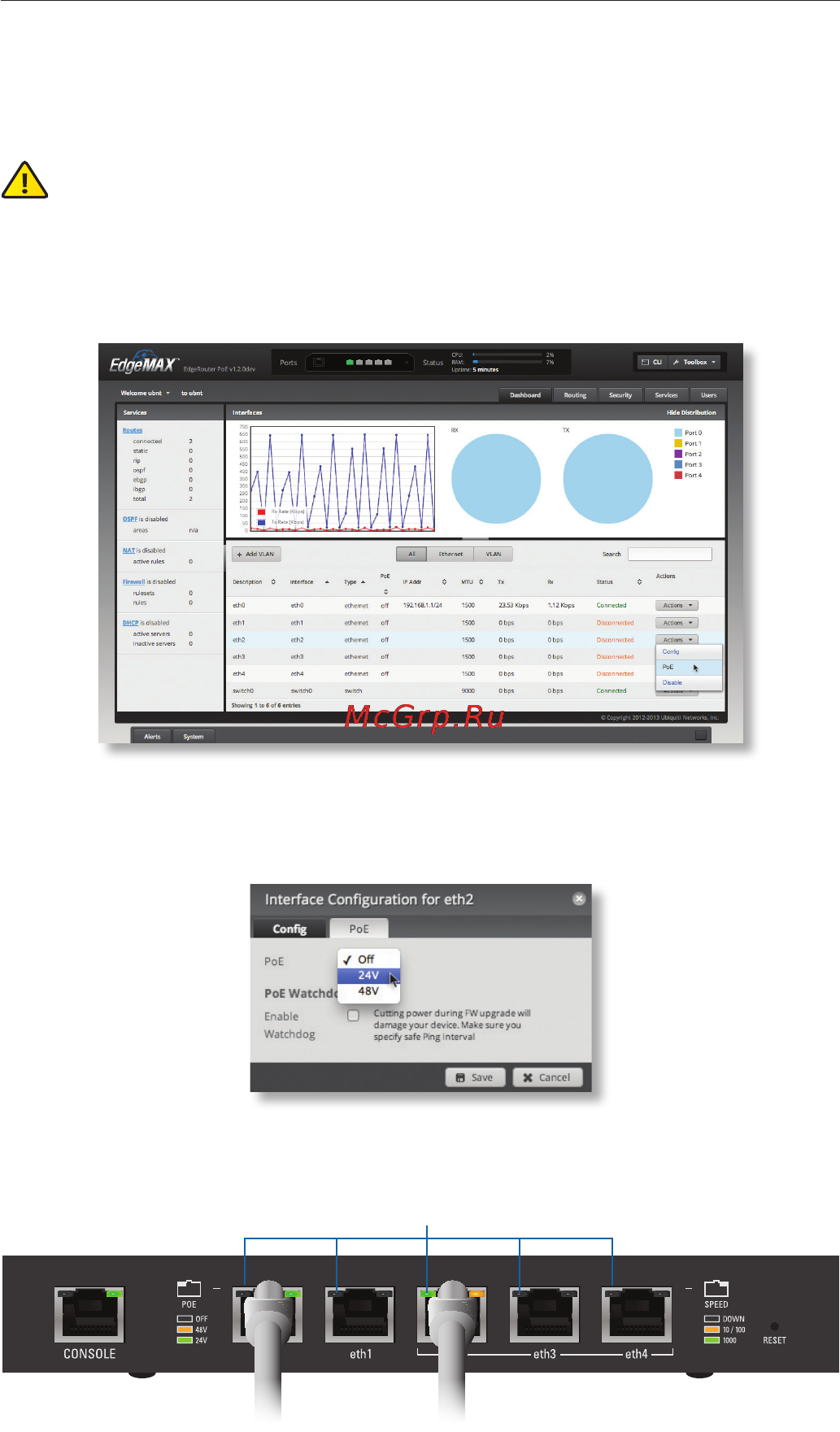

1. In the Dashboard tab, click Actions > PoE of the Ethernet port
you want to configure.
2. The Interface Configuration window will appear. Select the
appropriate PoE setting*, and click Save.
The PoE LED on the Ethernet port will confirm the PoE setting.
PoE
