Ubiquiti EdgeRouter POE [9/20] Accessing the edgeos configuration interface
![Ubiquiti EdgeRouter POE [9/20] Accessing the edgeos configuration interface](/views2/1072899/page9/bg9.png)
7
Hardware Installation

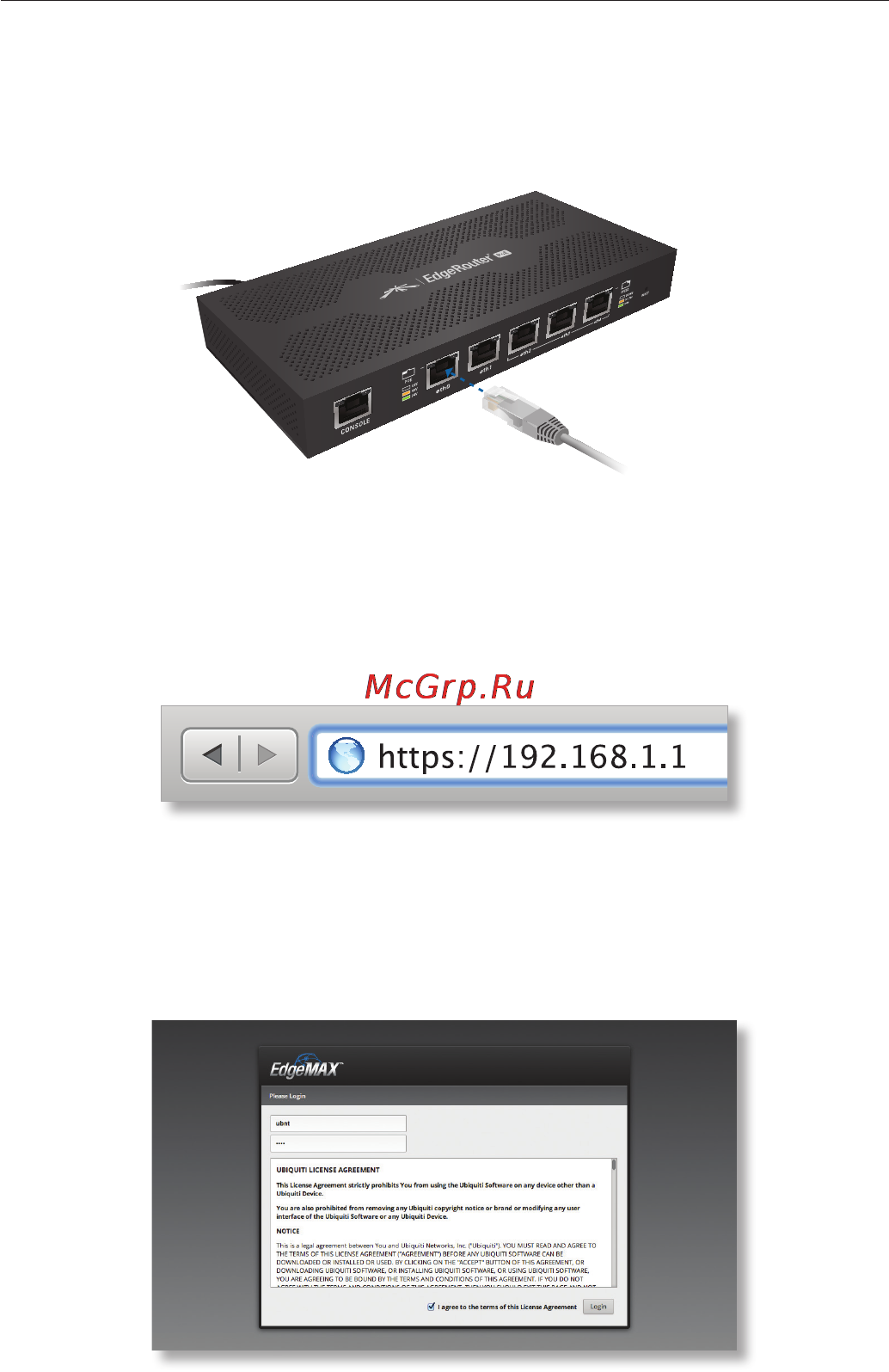

Accessing the EdgeOS Configuration Interface
1. Connect an Ethernet cable from the Ethernet port of your
computer to the port labeled eth0 on the EdgeRouter PoE.
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet (e.g., 192.168.1.100).
3. Launch your web browser. Type https://192.168.1.1 in the
address field, and press enter (PC) or return (Mac).
4. The login screen will appear. Enter ubnt in the Username
and Password fields. Read the Ubiquiti License Agreement,
and check the box next to I agree to the terms of this License
Agreement to accept it. Click Login.
The EdgeOS Configuration Interface will appear, allowing you to
customize your settings as needed.
