3

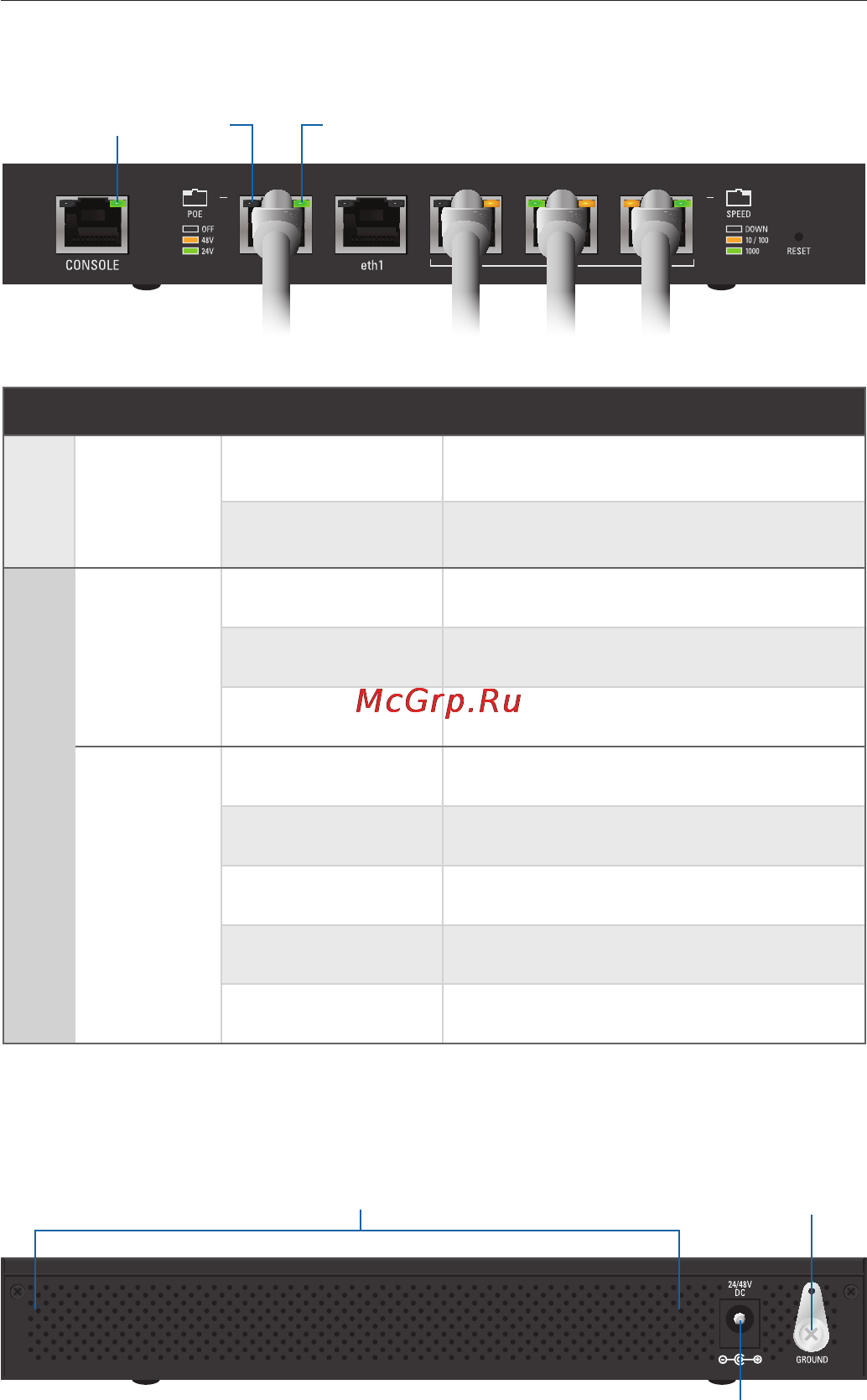

Back Panel
Front Panel LEDs
Power Speed/Link/ActPoE
LED State Status
Console
Power
Off Power off
Green Power on
Ethernet (eth0-eth4)
PoE
Off No Power over Ethernet
Green 24V Power over Ethernet
Amber 48V Power over Ethernet*
Speed/
Link/Act
Off No Link
Amber Link Established at 10/100 Mbps
Amber Flashing Link Activity at 10/100 Mbps
Green Link Established at 1000 Mbps
Green Flashing Link Activity at 1000 Mbps
* 48V available when using 48VDC Power Adapter
Back Panel
Power
Grounding Point
Ventilation Holes
