2
EdgeRouter
™
PoE Quick Start Guide

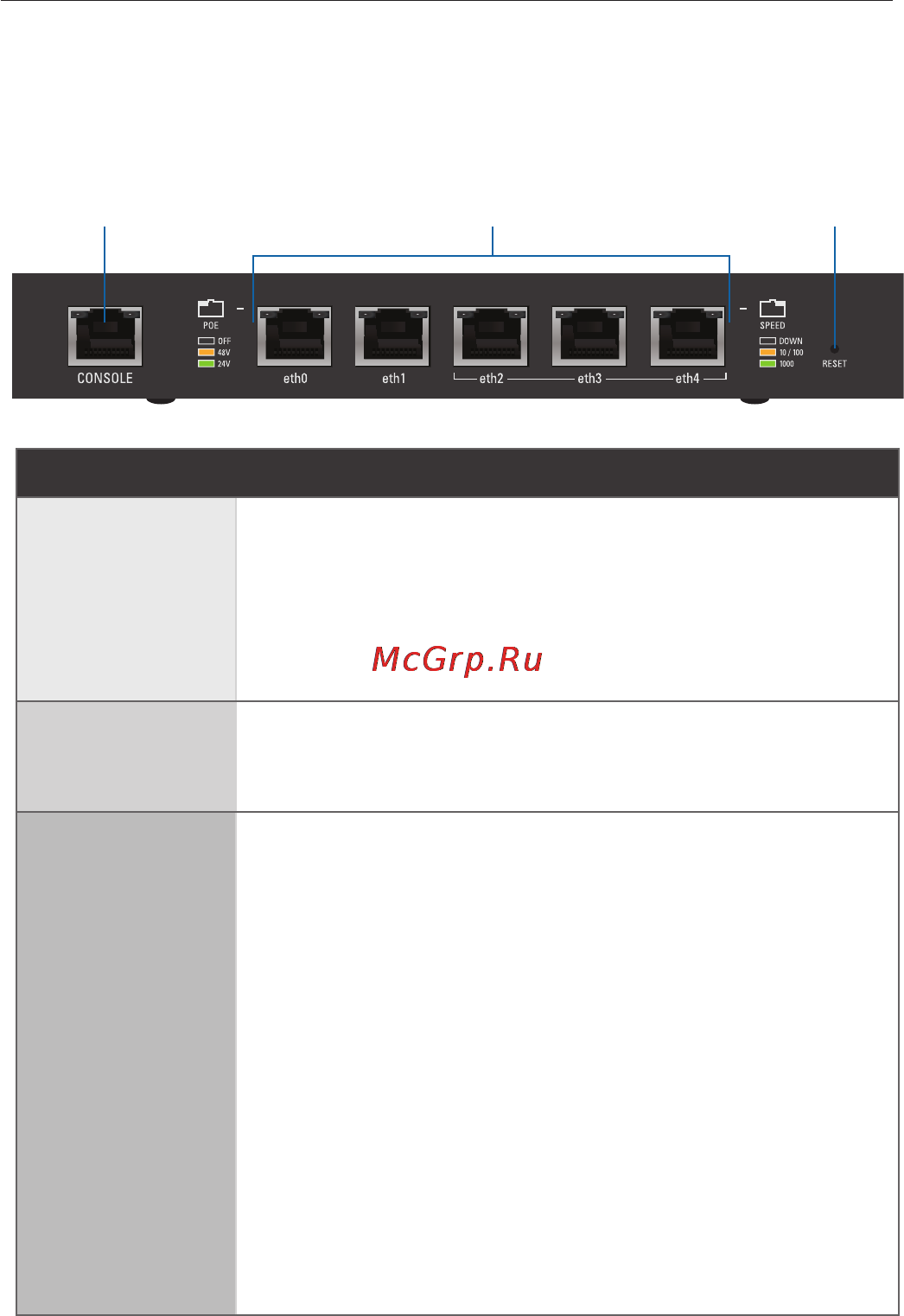

Hardware Overview
Front Panel Ports
Console
ResetEthernet (eth0-eth4)
Interface Description
Console
RJ45 serial console port for Command Line Interface
(CLI) management. Use a RJ45-to-DB9, serial console
cable, also known as a rollover cable, to connect the
Console port to your computer. (If your computer
does not have a DB9 port, then you will also need a
DB9 adapter.)
Ethernet
(eth0-eth4)
10/100/1000 Mbps ports for routing and PoE. Ports
eth2, eth3, and eth4 can be configured for switching
using the EdgeOS Configuration Interface.
Reset
There are two methods to reset the EdgeRouter PoE
to factory defaults:
• Runtime reset (recommended) The EdgeRouter PoE
should be running after bootup is complete. Press
and hold the Reset button for about 10seconds
until the right LED on port eth4 starts flashing
and then becomes solidly lit. After a few seconds,
the LED will turn off, and the EdgeRouter PoE will
automatically reboot.
• Power-on reset Disconnect the Power Cord from
the Power Adapter. Press and hold the Reset
button while connecting the Power Cord to the
Power Adapter. Keep holding the button until the
right LED on port eth4 starts flashing and then
stops flashing after a few seconds.
