3
1
PANEL DESCRIPTION
01

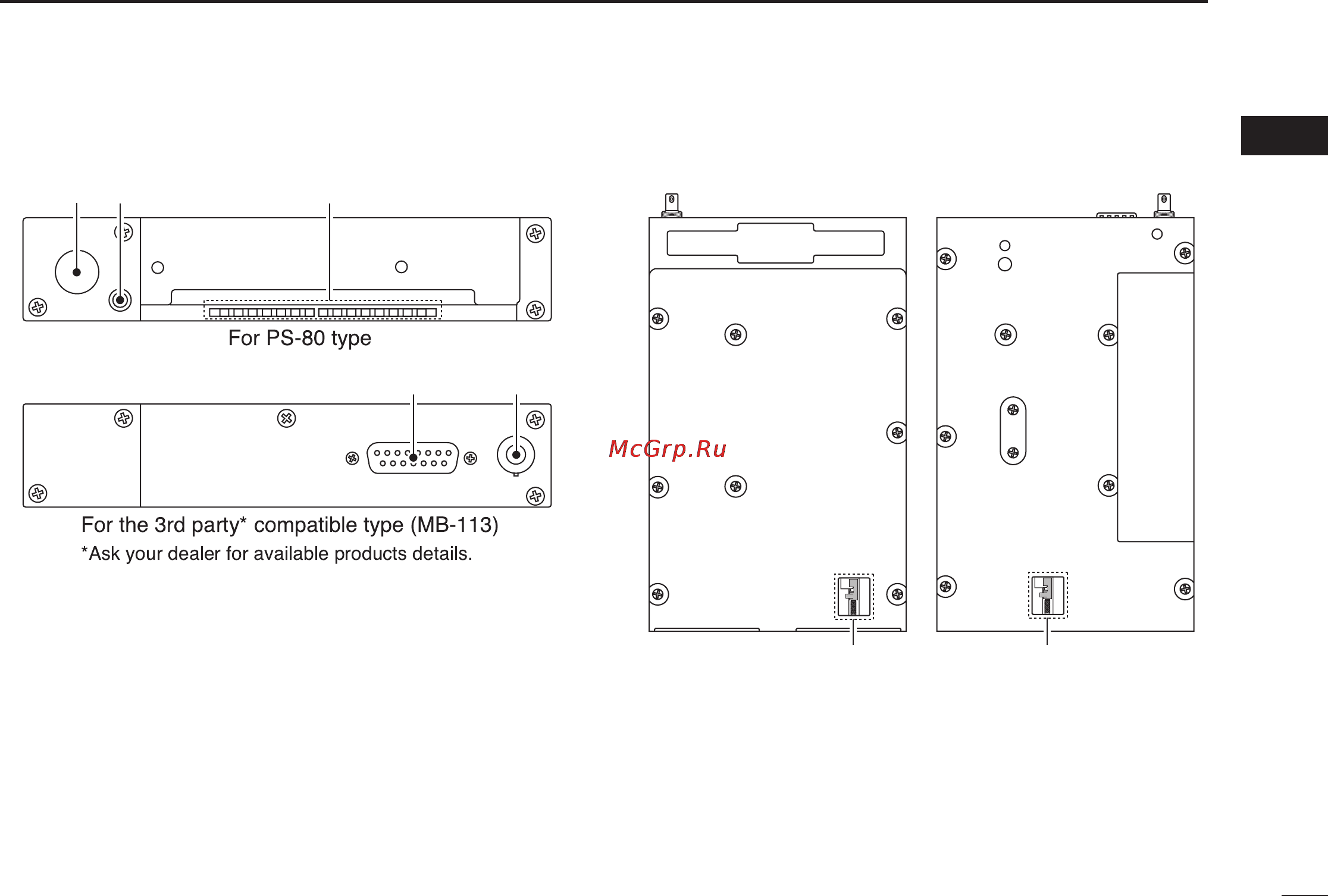

■ Rear panel
q ANTENNA CONNECTOR
Connects an antenna connector.
w DATA JACK
Connects a 3rd party GPS receiver*
1
or optional cloning
cable (OPC-1529R). Refer to p.29 for details.
*
1
Ask your dealer for available GPS receiver details.
e DC, MICROPHONE, SPEAKER AND HEADPHONE
JACK
Connects a 13.8 V or 27.5 V DC power supply, speaker
and headphone.
Refer to the “INSTALLATION GUIDE” in details.
■ Main unit
q Metal catch (For Icom products)
Use to attach to an installation rack for Icom products
(p. 28).
w Metal catch (For 3rd party products*)
Use to attach to an installation rack for 3rd party products*
(p. 28).
*Ask your dealer for available products details.
q w
e q
e
• Top view
• Bottom view
q w
IC-A210.qxd 2007.07.24 2:06 PM Page 3
