PASSPORT OPERATION
■ Transmitting a call
D Group call
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group in
which the group ID is pre-programmed.
wWhilepushingandholding[PTT], speak into the micro-
phone at a normal voice level after a beep is emitted.
•Ifanerrorbeepisemitted,release[PTT]. After a while, repeat
step w again.
•ThebeepcanbeturnedOFFinUsersetmode.
•Whenthetransceiverisoutofthecommunicationarea,“ ”
disappears,and“NOSVC”messageappears.
D Individual call
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group in
which the MID (Mobile ID) is pre-programmed.
wWhilepushingandholding[PTT], speak into the micro-
phone at a normal voice level after a beep is emitted.
•Ifanerrorbeepisemitted,release[PTT]. After a while, repeat
step w again.
•ThebeepcanbeturnedOFFinUsersetmode.
•Whenthetransceiverisoutofthecommunicationarea,“ ”
disappears,and“NOSVC”messageappears.
e To finish the conversation, push [DOWN] to send the
“ClearDown”signal.
D Selective call (DTMF call)
—Optional UT-108 is required—
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group.
w Push [Send DTMF]— a DTMF encode channel appears.
e Push [UP] or [DOWN] to select the desired DTMF en-
code channel.
r Push [PTT] to transmit the selected DTMF code in the
selected DTMF channel.
•Push[P0] to cancel the DTMF transmission.
D Phone call (Available for 10-keypad version only)
q Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the Passport system channel or talk group.

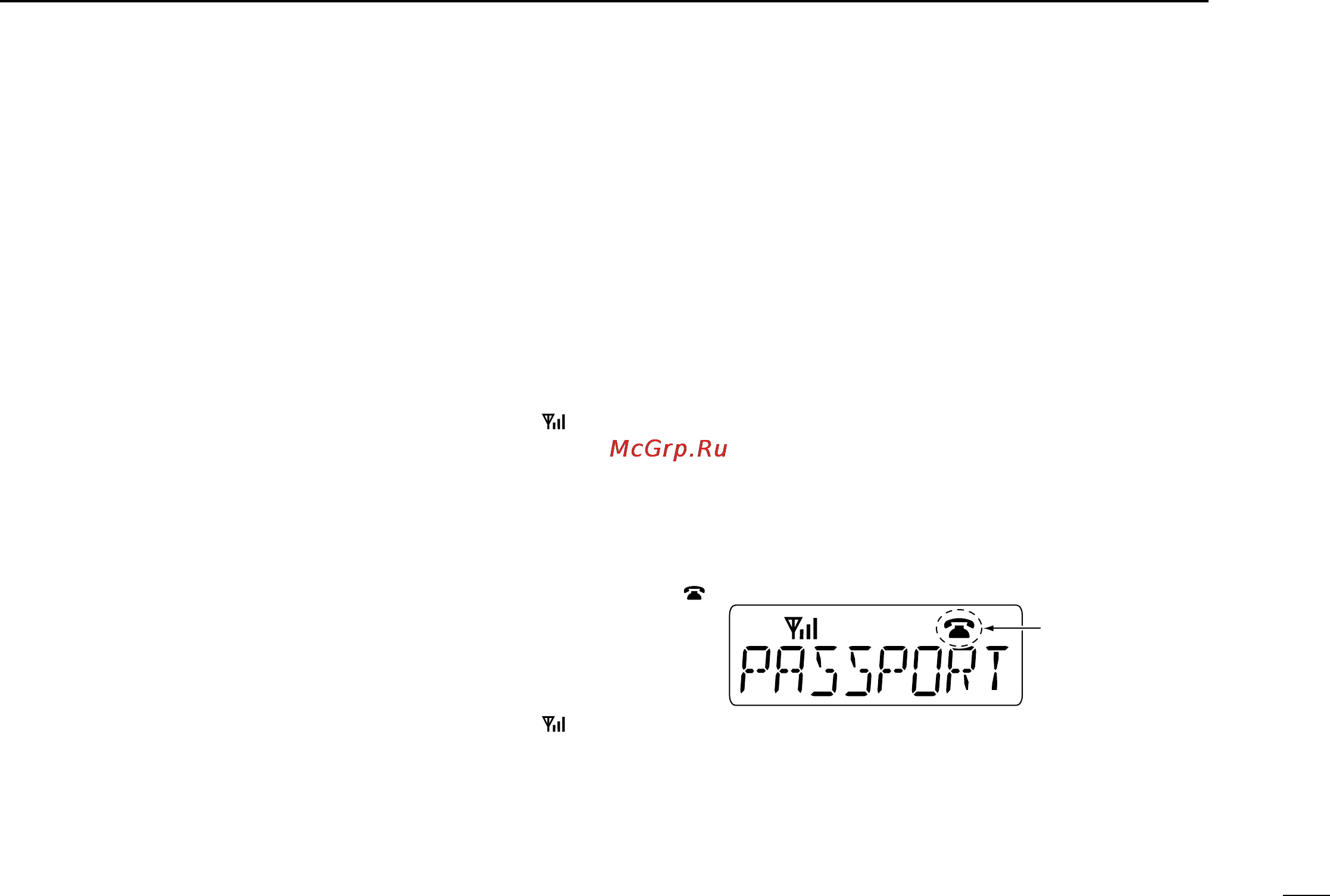

w Push [Phone request] to enable the phone call.
•“ ”appears.
Appears
e Push [PTT] to connect the phone line.
•Theproceedtoneisemittedafterconnectiontothephoneline.
r
Whilepushingandholding[PTT], enter the phone number
via the 10-keypad to make the call. Then release [PTT].
t Push [PTT] to transmit; release to receive.
y Push [#] while pushing [PTT] to finish the communication.
