PANEL DESCRIPTION

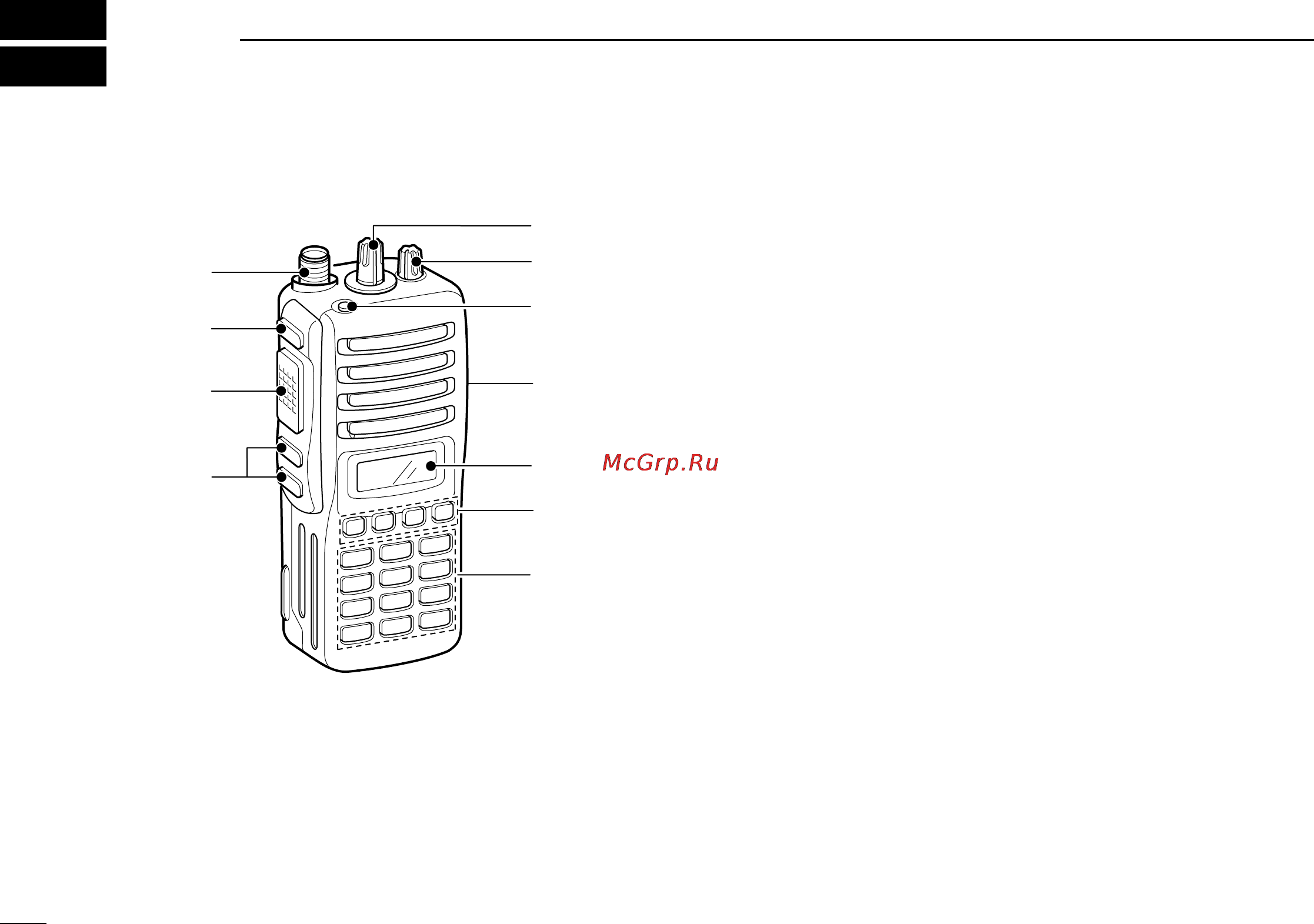

■ Front panel

q ROTARY SELECTOR

Selects the pre-programmed system channels or talk

groups (Max. 16) on the LTR/Passport system.

(Depending on the pre-setting)

w VOLUME CONTROL [VOL]

 Turns power ON and adjusts the audio level.

e EMERGENCY KEY

 Push to transmit the DTMF emergency call.

r [SP]/[MIC] JACK

Connect the optional speaker-microphone.

 •Attachthejackcoverwhentheoptionalspeaker-microphoneis

not used. (p. 2)

t FUNCTION DISPLAY

Displays a variety of information such as operating chan-

nel name, DTMF encode channel, selected function, etc.

y DEALER-PROGRAMMABLE KEYS [P0] to [P3]

Desired functions can be programmed independently by

your dealer.

u 10-KEYPAD (Depending on version)

Used to enter DTMF encode channel, phone number, etc.

i UP/DOWN [∫]/[√] KEYS

➥ Push to select the operating channel.

➥ Push to select the talk group on the LTR or Passport

system. (p. 9)

o PTT SWITCH [PTT]

 Push and hold to transmit; release to receive.

!0 MONITOR KEY

Push to mute and release the CTCSS (DTCS) squelch

mute. Open squelch/deactivate mute while pushing this

key.

!1 ANTENNA CONNECTOR

 Connects the supplied antenna.

10-keypad version
