BATTERY CHARGING
D Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously.
Charging period: Approximately 3 hours (with BP-232H)
The following items are additionally required:
•SixAD-106chargeradapters(purchaseseparately)
•AnACadapterortheDCpowercable(OPC-656)
IMPORTANT: Battery charging
Ensure the guide Tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.

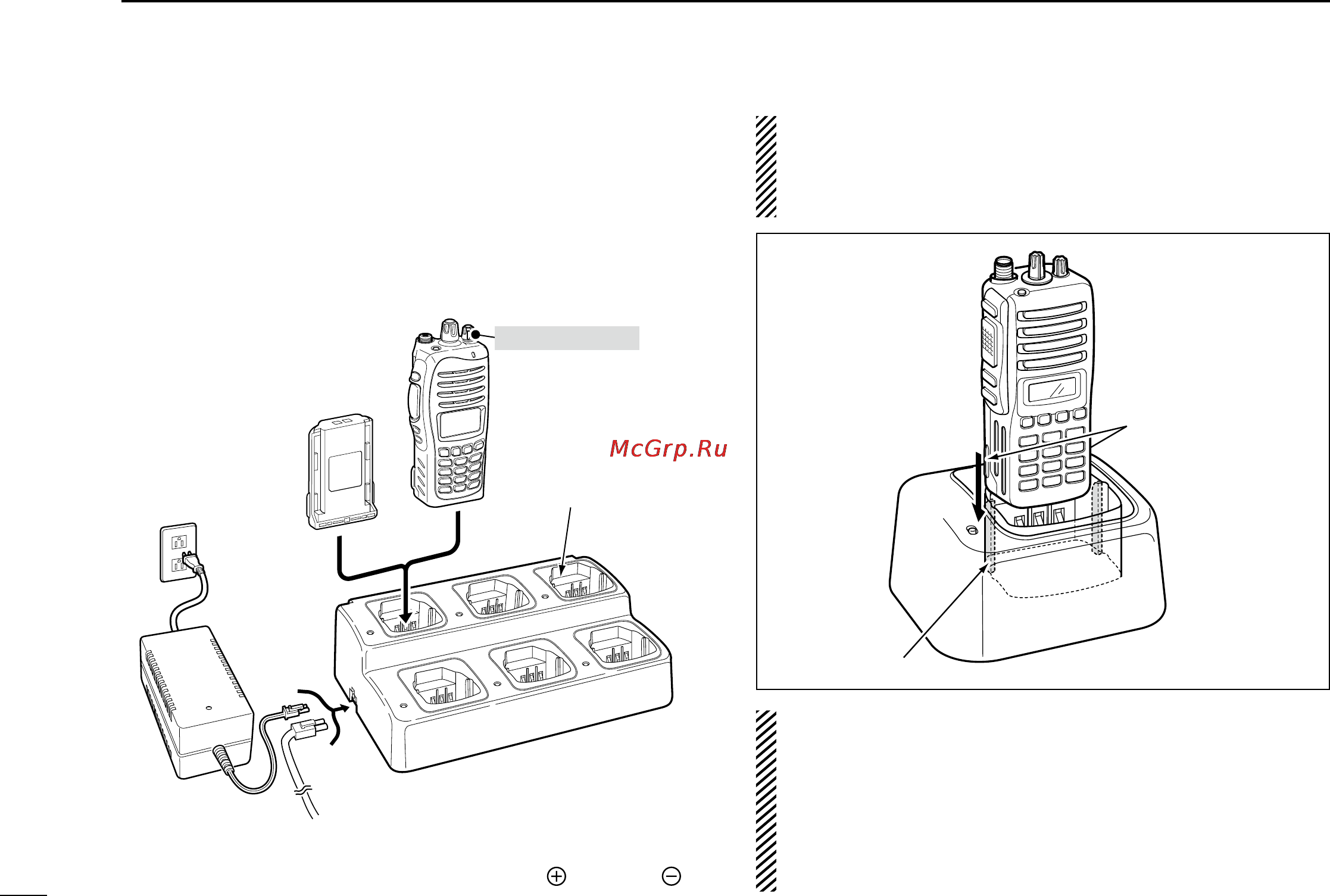

(This illustration shows the BC-119N.)
AD-106 charger
adapters are installed
in each slot.
AC adapter
(Purchase
separately)
Transceiver
Battery
pack
Tu rn power OFF
DC power cable (OPC-656*)
(Connect with a DC power supply;
13.8 V/at least 7 A)
*About the OPC-656
Red line: Black line:
CAUTION:
When using the OPC-515L/OPC-656 DC power cable
NEVER reverse the polarity when connecting the OPC-
515L/OPC-656 to a power source. This will ruin the battery
charger.
OPC-515L:Whiteline:+, Black line: _
OPC-656 : Red line: +, Black line: _
Tabs
Guide rail
