Icom IC-F43TR [27/40] Battery charging

BATTERY CHARGING

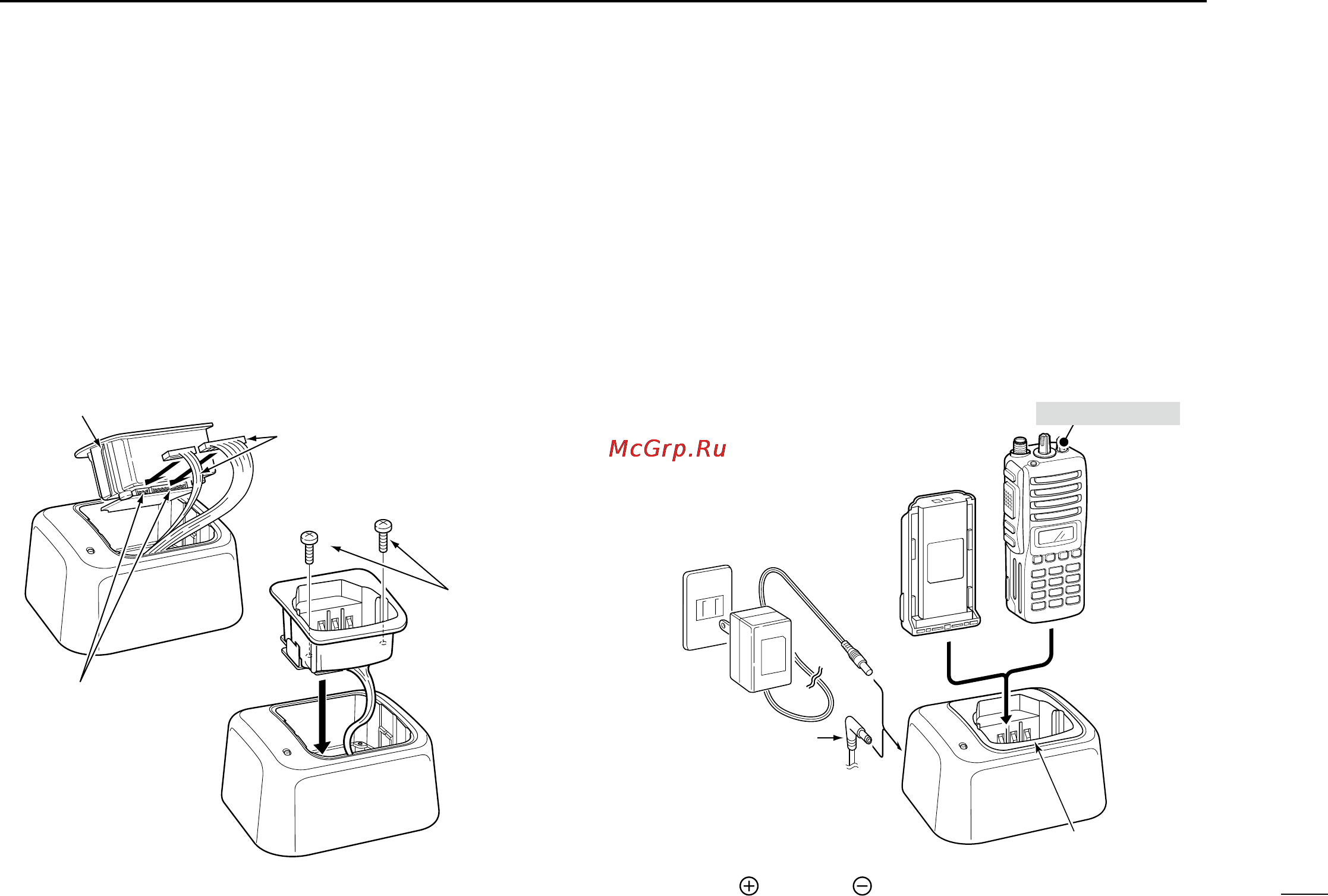

D AD-106 installation

The AD-106 c h a r g e r a d a p t e r must be installed into the

BC-119N or BC-121N before battery charging.

q Attach the plugs from the BC-119N/BC-121N to the AD-

106

c h a r g e r a d a p t e r .

w Secure the AD-106 into the holder space of the BC-119N/

BC-121N with the supplied screws.

D Rapid charging with the BC-119N+AD-106

The optional BC-119N provides rapid charging of battery

packs.

Charging period: Approximately 3 hours (with BP-232H)

The following items are additionally required:

•AD-106

c h a r g e r a d a p t e r (purchase separately)

•AnACadapter(maybesuppliedwithBC-119Ndepending

on version) or the DC power cable (OPC-515L/CP-23L).

AD-106 charger

adapter is installed

in BC-119N.

AC adapter

(A different type, or no AC

adapter is supplied, de-

pending on the version.)

About OPC-515L

White line: Black line

Optional OPC-515L*

(for power source) or

CP-23L (for 12 V ciga-

rette lighter socket)

can be used instead

of the AC adapter.

Transceiver

Battery

pack

Tu rn power OFF

Screws supplied

with the charger

adapter

Desktop charger adapter

Plugs

Sockets

* This illustration shows the BC-119N.
