8
3
BATTERY PACKS AND CHARGING
D Operation with an optional cable

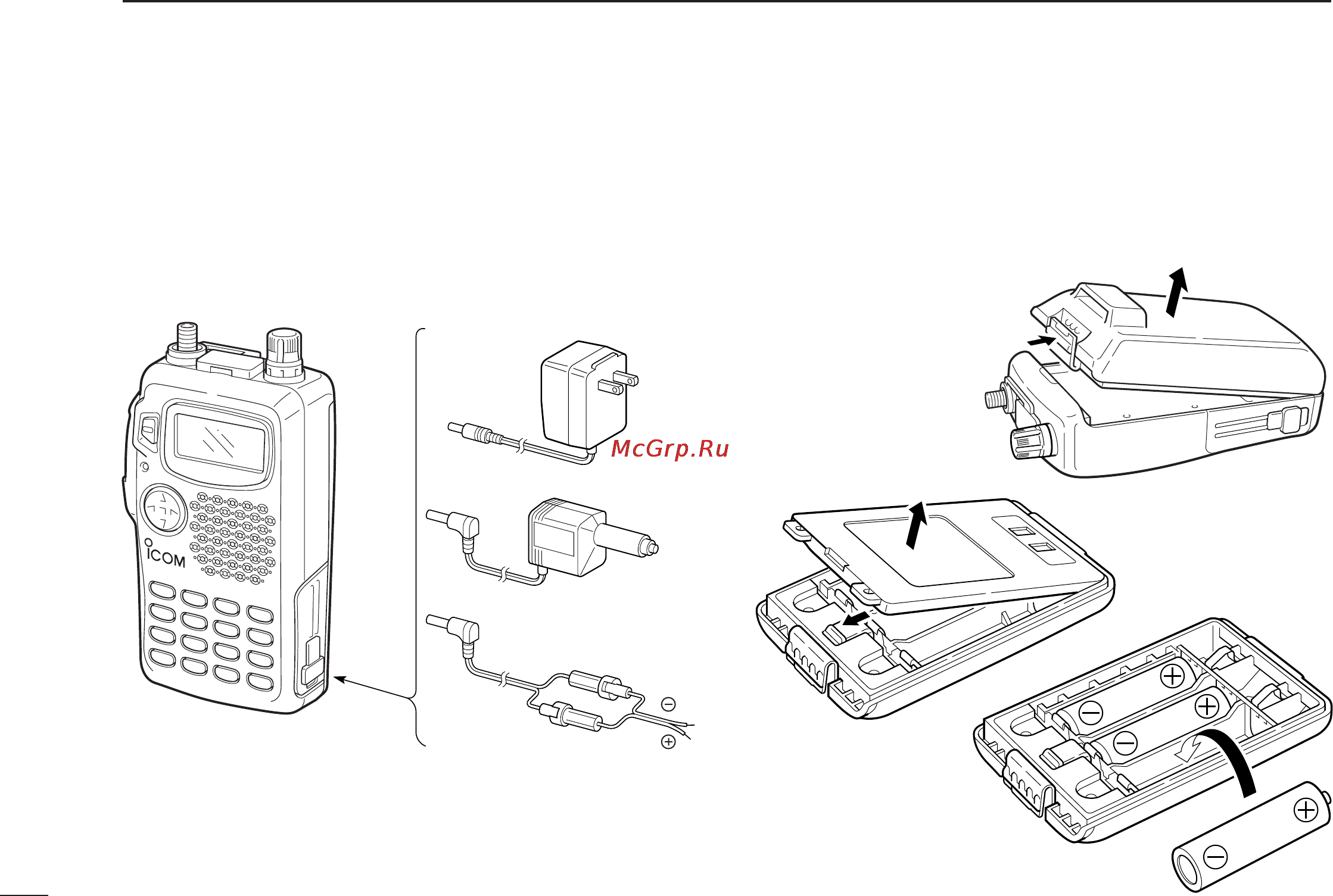

Connect an optional charger or cable to the transceiver as il-
lustrated below. Be careful of battery overcharging as the
connected battery is charged simultaneously.
u CAUTION: When the BP-197
BATTERY CASE
is con-
nected, charging cannot take place.
Wall charger
OPC-254L
(optional)
To
[DC13.5V]
black
white
CP-12L
(optional)
*To charge the battery pack
13 to 16 V DC is necessary.
■ Battery case
When using a battery case attached to the transceiver, install
3 AA(R6) size alkaline batteries as illustrated below.
Remove the case from the
transceiver.
Install 3 AA(R6) size alkaline
batteries into the battery case.
Open the case.
IC-T81A/E Manual-(1) 01.12.5 6:55 PM Page 8 (1,1)
