■ Receive mode
The IC-T81A/E allows you to receive frequencies in the 50
MHz band in AM mode (as well as to transmit in FM narrow
mode in the 144 MHz band for Italy, France and Europe ver-
sions only—see p. 12).

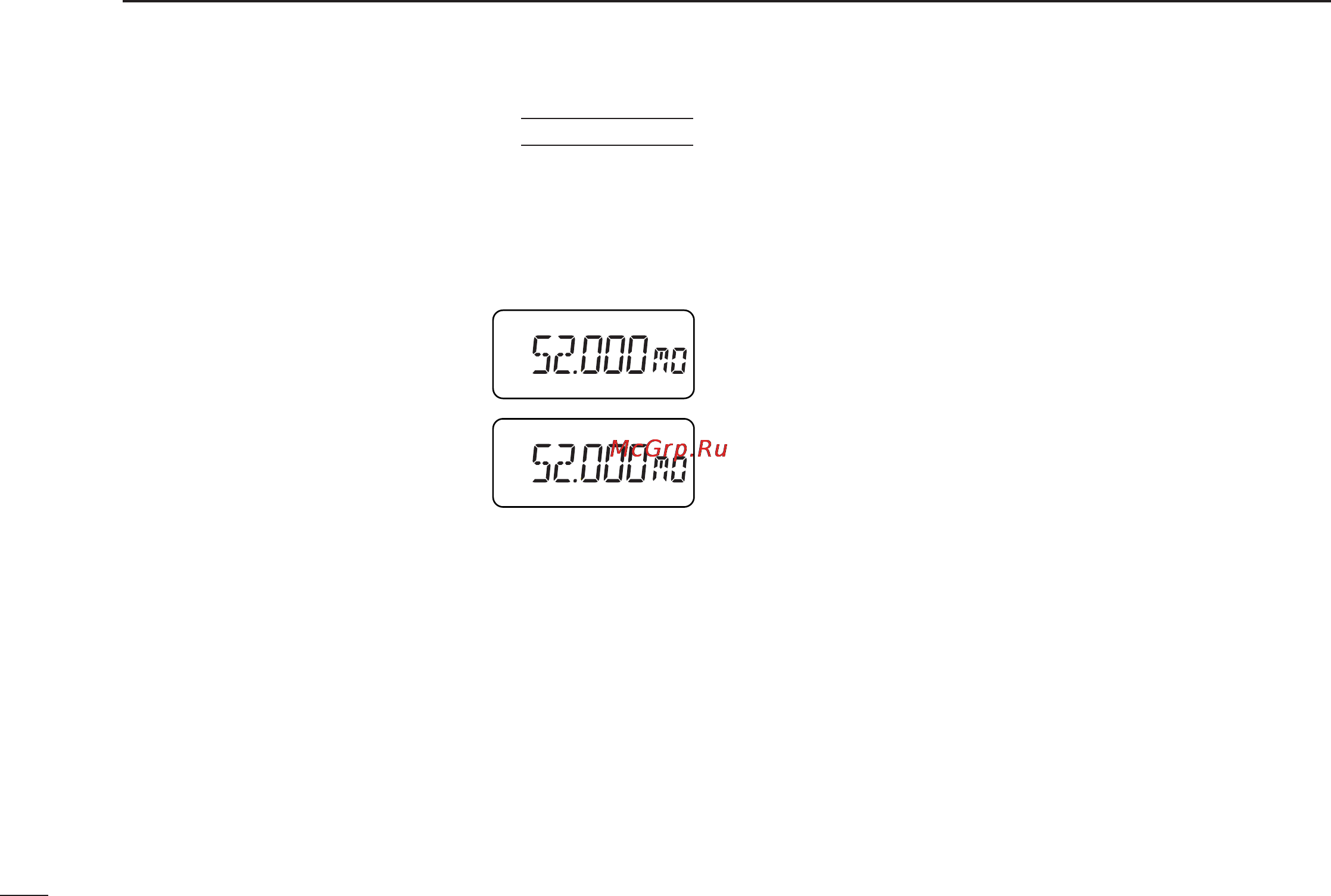

➀ Push [VFO] to select VFO mode.
➁ Push [MULTI(↔)] one or more
times to select the 50 MHz band.
➂ Push [MULTI] for 1 sec. to enter set
mode.
➃ Push [MULTI(↕)] one or more times
until “MO” appears.
➄ Push [MULTI(↔)] (or rotate [DIAL])
one or more times to select “AM.”
➅ Push [VFO] to exit set mode and return to VFO mode.
•“AM” appears when frequencies in the 50 MHz band are se-
lected.
☞ NOTE:
➥ When AM operation is selected, transmit is not possible.
When [PTT] is pushed, “OFF” appears.
➥ AM operation can also be selected for individual mem-
ory channels programmed with 50 MHz frequencies. In
this way you can program individual frequencies for AM
receive while allowing regular transmit/receive for 50
MHz frequencies in VFO mode.
USING
SET MODE
AM
