20
6
MEMORY/CALL PROGRAMMING
■ Memory names
Memory channels can be programmed with names of up to
six characters.

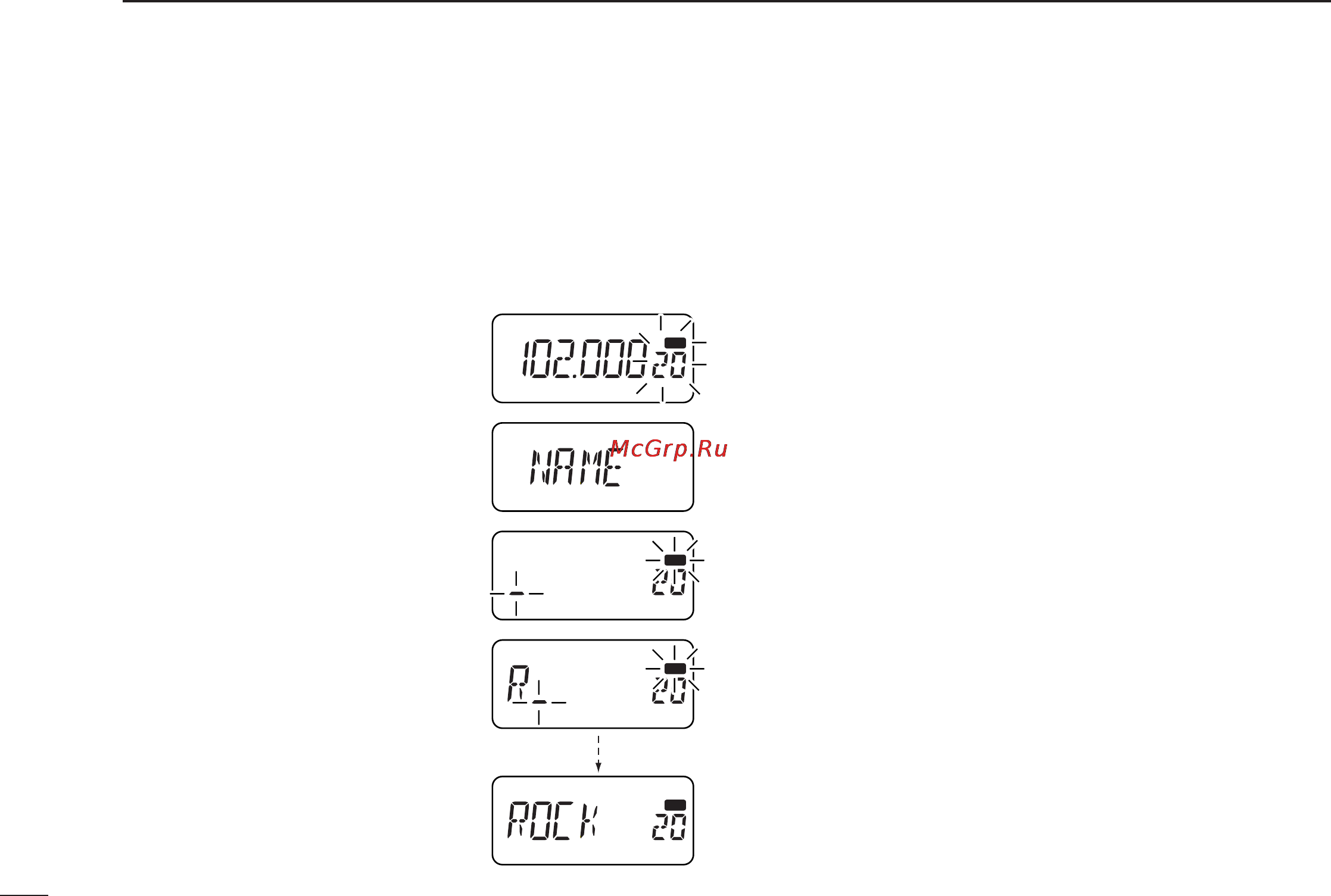

➀ Push [VFO] to select VFO mode (or select a memory chan-
nel).
➁ Push [(MR)MW] for 1 sec.
•“X” and the previously selected
memory channel number flash.
➂ Push [MULTI(↔)] (or rotate [DIAL])
to select the desired memory chan-
nel.
➃ Push [MULTI(↕)] so that “NAME”
appears.
• Not valid for call channels.
➄ Push [MULTI] to enter name editing
mode.
• The first character of the name flashes.
➅ Rotate [DIAL] (or push [MULTI(↕)]
to select a character; then, push
[MULTI(
↔)] to advance to the next
character.
➆ Repeat step ➅ until the desired
name appears.
➇ Push [MULTI] to program the name
and return to the “NAME” display;
then push [VFO] to return to VFO
MR
FMW
MR
FMW
MR
FMW
MR
FMW
mode.
• Push [(MR)MW] for 1 sec. to erase a channel’s name and return
to VFO mode.
• When in memory mode push [MR] to toggle between memory
name indication and frequency indication.
☞ NOTE: To clear a memory name (or remove one or more
characters from a name) without clearing the rest of the
memory channel contents, follow steps
➀ to ➇ at left and
insert an underscore “_” in place of other characters in
steps
➅ and ➆.
IC-T81A/E Manual-(1) 01.12.5 6:55 PM Page 20 (1,1)
