BASIC OPERATION
■ FM broadcast reception

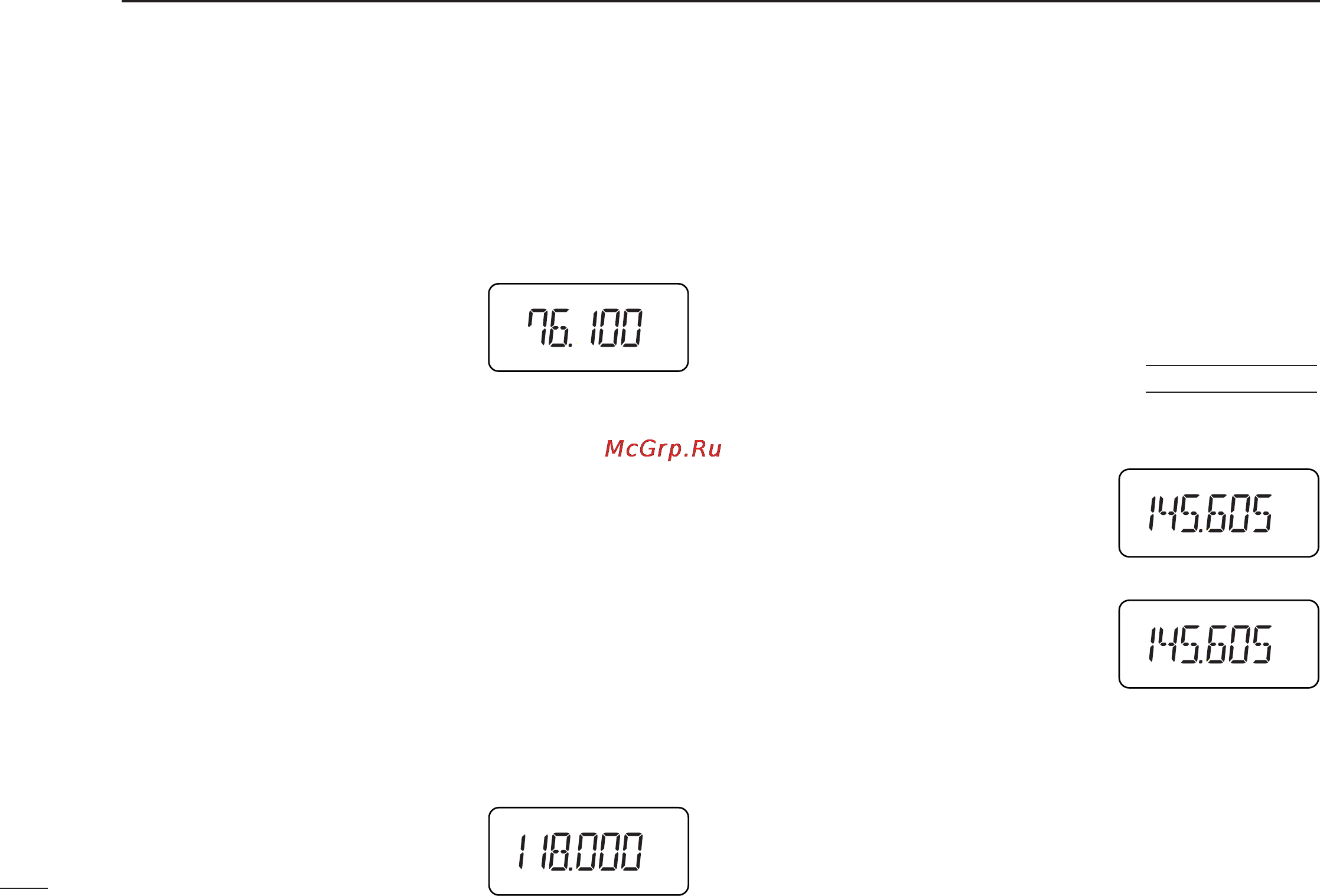

The transceiver can receive FM radio broadcasts. These are
typically in the range 76–107.995 MHz (88–107.995 for some
versions) and are in WFM receive mode.
To select the FM broadcast band:
➥ Push [MULTI(↔)] one or more
times until “WFM” appears in the
display, then rotate [DIAL] to select
a frequency; or,
➥ Select a frequency with the digit keys directly.
•“WFM” automatically appears when a frequency in the range
76–107.995 MHz is input.
☞ NOTE: When pushing [PTT], “OFF” appears indicating the
frequency and mode are outside the permitted range.
■ Air band reception (Asia, USA ver.)
The transceiver can receive frequencies reserved for com-
mercial/private aircraft and ground support. These are in the
range 118–135.995 MHz and are in AM receive mode.
To select the air band:
➥ Push [MULTI(↔)] one or more
times until “AM” appears in the dis-
FMW
play, then rotate [DIAL] to select a frequency; or,
➥ Select a frequency with the digit keys directly.
•“AM” automatically appears when a frequency in the range
118–135.995 MHz is input.
☞ NOTE: When pushing [PTT], “OFF” appears indicating the
frequency and mode are outside the permitted range.
■ Narrow FM*
operation (Europe, France, Italy ver.)
➀ Push [MULTI(↔)] one or more
times to select the 144 MHz band.
➁ Push [MULTI] for 1 sec. to enter set
mode.
➂ Push [MULTI(↕)] one or more times
to display “MO,” if necessary.
➃ Push [MULTI(↔)] (or [DIAL]) to tog-
gle narrow FM operation on and
off.
•“FM” appears when narrow FM
operation is on.
➄ Push [VFO] to exit set mode and return to regular opera-
tion.
☞ *NOTE: FM narrow operation can be set for individual
memory channels or in VFO mode; narrow FM affects
AM
USING
SET MODE
FM
Narrow FM is on.
Narrow FM is off.
