Icom IC-T81A [29/40] Subaudible tone operation
![Icom IC-T81A [29/40] Subaudible tone operation](/views2/1074452/page29/bg1d.png)
25
9
SUBAUDIBLE TONE OPERATION
■ Tone squelch
The tone squelch opens only when receiving a signal con-
taining a matching subaudible tone. You can silently wait for
calls from group members using the same tone.
➀ Set the operating frequency.
➁ Set the desired subaudible tone in set mode (see right).
➂ Push [MULTI] to enter subaudible tone mode.
•“T” appears; if “D” appears, push [MULTI(↕)] to select “T.”
➃ Push [MULTI(↔)] (or rotate [DIAL]) one or more times until
“TSQL” appears; then push [VFO] to exit set mode.
➄ When the received signal includes a matching tone,
squelch opens and the signal can be heard.
• When the received signal’s tone does not match, tone squelch
does not open, however, the S-indicator shows signal strength.
• To open the squelch manually, push and hold [SQL].
➅ Operate the transceiver in the normal way.
➆ To cancel the tone squelch, repeat steps ➂ and ➃ so that
no tone indicator appears.
☞ NOTE: Some tone frequencies may receive interference
from adjacent tone frequencies.
✔ CONVENIENT
Store subaudible tone frequencies and tone squelch on/off
settings in memories (call) for easy recall.

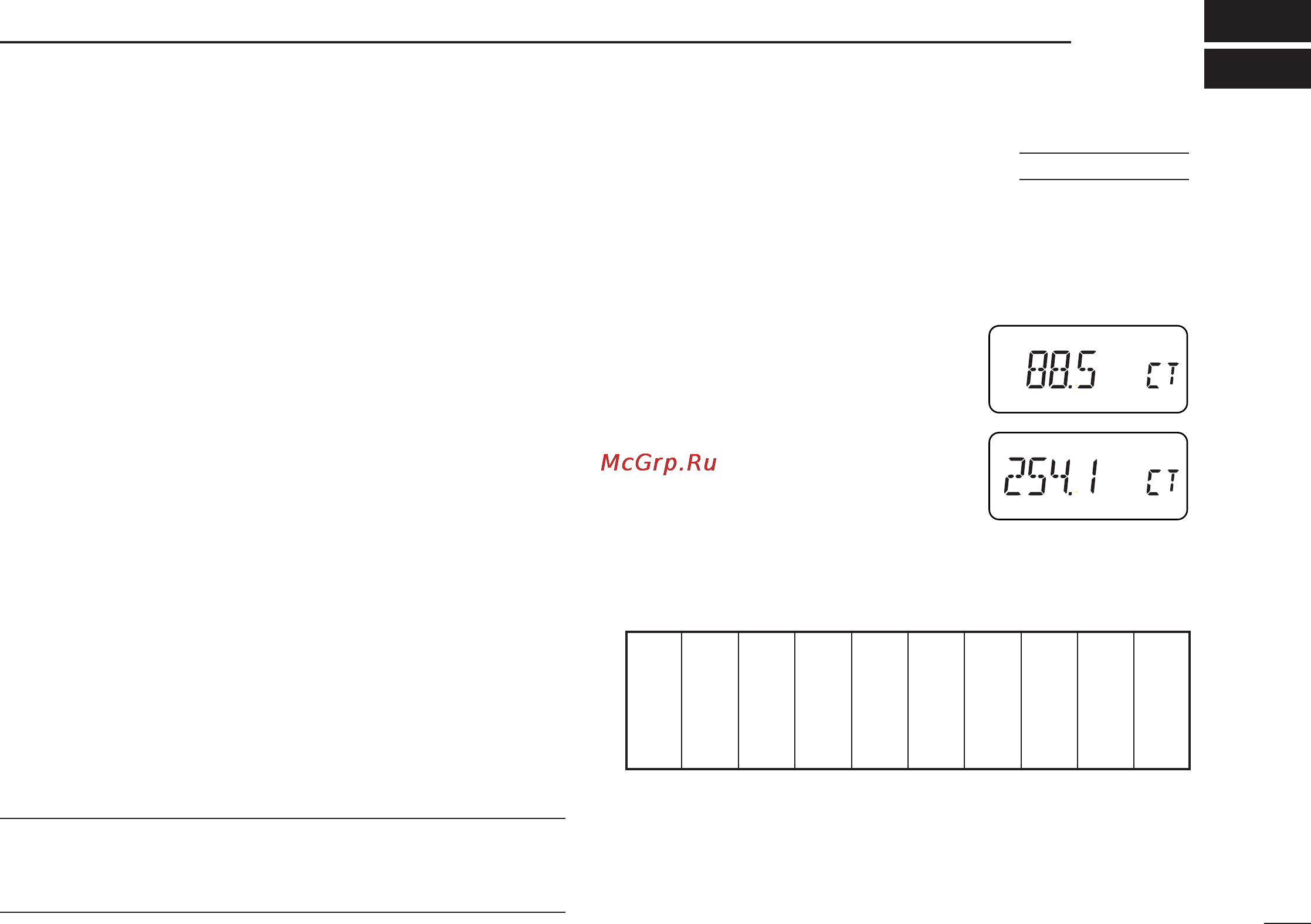

D Setting subaudible tones for
tone squelch operation (CTCSS* tones)
Separate tone frequencies can be set for tone squelch oper-
ation than for repeater operation (the same range of tones is
available—see below).
➀ Select VFO or a memory channel.
➁ Push [MULTI] for 1 sec. to enter set
mode.
➂ Push [MULTI(↕)] one or more times
until “CT” appears.
➃ Rotate [DIAL] (or push
[MULTI(
↔)]) to select the a sub-
audible tone.
➄ Push [VFO] to program the se-
lected tone and exit set mode.
Available subaudible tone frequencies (unit: Hz)
67.0 79.7 94.8 110.9 131.8 156.7 171.3 186.2 203.5 229.1
69.3 82.5 97.4 114.8 136.5 159.8 173.8 189.9 206.5 233.6
71.9 85.4 100.0 118.8 141.3 162.2 177.3 192.8 210.7 241.8
74.4 88.5 103.5 123.0 146.2 165.5 179.9 196.6 218.1 250.3
USING
SET MODE
T SQL
T SQL
*CTCSS stands for continuous tone coded squelch system.
IC-T81A/E Manual-(1) 01.12.5 6:56 PM Page 25 (1,1)
