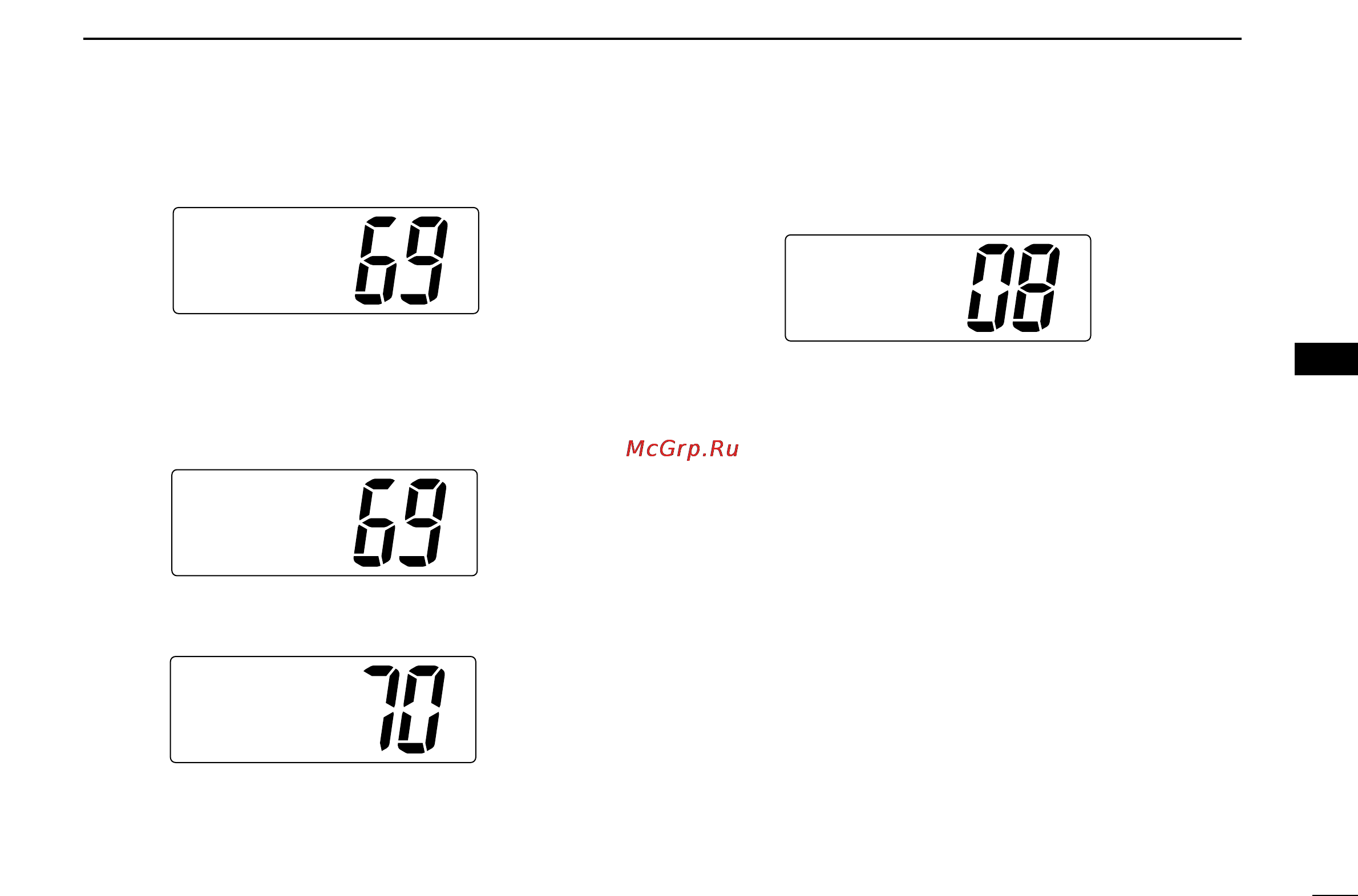

Icom IC-M502A [29/74] Dsc operation
![Icom IC-M502A [29/74] Dsc operation](/views2/1074665/page29/bg1d.png)
23
6
DSC OPERATION
6
r Rotate
[
[
CHANNEL
CHANNEL
]
] to select an acknowledgement
“Able” or “Unable,” push
[
[
DSC/ENT
DSC/ENT
]
].
t If you select “Unable,” select the reason by rotating
[
[
CHANNEL
CHANNEL
]
], push
[
[
DSC/ENT
DSC/ENT
]
].
• ‘No reason given,’ ‘Congestion,’ ‘Busy,’ ‘Queue indication,’ ‘Sta-
tion Barred,’ ‘No operator,’ ‘Operator Unavailable,’ ‘Equipment
Disable,’ ‘Channel Unable’ and ‘Mode Unable’ are available.
y Push
[
[
DSC/ENT
DSC/ENT
]
] to transmit the acknowledgement to the
selected station.
u After the Individual acknowledgement has been transmit-
ted, the display changes to the channel specified by the
calling station, automatically.
INDVACK
Completed
ToCall,
ToCancel
[other]
[DSC/ENT]
SelReason
Congestion
Busy
˘NoReason
Comply
Unable
˘Able
