HM-127 REMOTE-CONTROL MICROPHONE
■ HM-127 supplied accessories

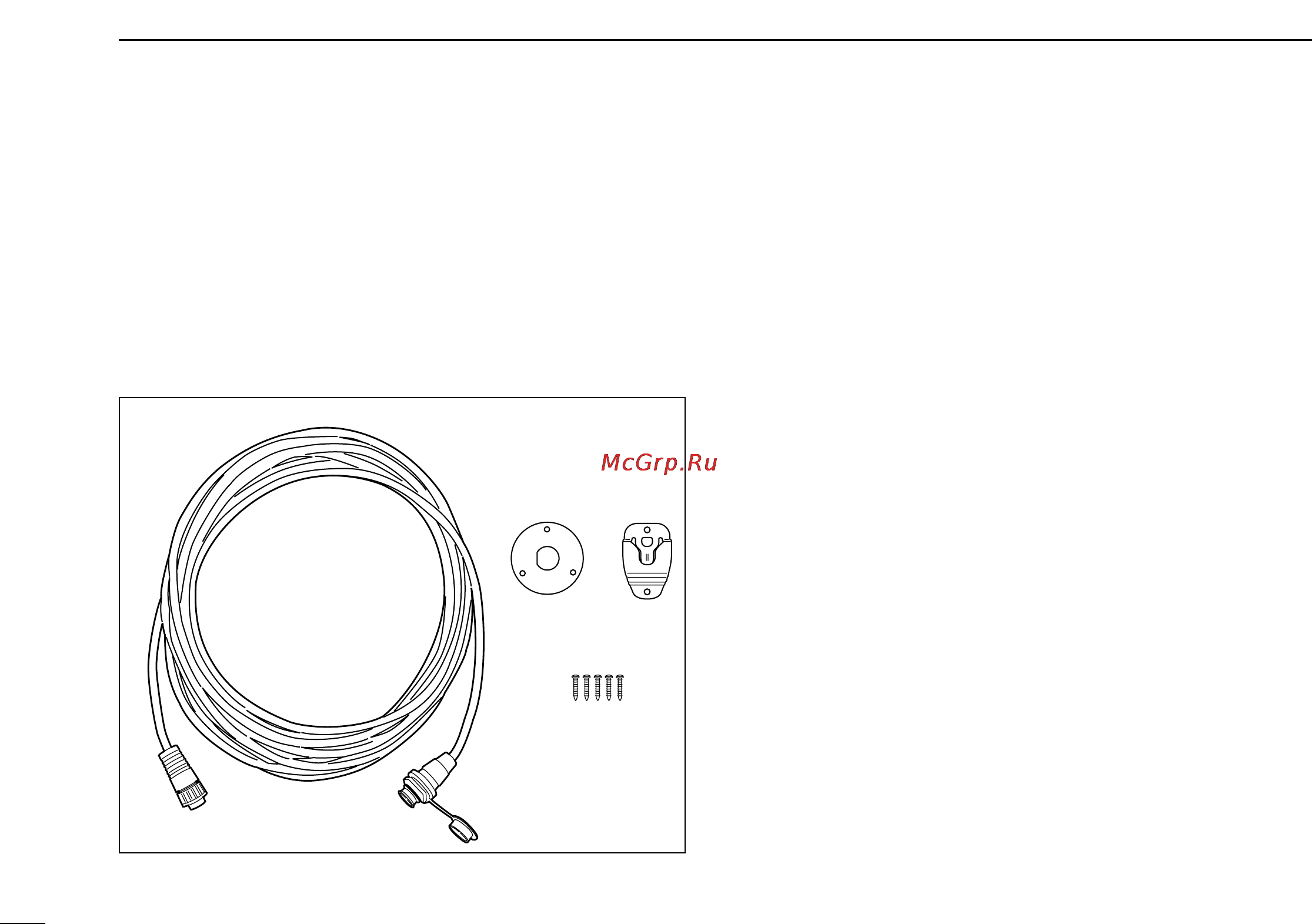

Accessories included with the HM-127: Qty.
q Connection cable (OPC-1000: 6 m; 20 ft) ...................... 1
w Mounting base ................................................................ 1
e Microphone hanger ........................................................ 1
r Screws (M3 × 16; tapping) ............................................. 5
